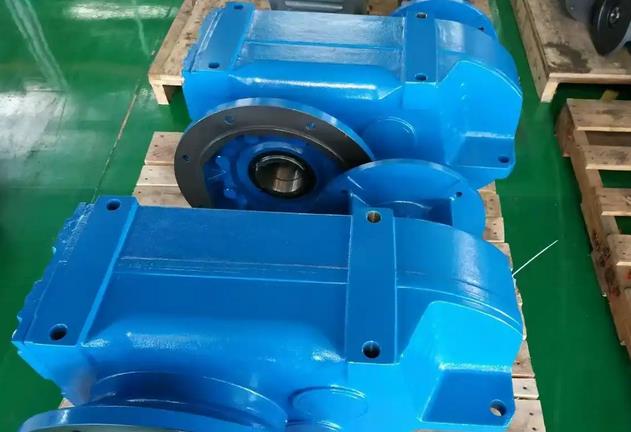

Structural characteristics and working principle of B310VHC-71-HX-ZS11518 industrial gearbox with orthogonal axis

The structural characteristics and working principle of the B310VHC-71-HX-ZS11518 industrial gearbox with orthogonal axis are as follows:

Structural features:

Gear transmission: Using high-quality gear materials, precision machining and heat treatment, it has the characteristics of high load-bearing capacity, low noise, and high efficiency.

Box structure: The box is made of high-strength cast iron or steel plate welded together, with good rigidity and stability, and can withstand large loads and impact forces.

Sealing performance: Advanced sealing technology is adopted to ensure that the gearbox will not leak oil during operation, improving the reliability and service life of the gearbox.

Installation method: There are multiple installation methods available, such as base installation, flange installation, hollow shaft installation, etc., which can be selected according to different usage scenarios and requirements.

working principle:

The working principle of B310VHC reducer is to reduce the speed of the input shaft to the required speed of the output shaft through gear transmission, while increasing the torque of the output shaft. Specifically, when the input shaft rotates, it drives the gears in the gear transmission system to rotate, and through the meshing effect of the gears, the power is transmitted to the output shaft, thereby achieving the purpose of deceleration and torque increase.
