Why do printing equipment often use RF77D132M4-7.5-5.2 reducers

The RF77D132M4-7.5-5.2 reducer is commonly used in printing equipment because its performance parameters, structural characteristics, and working conditions are highly matched with the requirements of the printing equipment. Specific analysis can be conducted from the following aspects:

1. The core requirement for power and speed ratio adaptation in printing transmission

This model is compatible with a 7.5kW 4-pole motor (132M base, rated speed of approximately 1450r/min), with a reduction ratio of 5.2. The calculated output speed is approximately 279r/min. This speed range perfectly fits the core transmission links of printing equipment, such as the paper feeding roller of offset printing machines, the material roll traction roller of gravure printing machines, and the plate cylinder drive of flexographic printing machines. This type of mechanism requires stable power at medium speed and sufficient torque. A power of 7.5 kW is sufficient to drive multiple sets of roller shafts to operate synchronously. A small speed ratio of 5.2 can reduce the vibration of the motor during high-speed operation and avoid efficiency loss caused by excessive deceleration, ensuring the accuracy of printing registration.

2. High precision and low noise characteristics of hard tooth surface transmission

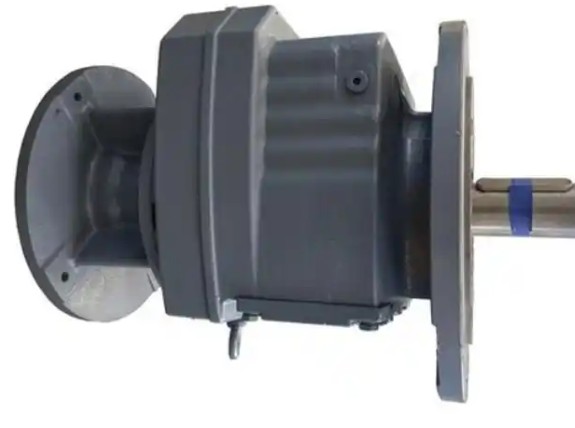

RF77 belongs to the R series hard tooth helical gear reducer. The gears are treated with 20CrMnMo carburizing and quenching, with a hardness of HRC58-62, and have undergone precision grinding. Printing equipment requires extremely high transmission accuracy, and even small tooth clearances or transmission errors can lead to inaccurate printing and ghosting of printed materials; At the same time, the printing workshop needs to maintain a low-noise environment to avoid interfering with the judgment of operators. The helical gears of this reducer mesh smoothly, with high transmission accuracy and operating noise controlled between 65-70dB (A), fully meeting the requirements of printing technology for accuracy and environment.

3. Compact structure adapted to the spatial layout of printing equipment

The machine base size of RF77 belongs to small and medium-sized specifications, matched with flange or horizontal installation structure, with small volume and light weight (the whole machine including the motor weighs about 120-130kg). The internal body of the printing equipment needs to integrate multiple systems such as paper feeding, printing, drying, and winding, making the space very compact. The compact design of this reducer can be flexibly installed inside the equipment rack without occupying too much space, and it is also easy to connect with transmission components such as rollers and chains.

4. High overload capacity to cope with instantaneous impact of printing conditions

During the printing process, there may be paper jamming in the paper feeding stage and load fluctuations caused by changes in the diameter of the material roll in the winding stage, which can generate instantaneous impact loads. The housing of RF77 reducer is made of HT250 cast iron, which has strong rigidity and good vibration resistance. The hard tooth surface design of the gear can withstand 1.5-2 times of short-term overload, and will not cause gear tooth breakage or shaft deformation due to impact, ensuring the continuous and stable operation of printing equipment and reducing downtime failure rate.
