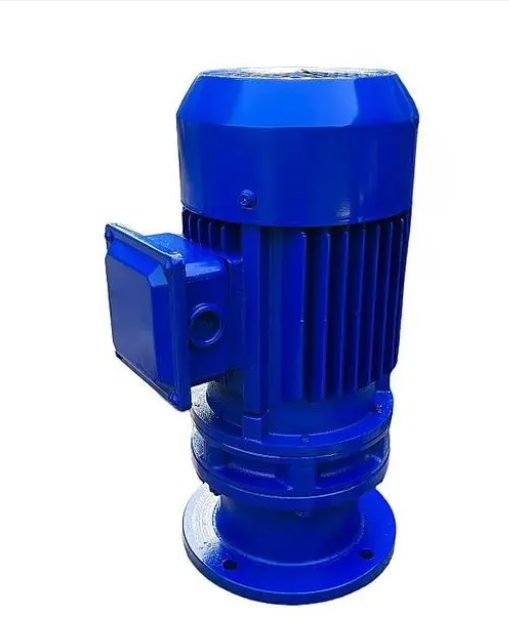

Planetary cycloidal pinwheel reducer XLED42-1225-0.75KW two-stage vertical reducer

In the field of modern industrial transmission, planetary cycloidal pinwheel reducers have become the core power transmission components in many industries due to their unique advantages. This article aims to provide a detailed introduction to the characteristics, applications, design principles, and maintenance of the planetary cycloidal pinwheel reducer XLED42-1225-0.75KW two-stage vertical reducer, in order to help readers gain a deeper understanding of this industrial transmission equipment.
1、 Product Overview
XLED42-1225-0.75KW two-stage vertical planetary cycloidal pinwheel reducer is a high-performance reducer that adopts the principle of cycloidal pinwheel transmission. This reducer achieves efficient energy transfer and torque output through the structural design of planetary gear system, while also possessing high precision and stability. Its unique dual stage design enables the gearbox to maintain good performance under both high-speed and low-speed conditions.
2、 Product Features
1. Compact structure: XLED42-1225-0.75KW two-stage vertical planetary cycloidal pinwheel reducer adopts modular design, compact structure, easy installation, small space occupation, suitable for various occasions with limited space.
2. High transmission efficiency: The principle of cycloidal pinwheel transmission enables the reducer to achieve low energy loss while transmitting torque, thereby improving transmission efficiency.
3. High torque: The dual stage design enables the gearbox to perform excellently in terms of output torque, meeting the needs of various heavy-duty conditions.
4. Good stability: The structural design of the planetary gear system enables the gearbox to have high stability during operation, reducing vibration and noise.
5. Long service life: High quality materials and precise processing technology ensure the long service life of the reducer, reducing maintenance costs.
3、 Application Fields
The XLED42-1225-0.75KW two-stage vertical planetary cycloidal pinwheel reducer is widely used in transmission systems in industries such as metallurgy, mining, chemical, power, building materials, and environmental protection. Especially in situations that require high torque, high precision, and high stability, this reducer plays an irreplaceable role.
4、 Design principles
The working principle of the planetary cycloidal pinwheel reducer is to use the meshing transmission between the cycloidal pinwheel and the planetary gear to achieve deceleration between the input shaft and the output shaft. In the XLED42-1225-0.75KW two-stage vertical planetary cycloidal pinwheel reducer, the input shaft transmits power to the second stage reduction part after first stage reduction, and then through the meshing transmission between the cycloidal pinwheel and the planetary gear, the final reduction output is achieved. This transmission method has the characteristics of high transmission ratio, high transmission efficiency, and high torque.
5、 Maintenance and upkeep
In order to ensure the normal operation and extend the service life of XLED42-1225-0.75KW two-stage vertical planetary cycloidal pinwheel reducer, regular maintenance is required. Here are several maintenance suggestions for key points:
1. Regularly check the oil level: The oil level of the reducer should be kept within the normal range, as being too high or too low can affect the performance of the reducer.
