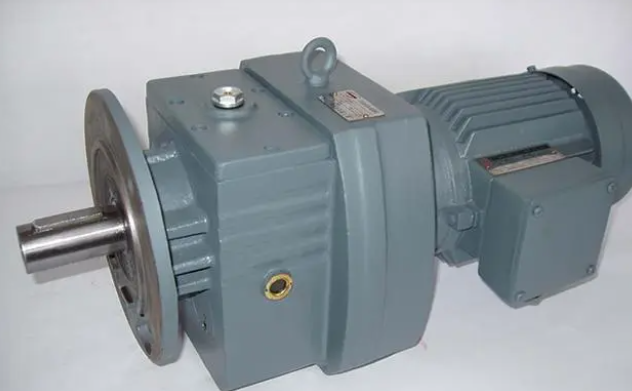

R series RXF single-stage flange-mounted coaxial helical gear reduction motor for metallurgical refining machinery and equipment

RXF coaxial helical gear reduction motor specifications and models:
RXF57-Y0.55-4P-35.07-M1-90°
RXF57-Y0.55-4P-37.30-M1-90°
RXF57-Y0.55-4P-43.30-M1-90°
RXF57-Y0.55-4P-48.23-M1-90°
RXF57-Y0.55-4P-53.22-M1-90°
RXF57-Y0.55-4P-57.29-M1-90°
RXF57-Y0.55-4P-64.85-M1-90°
RXF57-Y0.55-4P-69.23-M1-90°
RXF57-Y0.55-4P-80.55-M1-90°
RXF57-Y0.55-4P-89.71-M1-90°
RXF57-Y0.55-4P-98.99-M1-90°
RXF57-Y0.55-4P-106.58-M1-90°
RXF57-Y0.55-4P-120.63-M1-90°
Product Description:
The R series helical gear hard tooth surface reducer is widely used in mechanical equipment, assembly lines, and other industries such as food, pharmaceuticals, chemicals, steel, metallurgy, textiles, plastics, papermaking, etc.
Technical features:
1. The R series gear reducer products have low noise, high energy saving, and low vibration;
2. Select high-quality forged steel materials, steel cast iron box body, and high-frequency heat treatment on the gear surface;
3. After precision machining to ensure shaft parallelism and positioning bearing requirements, the reducer of the helical gear transmission assembly is equipped with various types of motors, combined into electromechanical integration, fully ensuring the quality characteristics of product use;
4. Made in accordance with international technical requirements, it has a high technological content;
5. Space saving, reliable and durable, high overload capacity, power up to 160KW;
6. Low energy consumption, superior performance, and gearbox efficiency of over 95%;
7. The R series can withstand high radial loads.
Performance characteristics:
◆ Small bias output, compact structure, maximizes the use of box space, with the second and third stages in the same box.
Adopting an integral casting box body, the box body structure has good rigidity and is easy to improve the strength of the shaft and the service life of the bearings.
Installation method: Foot installation, flange installation with large and small flanges, easy to choose.
Solid shaft output, with an average efficiency of 96% for the second stage, 94% for the third stage, and an average efficiency of 85% for the R/R combination.
The RM series designed specifically for mixing can withstand large axial and radial forces.
RXF coaxial helical gear reduction motor specifications and dimensions:
If you need an engineer to help with the selection, please leave a message informing the engineer of the parameter requirements.
