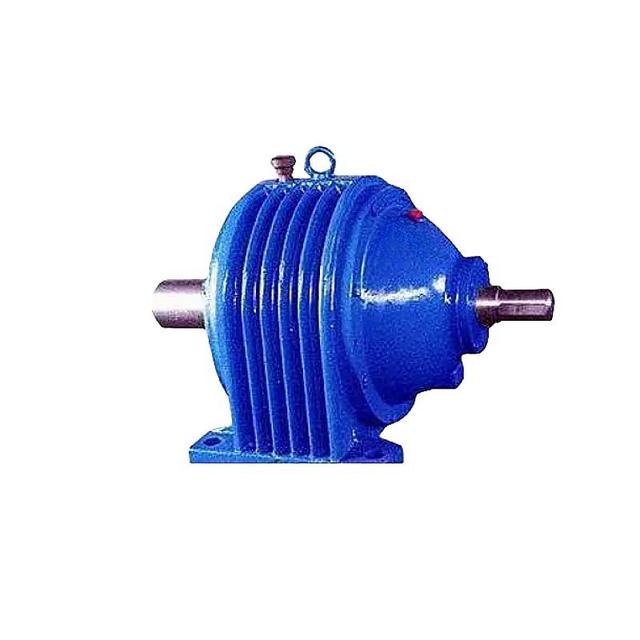

Working principle of NGW122-35.5 planetary gear reducer

Planetary gear reducers are an indispensable part of mechanical equipment and are widely used in various industrial applications, such as mining, metallurgy, power, chemical engineering, building materials, textiles, etc. NGW122-35.5 planetary gear reducer is one of the common models, which has the characteristics of high efficiency, high precision, high reliability, low noise, etc., and has been widely used in many fields.

1、 Structure of NGW122-35.5 planetary gear reducer

The NGW122-35.5 planetary gear reducer mainly consists of sun gear, planetary gear, inner ring gear, planetary carrier, bearings, and other parts. Among them, the sun gear is the driving wheel, the planetary gear and inner ring gear are the passive wheels, the planetary carrier is used to support the planetary gear, and the bearings are used to support the planetary carrier and inner ring gear.

2、 Working principle of NGW122-35.5 planetary gear reducer

The working principle of NGW122-35.5 planetary gear reducer is to use the meshing transmission between the sun gear and the planet gear to transfer the rotational power of the sun gear to the planet gear and the inner ring gear, thereby achieving the effect of deceleration. The planetary gear, supported by the planetary carrier, can rotate around the sun gear, achieving a multi-level deceleration effect.

3、 Characteristics of NGW122-35.5 planetary gear reducer

1. High efficiency: The transmission efficiency of NGW122-35.5 planetary gear reducer can reach over 90%, with high energy conversion efficiency.

2. High precision: The transmission accuracy of NGW122-35.5 planetary gear reducer is high, which can meet the requirements of many high-precision applications.

3. High reliability: The design of NGW122-35.5 planetary gear reducer is reasonable and the manufacturing process is advanced, therefore it has high reliability.

4. Low noise: The transmission process of NGW122-35.5 planetary gear reducer has low noise, which can meet many applications with high noise requirements.

4、 Application of NGW122-35.5 planetary gear reducer

NGW122-35.5 planetary gear reducers are widely used in many fields, such as mining machinery, metallurgical equipment, power equipment, chemical equipment, building materials equipment, textile equipment, etc. In these fields, NGW122-35.5 planetary gear reducers are used to drive various equipment, such as driving devices for conveyor belts or conveyors, driving devices for various machinery, steering devices for various vehicles, driving of oil drilling rigs, and driving of various specialized equipment.

5、 Maintenance and upkeep of NGW122-35.5 planetary gear reducer

To ensure the normal operation and service life of the NGW122-35.5 planetary gear reducer, regular maintenance and upkeep are required. This includes regularly checking the quality and quantity of lubricating oil, regularly checking the wear of bearings, and regularly checking the meshing of gears. In addition, it is also necessary to pay attention to preventing debris from entering the interior of the gearbox to avoid damage to the gearbox.

In summary, NGW122-35.5 planetary gear reducer is a high-efficiency, high-precision, highly reliable, and low-noise transmission equipment widely used in various industrial fields. During use, it is necessary to pay attention to maintenance and upkeep to ensure its normal operation and service life.
