How to optimize the heat dissipation design of KAF37-44.63-0.8KW reducer

Optimization Scheme for Heat Dissipation Design of KAF37-44.63-0.8KW Reducer

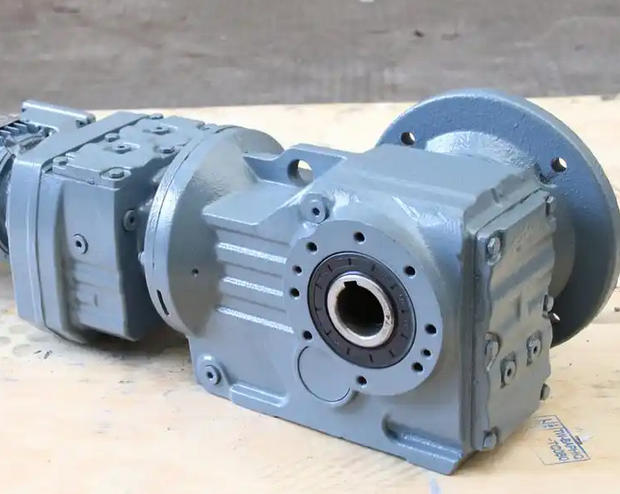

The KAF37 series reducer is a small helical gear bevel gear reducer (0.8KW power, 44.63 transmission ratio), and its heat dissipation pain points mainly stem from heat accumulation caused by compact structure, insufficient heat dissipation efficiency of lubricating medium, and environmental conditions. The following optimization solutions are proposed from five core dimensions, taking into account structural adaptability, cost controllability, and engineering practicality:

1、 Optimize the box structure and heat dissipation area (passive heat dissipation upgrade)

The KAF37 gearbox has a small body volume and limited native heat dissipation area, requiring structural improvements to enhance passive heat dissipation capabilities. Firstly, an annular heat dissipation rib is added on the outer side of the box, with an axial uniform distribution design (spacing of 8-12mm, height of 15-20mm), made of the same material as the box (HT200 gray cast iron), which can increase the heat dissipation area by 30% -40% while avoiding dust accumulation caused by overly dense heat dissipation ribs affecting heat dissipation. Secondly, optimize the distribution of wall thickness in the box body by reducing the wall thickness from the original 8-10mm to 6-8mm (while ensuring strength) in areas where heat is concentrated, such as the bearing seats at the input and output ends, to reduce heat conduction resistance and facilitate faster transfer of internal heat to the surface of the box body. In addition, the surface of the box can be treated as a sandblasted rough surface to replace the original smooth surface, increase surface emissivity, and improve radiation heat dissipation efficiency, especially suitable for indoor windless environments. Attention: After structural modification, the stiffness of the box body needs to be verified through finite element analysis to avoid increased vibration.

2、 Upgrade lubrication system and medium selection (optimization of core heat dissipation carrier)

Lubricating medium is the key carrier for heat transfer inside the reducer, and it needs to be optimized from the dual dimensions of "medium selection+circulation mode". For a power level of 0.8KW, the original 220 grade gear oil can be replaced with low viscosity synthetic gear oil (such as ISO VG 150 synthetic hydrocarbon gear oil), which has a lower kinematic viscosity (150mm ²/s at 40 ℃, lower than 220mm ²/s of 220 grade oil). The improved fluidity can accelerate the transfer of heat from gears and bearings to the casing. At the same time, the thermal conductivity of synthetic oil (about 0.14-0.15W/(m · K)) is higher than that of mineral oil (0.12-0.13W/(m · K)), and the heat dissipation efficiency is improved by more than 15%. If the equipment operates at full load for a long time, a micro forced lubrication circulation system (flow rate 5-8L/min, power ≤ 30W) can be installed. The hot oil at the bottom of the box is pumped out by a micro gear pump, cooled by an external small radiator (area 0.3-0.5m ²), and then returned to the input end to achieve active heat dissipation, which can reduce the oil temperature by 20-30 ℃. In addition, it is necessary to strictly control the amount of fuel added at the middle position of the oil level mark to avoid excessive oil level causing an increase in stirring resistance and generating additional heat.
