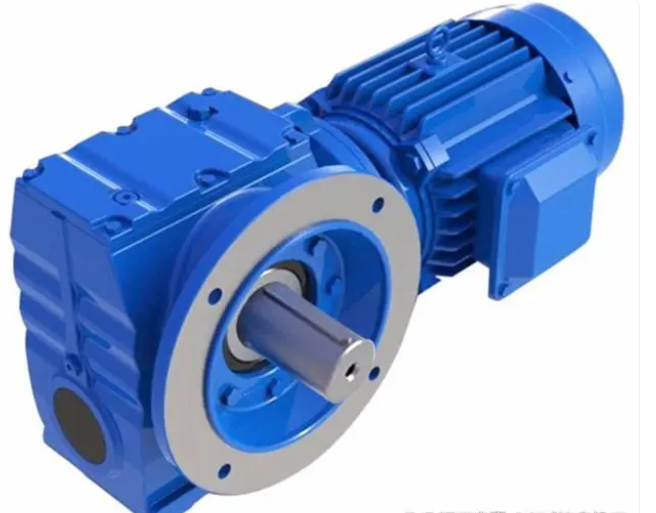

SF series worm gear reducer S/SF34 47 57 reduction motor SF reducer installation dimensions

Performance characteristics of SF series worm gear reducer:
The combination of helical gears and worm gears has a compact structure and a large reduction ratio.
Installation methods: foot installation, hollow shaft installation, flange installation, torsion arm installation, small flange installation.
◆ Input methods: motor direct connection, motor belt connection or input shaft, connection flange input.
Average efficiency: The reduction ratio of 7.5-69.39 is 77%; 70.43-288 is 62%; The S/R combination is 57%.
Combining with the R series can result in a larger speed ratio.
Vertical installation, right angle flange shaft output, helical gear worm gear transmission. Can be equipped with variable frequency motor, brake motor, explosion-proof motor, servo motor, AC motor, DC motor, three-phase motor, single-phase motor between 0.12KW-22KW.
SF series worm gear reducer model:
SF37 reduction motor
SF47 reduction motor
SF57 reduction motor
SF67 reduction motor
SF77 reduction motor
SF87 reduction motor
SF97 reduction motor
Installation dimensions of SF series worm gear reducer:
SF37 reducer size: output shaft+key 22.5 (customizable), height 143 * width 172 (with output shaft), length 143
SF47 reducer size: output shaft+key 28 (customizable), height 165 * width 191 (with output shaft) * length 171
SF57 reducer size: output shaft+key 33 (customizable), height 189 * width 232 (with output shaft), length 187
SF67 reducer size: output shaft+key 38 (customizable), height 236 * width 270.5 (with output shaft), length 241
SF77 reducer size: output shaft+key 48.5 (customizable), height 301 * width 351 (with output shaft), length 287
SF87 reducer size: output shaft+key center 64 (customizable) height 368 * width 432 (with output shaft) * length 340
SF97 reducer size: output shaft+key center 74.5 (customizable) height 455 * width 500 (with output shaft) length 420
