SWX hard tooth surface coaxial helical gear reducer roller frequency conversion speed motor three-phase asynchronous motor

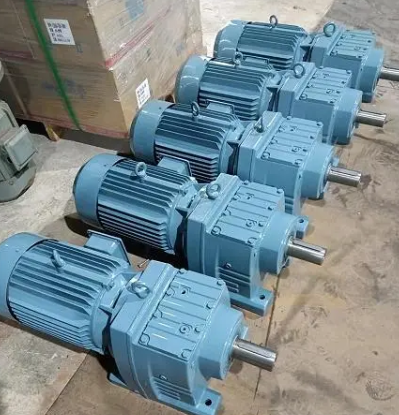

SWX hard tooth coaxial helical gear reducer roller variable frequency speed motor three-phase asynchronous motor R77-Y-0.37-4P-92.97-M1-0 °
The R series helical gear reducer is a new type of reduction transmission device composed of multiple pairs of axially arranged helical gears. This device is optimized according to international standards and has the advantages of high precision, high efficiency, fine gear ratio grading, wide range, large torque transmission, reliable performance, low noise, flexible installation, and easy use and maintenance. It is widely used in various low-speed transmissions and is a universal basic component of mechanical transmission.
Performance characteristics of R series helical gear reducer:
1. Small offset output, compact structure, maximizing the use of box space, with the second and third stages in the same box;
2. Adopting an integral cast box body with good structural rigidity, it is easy to improve the strength of the shaft and the service life of the bearings;
3. Installation method: foot pedal installation, flange installation, easy to choose;
For solid shaft output, the average efficiency of the second stage is 96%, the third stage is 94%, and the R-R combination is 85%.
The RM series with mixing design can withstand significant axial and radial forces.
Technical parameter range:
1. Input power: 0.12-160 kW;
2. Reduction ratio: 1.37-21342;
3. Output torque: up to 18000 Nm
Application fields of R series helical gear reducer:
The R series helical gear reducer can be combined with our company's other reducers and mechanical continuously variable transmissions to achieve high reduction ratio transmission and continuously variable transmission. It is an ideal choice for power generation in various industries, especially in industries such as ceramics, beverages, food, packaging, electronics, leather, chemical, textile, woodworking, etc
