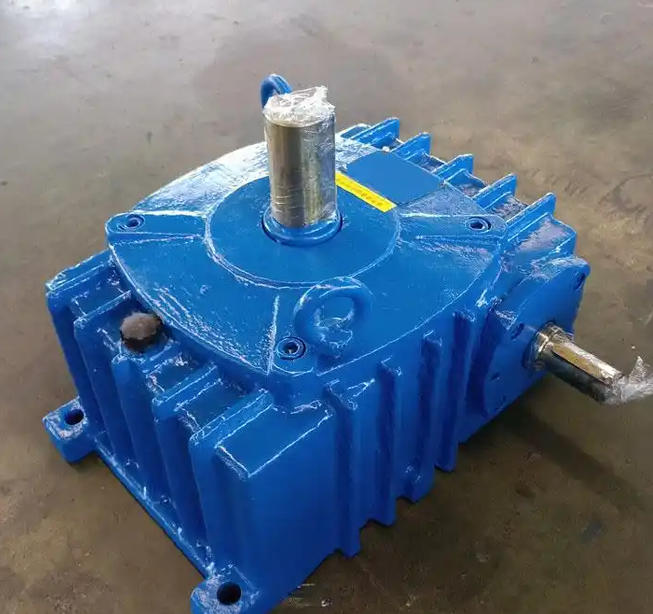

How to Protect Your WPO40-10 Worm Gear Reducer from Load Fluctuations

The core strategy for protecting WPO40-10 worm gear reducers against load fluctuations relies on a three-tier mechanism: warning, current limiting, and buffering. This approach effectively prevents impact damage through electrical safeguards, mechanical protection, and operational optimization.
1. Electrical Protection: Real-Time Monitoring and Overload Warning

    Motor Overload Protection: Install a motor overload protector (such as a thermal or electronic overload relay). Set the protection threshold to 1.1–1.3 times the rated current to automatically cut off power if the load exceeds standard limits.
    Real-Time Monitoring: Equip the system with current/torque monitoring instruments to display operating parameters in real time. If load fluctuations exceed 10% of the rated value, trigger audio and visual alarms to provide early warnings of abnormal conditions.
    Soft Starting: For applications requiring frequent starts and stops, install a soft starter or variable frequency drive (VFD). This allows for smooth motor speed adjustment, reduces starting impact loads, and prevents sudden current surges.

2. Mechanical Protection: Physical Buffering and Overload Safeguards

    Elastic Couplings: Install elastic couplings (e.g., jaw/spider couplings or rubber couplings) at the input or output shafts to absorb shock torque caused by sudden load changes and buffer transmission impacts.
    Torque Limiters: Install a torque limiter (safety clutch) with a disengagement threshold set at 1.5–2 times the rated torque. This device will automatically disengage during an overload to protect the worm gear and shaft system from damage.
    Vibration Damping: Optimize the base and mounting structure by installing rubber damping pads. This helps reduce resonance caused by load fluctuations and minimizes structural stress.

3. Operational Optimization and Maintenance: Source Mitigation and Reliability

    Load Management: Restrict the range of load fluctuations and avoid frequent start-stop cycles or instantaneous overloading. If the supporting equipment experiences uneven material distribution, install buffer silos and uniform feeding devices to stabilize the load.
    Lubrication Maintenance: Conduct regular inspections of the lubrication system. Use specialized worm gear oil and adhere to a strict replacement schedule to ensure adequate lubrication at the meshing surfaces, thereby reducing friction during load variations.
    Component Inspection: Routinely check the condition of bearings, worm gears, and worms. Promptly replace worn components to prevent the amplification of load fluctuation impacts caused by part degradation.
