Cycloid reducer

  • Category:Old website product data
  • Inquiry Send Email
    Description

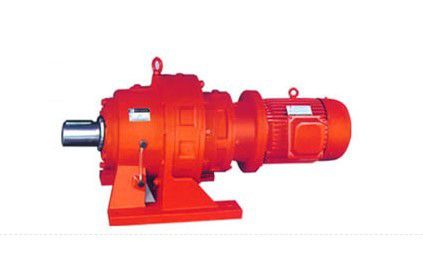

    Product Name: Cycloidal Pinwheel Reducer

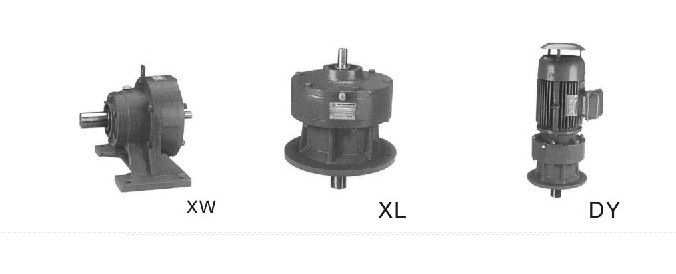

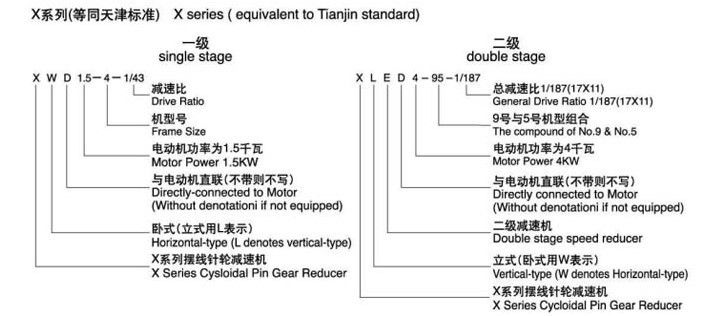

    Product number: xw XWED XL DY

    Product price: inquiry, selection, please call the national free customer service hotline: 4007-200-300

    Detailed description:

    .product description:

    The cycloidal pinwheel reducer is a kind of machine that realizes deceleration according to the principle of less tooth difference planetary transmission and cycloidal pin gear meshing. The machine is divided into horizontal, vertical, double-axis and direct-coupled.

    The preferred equipment for metallurgy, mining, construction, chemical, textile, light industry and other industries.

    . Features:

    1. Cycloid reducer has large reduction ratio and high efficiency: - The stage drive reduction ratio is 9~87, the double stage drive reduction ratio is 121 ~ 5133, the multi-stage combination can reach tens of thousands, and the pin gear meshing sleeve type roll

    Momentary rubbing, the mating surface has no relative sliding, so the -stage deceleration efficiency is 94%.

    2. The needle wheel reducer runs smoothly and has low noise: the number of pairs of teeth that are in contact at the same time during operation is large, the degree of coincidence is large, the operation is stable, the overload capability is strong, the vibration and noise are low, and the models of various specifications are available.

    Noise is small.

    3. Reliable use, long life: Because the main parts are quenched by high-carbon alloy steel, and then refined, and the cycloidal teeth and the pin gear are meshed and transmitted to the teeth to form a rolling friction, friction

    The coefficient is small, so that the biting area has no relative sliding, and the wear is extremely small, so it is durable.

    4. Compact structure and small volume: Compared with other reducers of the same power, the weight is smaller than 1/3. Because it is a planetary transmission, the input shaft and the output shaft are on the same axis.

    May be small size.

    ,Technical Parameters:

    Power: 0.37KW~55KW Torque: 150Nm~ 20000Nm Transmission ratio: Single stage: 9-87 Two stages: 121-7569 Level 3: 2057-658503
