LC hard surface reducer

  • Category:Old website product data
  • Inquiry Send Email
    Description

    Product introduction: This series is a two-stage coaxial hardened spur gear vertical reducer equivalent to HG5-746-78 standard. It can be used in both forward and reverse directions. It is suitable for gear reduction devices of various industries, especially for mixing. The speed reducing device has the characteristics of stable transmission, low noise, high efficiency, strong carrying capacity, compact structure and light weight. Combination package

    This series is a two-stage coaxial hardened spur gear vertical reducer equivalent to HG5-746-78 standard. It can be used in both forward and reverse directions, and is suitable for gear reduction devices of various industries, especially agitation and deceleration devices. The utility model has the characteristics of stable transmission, low noise, high efficiency, strong carrying capacity, compact structure and light weight. The combination range is wide, and it can be equipped with a variety of motors, continuously variable transmissions, frames, couplings and shaft seals to meet the requirements of explosion-proof places and process parameters.


    The series of reducers are available in direct-coupled, non-direct-coupled, and dual-axle. The output shaft has two types of construction: Type I is a sandwich type; Type II is a common cylindrical shaft extension, and the motor mounting type is B5 or V1. The two-axis type does not have a motor, the input power should be based on lubrication to improve the transmission efficiency; the sealing device is added to improve the sealing performance to prevent the oil leakage phenomenon, and the improved body height, installation size and parameters are unchanged.


    Model and mark


    (1) Model


    a. LC type - secondary hardened spur gear vertical reducer;


    b. LC (A) type - improved secondary hardened spur gear vertical reducer.

    尺寸

    机型号
    中心距
    a
    轴径d
    输出轴许用
    转矩/N·m
    轴承间距
    外形尺寸
    G
    F
    D
    B
    H1
    H2
    H
    H'
    H"
    LC75
    75
    30k6
    89.5
    130
    58
    252
    314
    262
    138
    582~622
    720~760
    379
    399
    LC100
    100
    40k6
    328
    160
    66
    316
    398
    326
    137
    165
    681~816
    818~981
    495
    515
    LC125
    125
    50(55)k6
    810
    200
    71
    390
    495
    403
    158
    198
    868~1148
    1026~1346
    595
    625
    LC150
    150
    65(70)m6
    2289
    225
    76
    470
    575
    455
    200
    1090~1370
    1290~1570
    663
    693
    LC200
    200
    80m6
    3283
    252
    95
    600
    775
    559
    220
    250
    1459~1749
    1679~1999
    744
    754
    LC250
    250
    100m6
    5880
    304
    80
    725
    920
    598
    290
    1683~2108
    1973~2398
    863
    883
    LC325
    325
    130m6
    15000
    406
    134
    950
    1255
    850
    390
    2300~2500
    2690~2890
    1230
    1250



    机型号
    外形尺寸
    减速器重量/kg
    带电机重量/kg
    D1
    D2
    D3
    n-d0
    h
    c
    LⅠ
    LⅡ
    M0
    b
    t
    d'
    l'
    b'
    t'
    直联式
    非直联式
    直联式
    非直联式
    LC75
    200H8
    230
    260
    6-φ14
    16
    5
    75
    55
    2-M6
    8
    26
    20
    35
    6
    16.5
    59
    80
    81~96
    102~117
    LC100
    230H8
    260
    290
    6-φ14
    16
    5
    95
    75
    2-M6
    12
    35
    25
    55
    8
    21
    104
    136
    137~184
    169~216
    LC125
    270H8
    305
    340
    8-φ18
    18
    6
    125
    95
    2-M8
    14
    16
    44.5
    49
    35
    60
    10
    30
    184
    230
    242~394
    288~440
    LC150
    320H8
    360
    400
    8-φ18
    20
    6
    145
    115
    2-M10
    18
    20
    58
    62.5
    40
    65
    12
    35
    299
    382
    465~619
    548~702
    LC200
    360H8
    410
    460
    8-φ22
    24
    8
    160
    150
    2-M12
    22
    71
    55
    90
    16
    49.5
    662
    796
    1022~1442
    1156~1576
    LC250
    470H8
    520
    580
    12-φ22
    28
    8
    190
    170
    2-M12
    28
    90
    70
    125
    20
    62.5
    883
    1040
    1413~2123
    1570~2280
    LC325
    680H8
    800
    880
    12-φ35
    32
    10
    230
    210
    2-M12
    32
    119
    90
    170
    25
    81
    2040
    2560
    —
    3525~4010

    注:

    1、当4极电机≥18 .5kW或6极电机≥15kW时,H和H′值按Y系列V1型式电机高度计入,否则按Y系列B5型式电机高度计入。若配用其他系列电机,H和H′值应相应变动。

    2、直联式的小齿轮直接装在电机轴上,非直联式的电机通过弹性联轴器与减速器相连,双轴式不带电机。减速器同轴线输入输出,可正、反两方向旋转。改进型(A型)尺寸与表中相应机型号尺寸相同。

    3、Ⅰ型轴头配夹壳联轴器,Ⅱ型轴头为普通型,轴端中心配有螺孔M0供压入联轴器用。配用联轴器有GT、DF、SF、TK型。

    4、括号内的轴径为可加大输出轴尺寸,需要采用括号内尺寸时应另加说明。

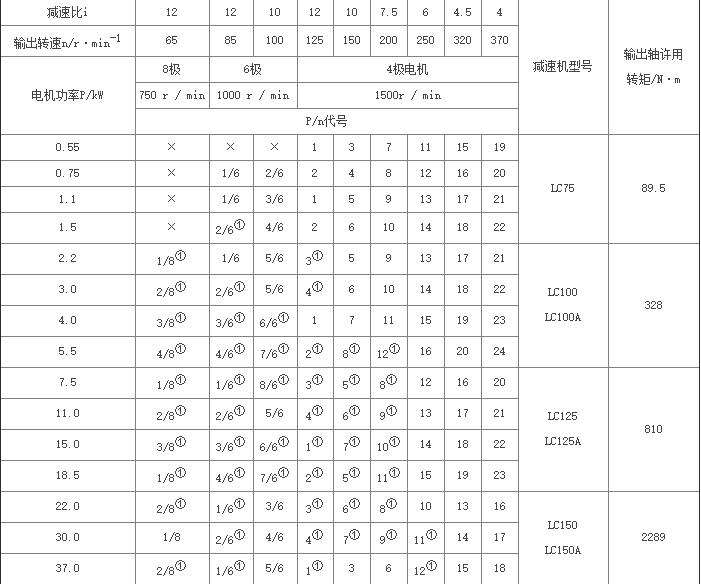

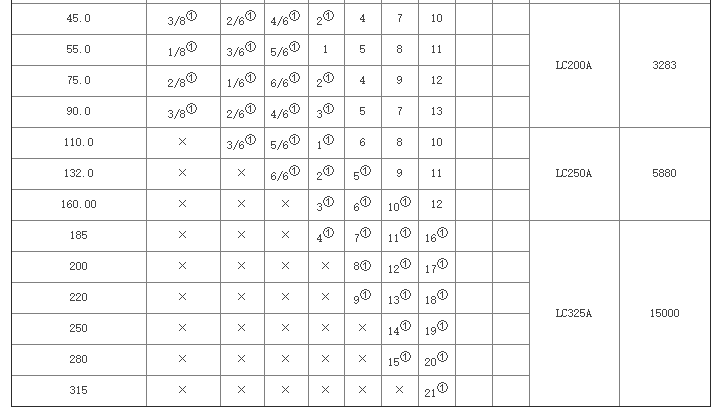

    承载能力
