Cycloid reducer

  • Category:Old website product data
  • Inquiry Send Email
    Description

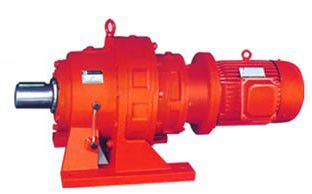

    Product Name: Cycloidal Pinwheel Reducer

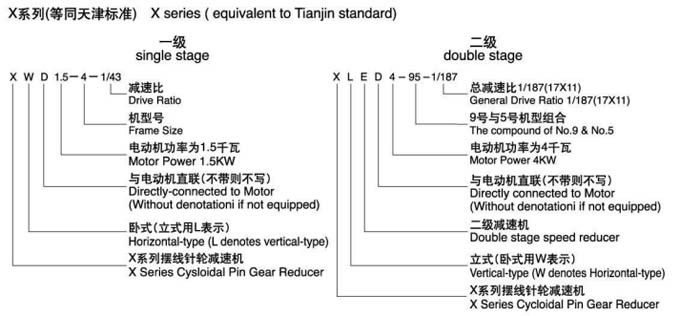

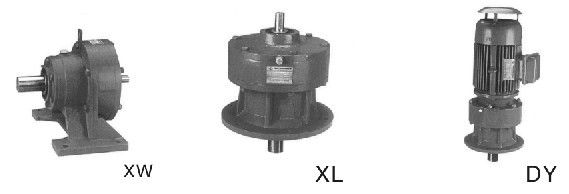

    Product Code: XW XWED XL DY

    Product price: inquiry, selection Please call the national free customer service hotline: 4007-200-300

    Detailed description:

    product description:

        The cycloidal pinwheel reducer is a kind of machine that realizes deceleration according to the principle of less tooth difference planetary transmission and cycloidal pin gear meshing. The machine is divided into horizontal, vertical, double-axis and direct-coupled assembly methods, which are the first choice for metallurgy, mining, construction, chemical, textile, light industry and other industries.

    Performance characteristics:

        1. The cycloid reducer has a large reduction ratio and high efficiency: the first-stage transmission reduction ratio is 9~87, the double-stage transmission reduction ratio is 121~5133, the multi-stage combination can reach tens of thousands, and the pin-tooth meshing-type rolling friction The meshing surface has no relative sliding, so the first-stage deceleration efficiency is 94%.

        2. The needle wheel reducer runs smoothly and has low noise: the number of pairs of teeth that are in contact at the same time during operation is large, the degree of coincidence is large, the operation is stable, the overload capability is strong, the vibration and noise are low, and the noise of various specifications is small.

        3, reliable use, long life: because the main parts are made of high-carbon alloy steel quenching treatment, and then refined, and the cycloidal teeth and the pin gear sleeve meshed to the needle teeth to form a rolling friction, the friction coefficient is small, so that the meshing The area has no relative sliding and wear is extremely small, so it is durable.

        4. Compact structure and small volume: Compared with other reducers of the same power, the weight is smaller than 1/3. Because it is a planetary transmission, the input shaft and the output shaft are on the same axis to obtain the smallest possible size.

     Technical Parameters:

        Power: 0.37KW~55KW Torque: 150N·m~20000N·m Transmission ratio: single stage: 9-87 two stages: 121-7569 Level 3: 2057-658503


    Inquiry Us






    Related Products

    SCWO shaft mounted arc gear worm gear reducer

    SCWO shaft mounted arc gear worm gear reducer

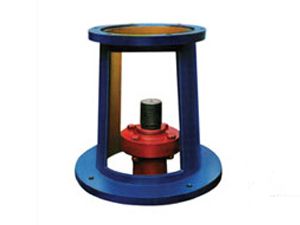

    JAI large flange rack <69 standard>, JAII<69 standard> rack
