The company produces nearly 30 types of over 140 types of agitators, ranging from the most common (including the existing HB5 standard, SB90 standard agitators) to various complex shapes or special purpose agitators. According to H/ t2123-91 standards of various specifications and sizes of the series of manufacturing, or according to the user's production process requirements, for the design and manufacture of various special requirements,The company manufactures nearly 30 types of over 140 agitators, ranging from the most common (including the existing HB5 standard, SB90 standard agitators) to a variety of complex shapes or special purpose agitators. According to H/ t2123-91 standard various specifications of the series of manufacturing, or according to the production process requirements of users, design and manufacture of agitator for a variety of special requirements, special specifications or special USES.
搅拌器型号标注方法：
 | |
| 材料代号 | |
| 搅拌器轴孔径 | |
| 搅拌器的外径， | |
| 搅拌器型式代号 |

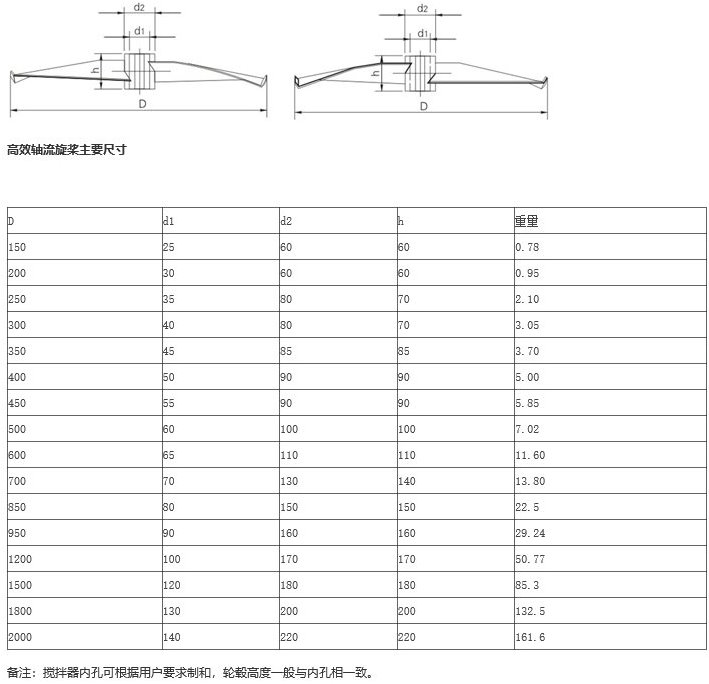

高效轴流旋桨
Effective axial flow type GXL, high efficiency axial flow propeller dextral GXR
This type of agitator is axial flow agitator with high discharge performance and low shear performance. Due to the streamlined design and other structures that reduce small eddies, it reduces the shearing effect and increases the axial flow displacement compared with the general propeller. Due to the use of special composite materials, it not only has higher corrosion resistance, but also reduces the weight of agitator and the friction resistance on the surface, so it also has the effect of energy saving. In low viscosity, corrosive fluid mixing, dispersion, heat transfer, reaction and other processes have good results. Common media viscosity muon < 2000cP, common operation n = 100-500rpm, v = 3-15m/s.
