MBY1000 cylindrical gear reducer JDX/MBY Edge Single Drive Cylindrical GearboxMBY1000 cylindrical gear reducer JDX/MBY Edge Single Drive Cylindrical GearboxMBY1000 cylindrical gear reducer JDX/MBY Edge Single Drive Cylindrical GearboxMBY1000 cylindrical gear reducer JDX/MBY Edge Single Drive Cylindrical Gearbox

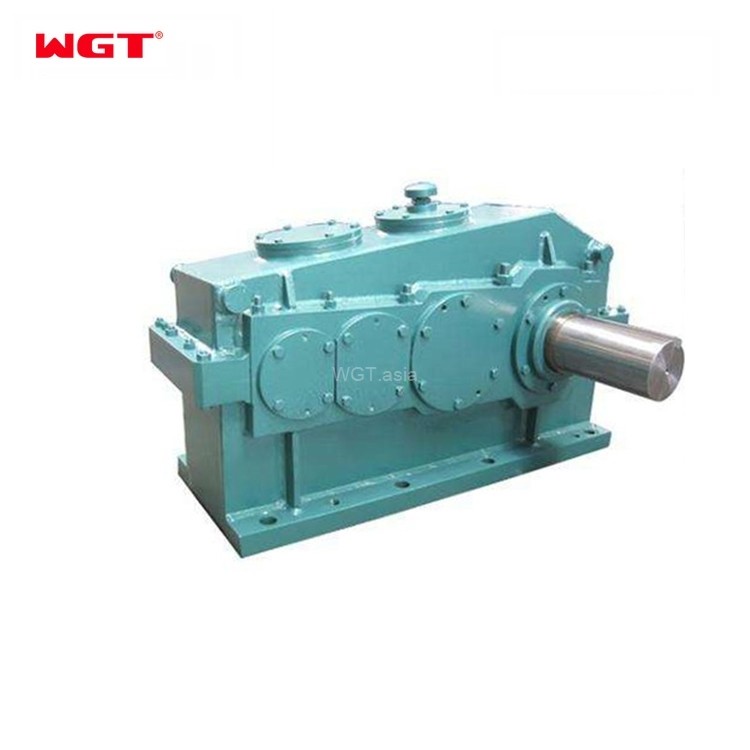

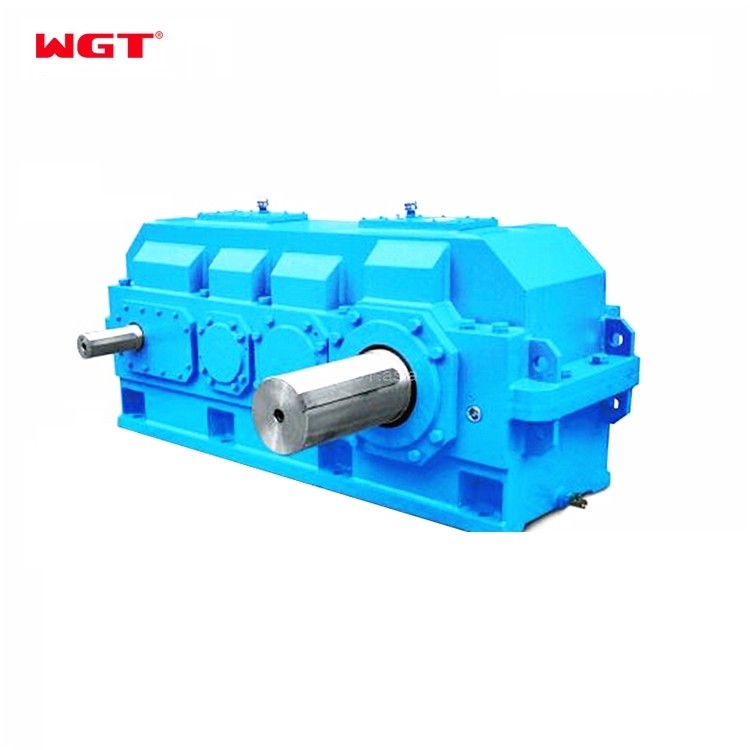

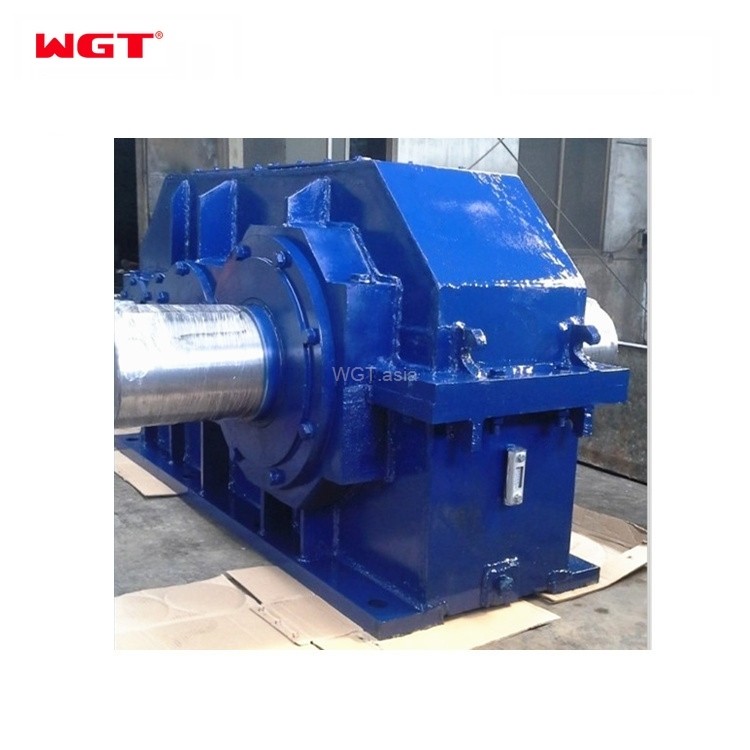

MBY1000 cylindrical gear reducer JDX/MBY Edge Single Drive Cylindrical Gearbox

  • Product Item:MBY1000
  • FOB Reference price:$5000~$50000
  • Port:Packing:Standard export plywood case
  • Port:NINGBO/SHANGHAI PORT
  • Warranty:one year
  • Brand Name:WGT
  • Category:JDX/MBY series gearbox
  • Inquiry Send Email PDF
    Description
    Model

    MBY400,MBY450,MBY560,MBY630,MBY710,MBY800,MBY900,MBY1000,MBY1100

    Chinese speed reducer is widely used in mining machinery, chemical industry,steel metallurgy, light industry,environmental protection, paper making, printing, lifting transport, food industry and so on.
    Main Series Product: R series helical gear reducer, K series spiral bevel gear reducer, NGW, P series planetary reducer, H B series gearbox, Z (ZDY, ZLY, ZSY, and ZFY) serial hard tooth surface cylindrical gear reducer, D (DBY and DCY) serial hard tooth surface cone gear reducer, cycloid reducer, etc. Meanwhile, map sample processing business can be undertaken.


    Feature:

    • Applicable to the metallurgical,power generation,water treatment,construction,chemical,paper,

      textiles,medicine,food and other industries.

    • The transmission efficiency of single-stage can reach up to 98%, two-stage can reach 96%, three-stage can reach 94%.

    • The gear processed by Carburizing & Grinding with high precision.

    • High precision gear, steady transmission, large load capacity

    • Long service life.

    • One Two Three Stage Speed Reducer
    Specification

    High Quality JDX/MBY Series Edge Single Drive Cylindrical Gearbox for cement mill:

    (please contact us for more types & model)


    MBY400,MBY450,MBY560,MBY630,MBY710,MBY800,MBY900,MBY1000,MBY1100

    Model selection:

    Closely using the ideal reduction ratio.

    Reduction ratio = servo motor speed / reducer output shaft speed

    Torque calculation: Torque calculation is very important for the life of reducer, and pay attention to whether the maximum torque value (TP) of acceleration exceeds the maximum load torque of the reducer.

    The applicable power is usually the applicable power of the servo models on the market, the applicability of the reducer is very high, the working coefficient can be maintained above 1.2, but the choice can also be based on their own needs to decide.ZSY series two stage cylindrical transmission reducer for belt conveyor. High Quality JDX/MBY Series Edge Single Drive Cylindrical Gearbox for cement mill.




    Data

    Ratio Input Speed Model
    MBY400 MBY450 MBY500 MBY560 MBY630 MBY710 MBY800 MBY900 MBY1000 MBY1100
    4 1000 496 688 892 1235 1710 2380 3160 4455 5890 7600
    740 368 510 656 915 1270 1764 2340 3300 4365 5630
    600 300 410 530 740 1030 1430 1890 2670 3500 4560
    4.5 1000 418 580 741 1036 1445 2011 2670 3766 4960 6430
    740 310 430 549 768 1070 1490 1980 2790 3676 4765
    600 250 350 445 620 860 1200 1600 2250 2970 3850
    5 1000 357 510 634 886 1240 1710 2280 3226 4250 5485
    740 265 380 470 657 918 1270 1690 2392 3150 4063
    600 215 308 380 530 740 1030 1370 1930 2550 3290
    5.6 1000 300 418 534 745 1040 1445 1917 2700 3585 4540
    740 223 310 396 552 770 1070 1420 2000 2656 3363
    600 180 250 320 450 620 860 1150 1620 2150 2720
    6.3 1000 248 350 440 620 864 1200 1590 2250 2956 3816
    740 184 260 327 460 640 890 1180 1670 2190 2827
    600 150 210 265 370 520 720 950 1350 1770 2280
    7.1 1000 200 290 367 513 702 990 1360 1860 2400 3140
    740 150 215 272 380 520 734 1010 1380 1800 2325
    600 120 175 220 307 420 590 800 1100 1460 1880
