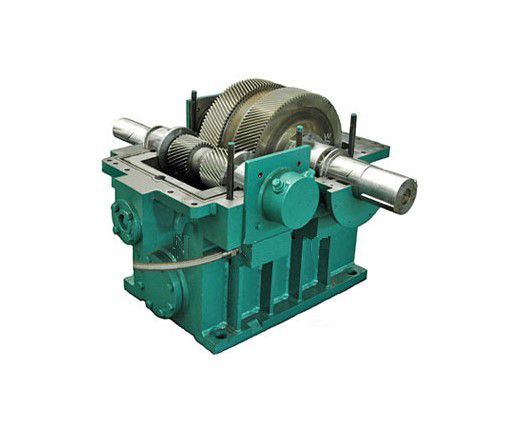

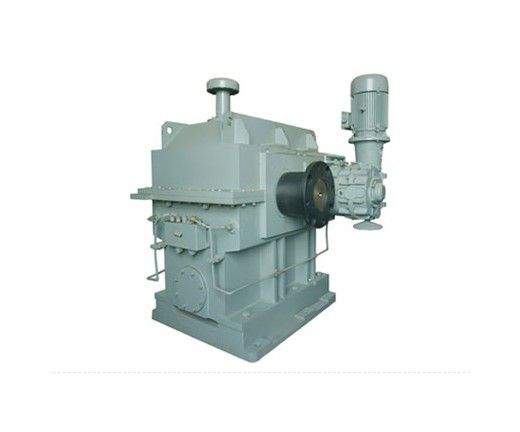

NGSS type high speed gear box outline structure and size
  1. NGSS type high speed gear box outline structure and size
  2. NGSS type high speed gear box outline structure and size

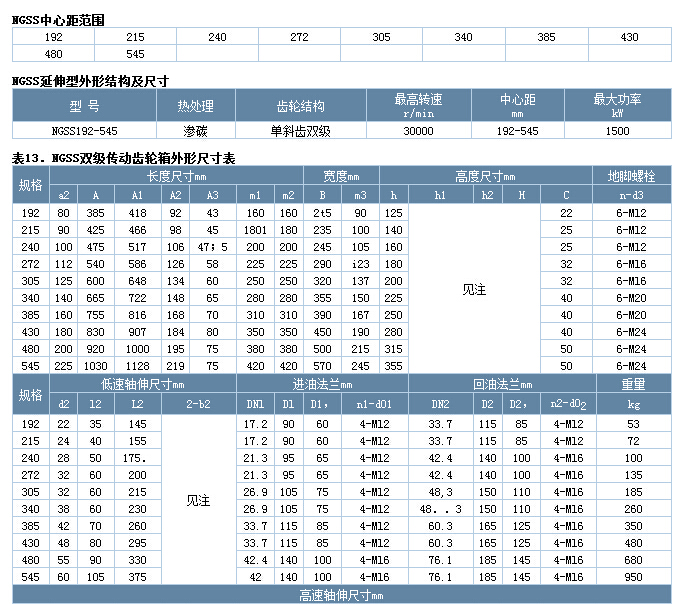

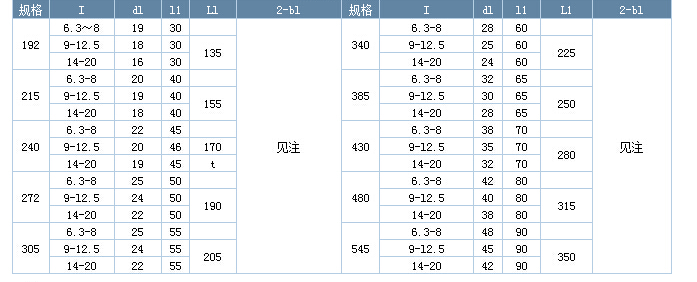

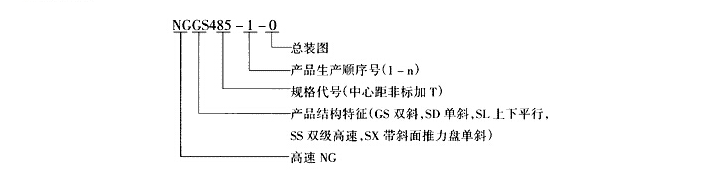

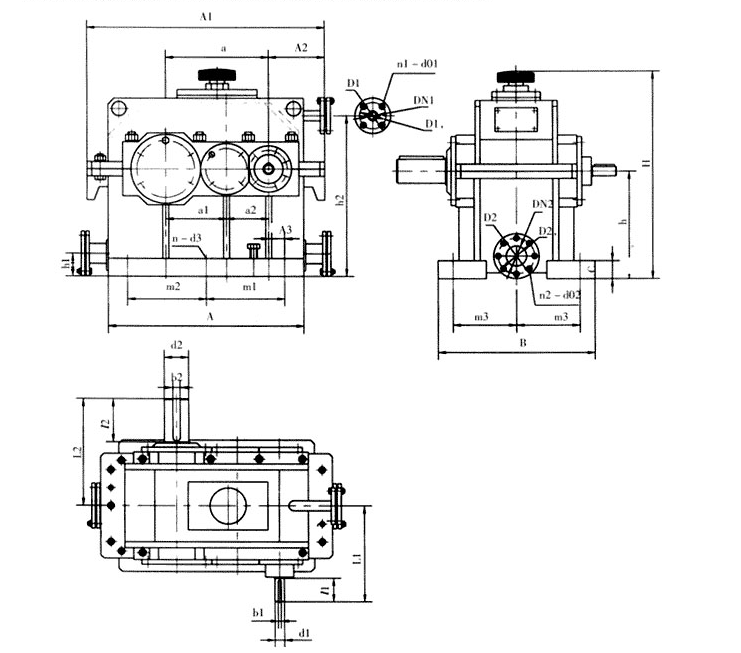

NGSS type high speed gear box outline structure and size

  • Category:Old website product data
  • Inquiry Email
    Description

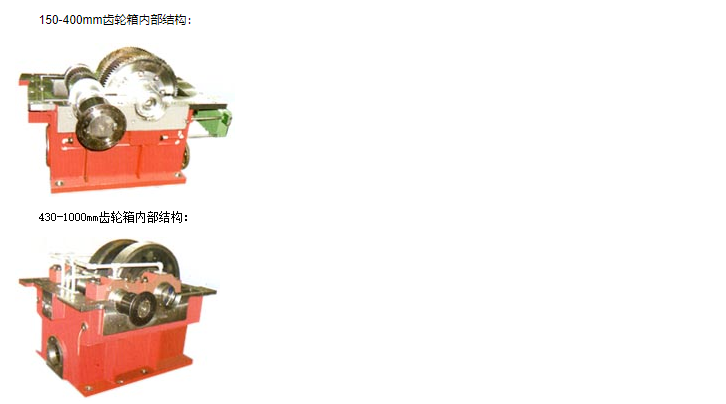

    Basic assembly type and shaft extension form

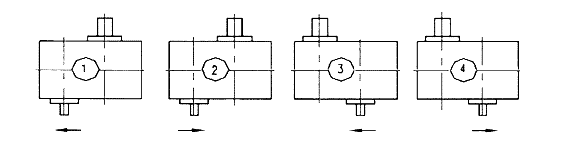

    There are four basic types of installations as shown below:

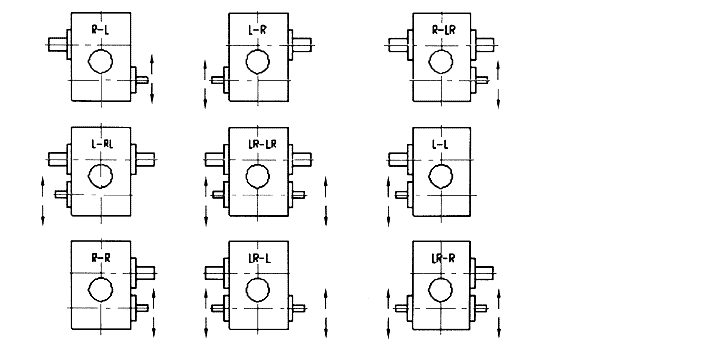

    There are nine types of shaft extensions as shown below:image.png
