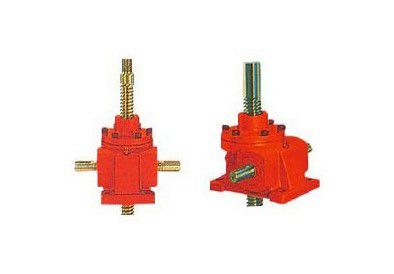

SWL /QWL /JWM worm gear screw lift

Product Name: SWL/QWL/JWM worm gear screw lift

Number of products:SWL12.5510152025355075100

Product price: inquiry, selection, please call the national free customer service hotline: 4007 200-300

Detailed description:

.product manual:

The worm gear screw lift has many functions such as lifting, lowering, propulsion, flipping and various height position adjustments. Widely used in machinery, metallurgy, construction, water conservancy, and chemical

Industry, medical, cultural and other industries.

The worm gear screw lift is a basic lifting component with compact structure, small size, light weight, no noise, safe and convenient, flexible use, high reliability, wide power source, and

Many advantages such as multiple functions and long service life.

It can be used in single or combination, and can accurately control the height of the lifting or pushing according to the program. It can be directly driven by electric motor or other power, or manually.

In order to improve the efficiency and load carrying capacity of the SWL worm gear screw lift, a special and advanced technology has been developed to improve the overall performance of the lift to meet the requirements of our customers.

Screw lifts are available in different construction types and mounting styles. The lifting height can be customized according to user requirements.

. Technical Parameters:

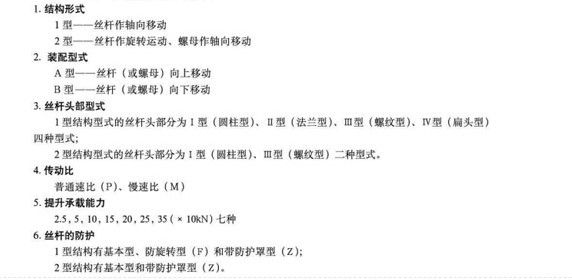

1.Structural type: 1 type one screw for axial movement, 2 type one screw for rotary motion and 擐 mother for axial movement.

2, assembly type: A type - a screw or nut moves up B type a screw / / nut moves down

3. Screw head type: Type 1 screw type head: Type I (cylindrical type), Type I (G flange type), Type m (Threaded type) Type IV (flat head type)

Screw head of type 2 structure: Type I (cylindrical type) m type (thread type)

4. Transmission ratio: ordinary speed ratio (P). Slow speed ratio (M), can be customized according to user requirements (F)

5. Improve the carrying capacity: 1kN, 2.5kN. 5kN. 10kN, 15kN, 20kN, 25kN. 35kN. 50kN, 75kN, 100kN, 120kN

6, the protection of the screw: Type 1 structure: basic type (no protection), anti-rotation type (F), with protective cover (Z), anti-rotation joint shield (FZ) 2 type structure: basic type (no protection)

Note SWL worm gear screw lift has a self-locking function in large speed ratio, but it may invalidate the self-locking function when subjected to large vibration shock load. In this case, please add brake device or prepare.

Move the motor to prevent the object from falling.
