TPU plane envelope toroidal worm reducer

TP type flat envelope toroidal worm reducer product introduction and marking

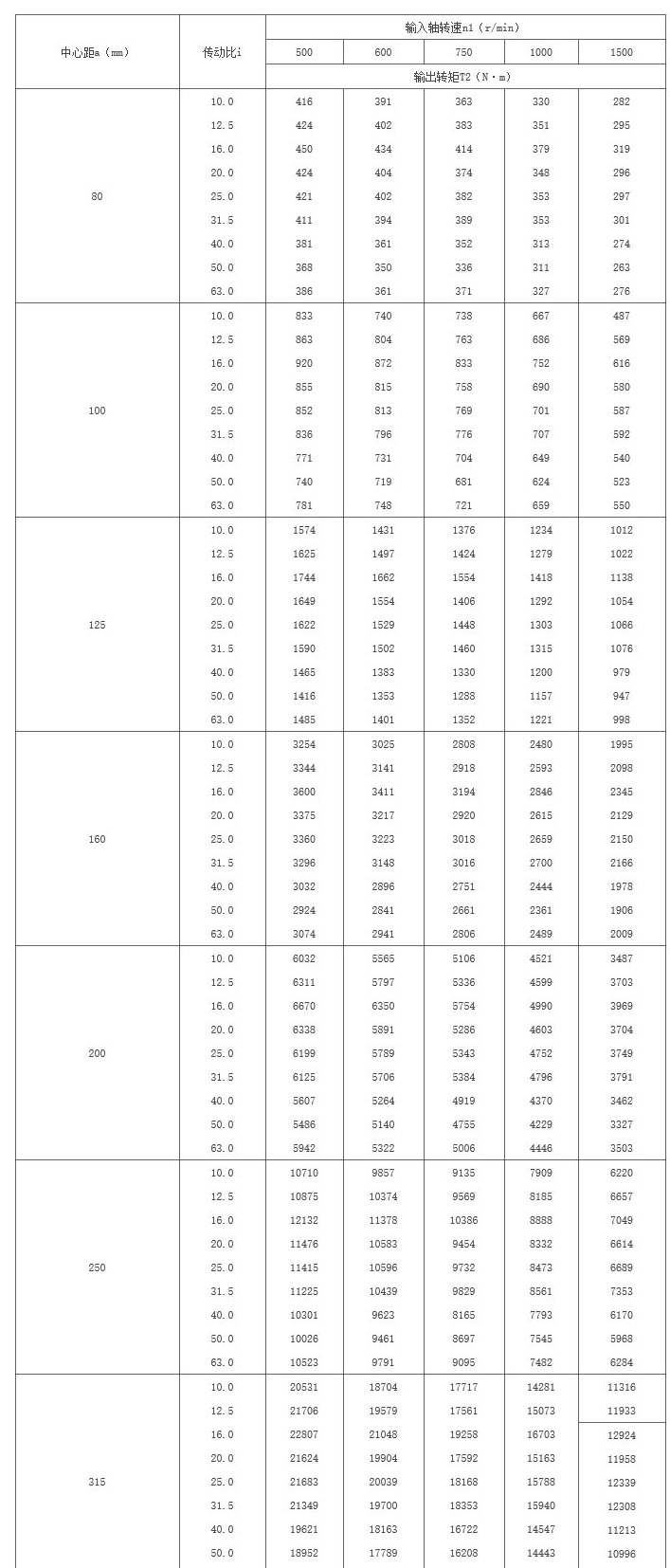

The TP plane enveloping toroidal worm reducer (JB/T9051-1991) is a planar primary enveloping worm drive. Center distance: 100, 125, 160, 200, 250, 315, 400, 500. Speed ratio: 10, 12.5, 16, 20, 25, 31.5, 40, 50, 60. The planar envelope toroidal worm reducer is an emerging transmission device with large carrying capacity, high transmission efficiency, compact and reasonable structure. This type of reducer can be widely used in various transmission machinery, such as metallurgy, minerals, lifting, chemical, construction, rubber, shipbuilding and other mechanical equipment, suitable for working environment temperature of -40 ° C ~ +40 ° C, the input shaft speed is not more than 1500 rev / min, the worm shaft can rotate in both directions. This reducer is designed and manufactured according to the People's Republic of China machinery industry standard JB/T9051 - 1999 "flat envelope toroidal worm reducer".

Model and tag example
