Three-leaf open turbine agitator
  1. Three-leaf open turbine agitator

Three-leaf open turbine agitator

  • Category:Old website product data
  • Inquiry Email
    Description

    Product introduction: The company produces nearly 30 types, including more than 140 kinds of agitators, from the most common (including the existing HB5 standard, SB90 standard agitator) to various complex shapes or special purpose agitators. It can be manufactured according to various specifications and sizes of H/T2123-91 standard, and can also design and manufacture various special requirements according to the user's production process requirements.

    本公司生产近30类,计140多种搅拌器,从最常见的(包括已有的HB5标准,SB90标准各种搅拌器)到各种复杂形状或特殊用途的搅拌器。可按H/T2123-91标准的各种规格尺寸系列制造,也可根据用户生产工艺需求,代为设计制造各种特殊要求、特殊规格或特殊用途的搅拌器。

    搅拌器型号标注方法:




    材料代号
    搅拌器轴孔径
    搅拌器的外径,
    搅拌器型式代号

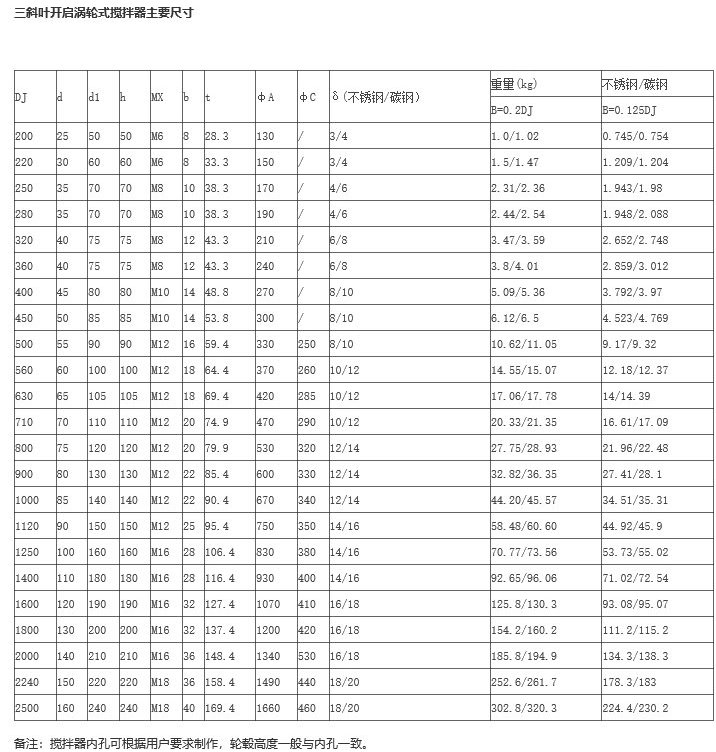

    三叶开启涡轮式搅拌器

    三斜叶整体开启涡轮式-YK、三斜窄叶整体可启涡轮式-ZK、三斜叶可拆开启涡轮式-YCK、三斜窄叶可拆开启涡轮式-ZKW、三斜叶整体稳定器开启涡轮式-YKW、三斜窄叶整体稳定器开启涡轮式-ZKW、三斜叶可拆稳定器开启涡轮式-YCW、三斜窄叶可拆稳定器开启涡轮式-ZCW

    本系列搅拌器较之六叶、四叶开启涡轮式对应搅拌器,有相同规律,而且相对直径大,转速低的情况也可视作桨式搅拌器处理,所以应用也很广泛。稳定器可按要求制作成稳定环及稳定片两种,若采用稳定片,将原型号中末位的W改为U。常用条件μ<50000cp,n=10-300rpm,v=1-10m/s,DJ/D=0.2-0.8,宽形B/DJ=0.2,窄形B/DJ=0.125
