Home Products WP series worm gearbox WPE Double Reducer Ratio(1/100-1/3600) WPEKA40~250 worm gear reducer gear reduc

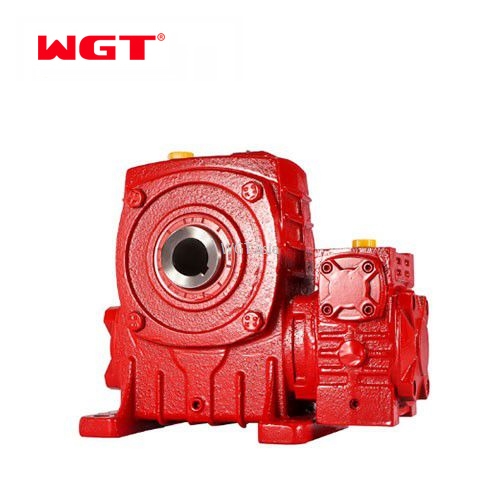

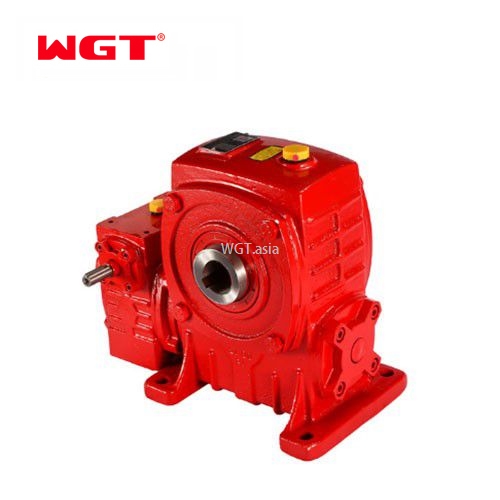

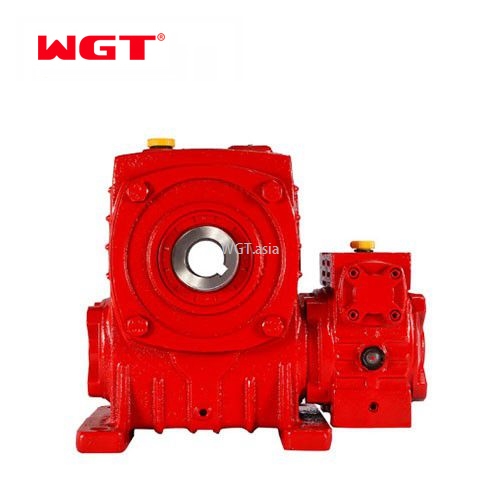

WPEKA40~250 worm gear reducer gear reducer
  1. WPEKA40~250 worm gear reducer gear reducer
  2. WPEKA40~250 worm gear reducer gear reducer
  3. WPEKA40~250 worm gear reducer gear reducer
  4. WPEKA40~250 worm gear reducer gear reducer

WPEKA40~250 worm gear reducer gear reducer

Product Item:WPEKA-worm-gear-reducer-gear-reducer

  • FOB Reference price:$100~$5631
  • Minimum order quantity:10Piece
  • Customized logo:50Piece
  • Payment method:T/T
  • Supply capacity:30day(3000Piece)
  • Delivery time:3 day (1 - 100 Piece)
  • Packing:Standard export plywood case
  • Port:NINGBO/SHANGHAI PORT
  • Warranty:one year
  • Brand Name:WGT
  • Place of Origin:Zhejiang, China
  • View online Catalog
  • Category:WPE Double Reducer Ratio(1/100-1/3600)
  • worm gear  , WP
    Inquiry Email Attachment
    Description
    Guide
    Model

    woruisen WpEKA worm gear speed reducer reduction box gearbox for sale

    WP series reducer, the worm is made of 45# high quality steel after heat treatment, the worm wheel is cast with tin bronze, the wear-resisting performance is good, especially on the bearing capacity is more obvious, mainly applicable to plastic, metallurgy, beverage, mine, lifting transportation, chemical construction and other mechanical equipment speed reduction drive.BOOK.pngElectronic Catalog BOOK5.pngPDF Catalog


    A.Features:

    1. Stable transmission, low vibration, impact and noise, large reduction ratio, wide versatility and suitable for use with various mechanical equipment.

    2. Large transmission ratio can be obtained by single-stage transmission, with compact structure. Most reducers have good self-locking property, and can save the brake device for mechanical equipment with brake requirements.

    3. The meshing friction loss between worm screw teeth and worm gear surface is relatively large, so the transmission efficiency is lower than that of gear, and it is easy to be heated and the temperature is higher.

    4. Higher requirements for lubrication and cooling.

    5. Good interfitting. The worm and worm are manufactured in accordance with national standards.

    B.Operating conditions:

    1. The speed of worm reducer should not exceed 1500r/min.,

    2.working environment temperature for -40 ℃ to + 40 ℃, when working environment temperature is lower than 0 ℃, lubricating oil must be heated before starting to more than 0 ℃, when working environment temperature is higher than 40 ℃, the cooling measures must be taken.

    3. The feeding shaft of the worm gear reducer can rotate positively or negatively.

    C.Notice:

    1. The worm gear shaft must not be used as input shaft.

    2. The machine does not pump oil at the factory. Sufficient mechanical oil must be added before operation.

    3. The supporting motor (i.e. power) shall not exceed the value specified in the sign.

    4. If the user wants to change the direction of entering the shaft, remove the lower end cover of the shaft, take out the worm shaft and adjust 180.Load it.Press install not hard knock, can slowly drive the two shafts, make it mesh.


    Technical data
    Types of: WP gearbox
    specification: WP 40-250
    Speed ratio: 1: 10,15,20,25,30,40,50,60,200,300,400,500,600,800,900,1200,1 500,1800,2400,2500,3000,3600
    colour: Blue / silver or according to customer requirements



    material:

    Housing: cast iron casting

    Worm gear-copper-10-3 #

    Carburized and quenched Worm-20CrMn Ti, the surface harness strength is 56-62HRC

    Shaft chrome steel 45 #

    package: Carton and wooden box
    Bearing: C & U Bearing
    seal: NAK SKF
    Guarantee: One year
    input power. 0.06KW, 0. 09KW, 1.1KW, 1 5KW 2.2KW, 3KW, 4KW, 5 5KW, 7 5KW
    use: Industrial machinery: food, ceramics, chemical packaging, dyeing, carpentry, glass.
    IEC flange: 56B14, 63B14, 63B5, 63B5, 71B14, 80B14, etc.






    PFor the full range of models, specifications, speed ratios, prices, etc. of WP series products, please click here to view


    000-WP-PRODUCTS-GUIDE.pdf 001-WP-REDUCER-SELECTION-METHODS.pdf
    03-WP-DOUBLE-SPEED-REDUCER.pdf
    BOOK.pngElectronic Catalog BOOK5.pngPDF Catalog
    WP Series Price USD.pdf USD account information.pdf

    WPE Double Reducer Ratio has the following models:
    WPEA40-70  WPEA50-80  WPEA60-100  WPEA70-120  WPEA80-135  WPEA80-147  WPEA100-155  WPEA120-175  WPEA135-200  WPEA155-250
    WPEDA40-70  WPEDA50-80  WPEDA60-100  WPEDA70-120  WPEDA80-135  WPEDA80-147  WPEDA100-155  WPEDA120-175  WPEDA135-200  WPEDA155-250
    WPEKA40-70  WPEKA50-80  WPEKA60-100  WPEKA70-120  WPEKA80-135  WPEKA100-155  WPEKA120-175  WPEKA135-200  WPEKA155-250
    WPEDKA40-70  WPEDKA50-80  WPEDKA60-100  WPEDKA70-120  WPEDKA80-135  WPEDKA100-155  WPEDKA120-175  WPEDKA135-200  WPEDKA155-250
    WPEO40-70  WPEO50-80  WPEO60-100  WPEO70-120  WPEO80-135  WPEO80-147  WPEO100-155  WPEO120-175  WPEO135-200  WPEO155-250
    WPEDO40-70  WPEDO50-80  WPEDO60-100  WPEDO70-120  WPEDO80-135  WPEDO80-147  WPEDO100-155  WPEDO120-175  WPEDO135-200  WPEDO155-250
    WPES40-70  WPES50-80  WPES60-100  WPES70-120  WPES80-135  WPES80-147  WPES100-155  WPES120-175  WPES135-200  WPES155-250
    WPEDS40-70  WPEDS50-80  WPEDS60-100  WPEDS70-120  WPEDS80-135  WPEDS80-147  WPEDS100-155  WPEDS120-175  WPEDS135-200  WPEDS155-250
    WPEKS40-70  WPEKS50-80  WPEKS60-100  WPEKS70-120  WPEKS80-135  WPEKS100-155  WPEKS120-175  WPEKS135-200  WPEKS155-250
    WPEDKS40-70  WPEDKS50-80  WPEDKS60-100  WPEDKS70-120  WPEDKS80-135  WPEDKS100-155  WPEDKS120-175  WPEDKS135-200  WPEDKS155-250
    WPEX40-70  WPEX50-80  WPEX60-100  WPEX70-120  WPEX80-135  WPEX80-147  WPEX100-155  WPEX120-175  WPEX135-200  WPEX155-250
    WPEDX40-70  WPEDX50-80  WPEDX60-100  WPEDX70-120  WPEDX80-135  WPEDX80-147  WPEDX100-155  WPEDX120-175  WPEDX135-200  WPEDX155-250
    WPWE40-70  WPWE50-80  WPWE60-100  WPWE70-120  WPWE80-135  WPWE100-155  WPWE120-175  WPWE135-200  WPWE155-250
    WPWED40-70  WPWED50-80  WPWED60-100  WPWED70-120  WPWED80-135  WPWED100-155  WPWED120-175  WPWED135-200  WPWED155-250
    WPWEKO40-70  WPWEKO50-80  WPWEKO60-100  WPWEKO70-120  WPWEKO80-135  WPWEKO100-155  WPWEKO120-175  WPWEKO135-200  WPWEKO155-250
    WPWEDKO40-70  WPWEDKO50-80  WPWEDKO60-100  WPWEDKO70-120  WPWEDKO80-135  WPWEDKO100-155  WPWEDKO120-175  WPWEDKO135-200  WPWEDKO155-250
    WPEEA40-70  WPEEA50-80  WPEEA60-100  WPEEA70-120  WPEEA80-135  WPEEA80-147  WPEEA100-155  WPEEA120-175  WPEEA135-200  WPEEA155-250
    WPEEDO40-70  WPEEDO50-80  WPEEDO60-100  WPEEDO70-120  WPEEDO80-135  WPEEDO80-147  WPEEDO100-155  WPEEDO120-175  WPEEDO135-200  WPEEDO155-250
    WPWEK40-70  WPWEK50-80  WPWEK60-100  WPWEK70-120  WPWEK80-135  WPWEK100-155  WPWEK120-175  WPWEK135-200  WPWEK155-250
    WPWEDK40-70  WPWEDK50-80  WPWEDK60-100  WPWEDK70-120  WPWEDK80-135  WPWEDK100-155  WPWEDK120-175  WPWEDK135-200  WPWEDK155-250
    AS  TV  OX
