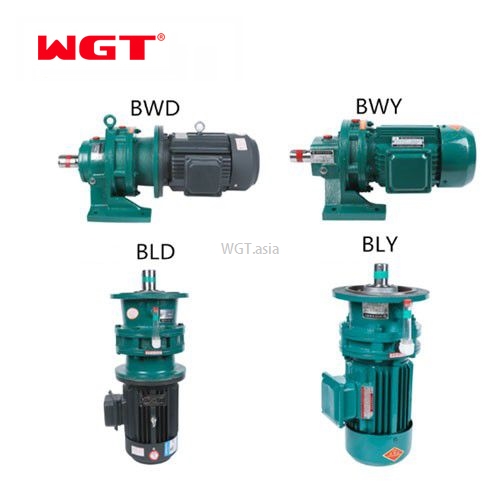

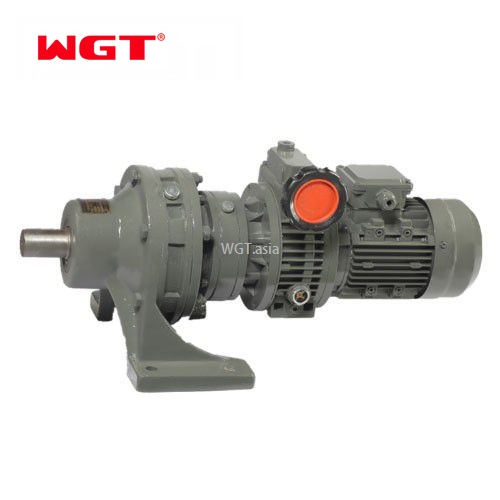

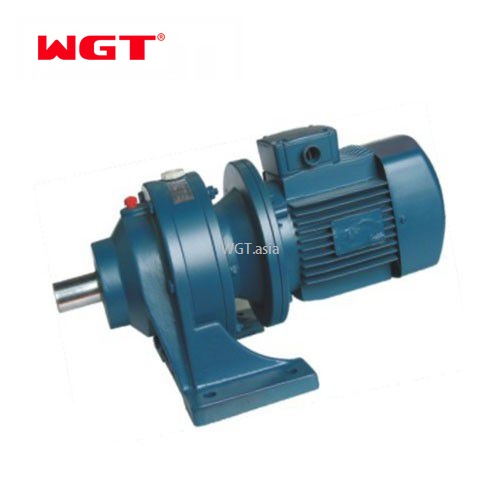

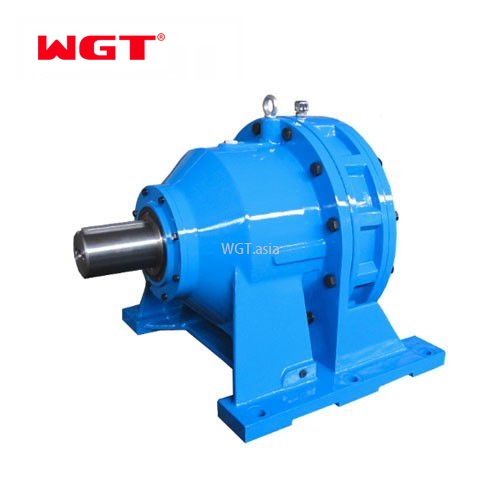

BL,BW,BLD,BWD,XL,XW,XLD,XWD series Cycloidal Gear Reducer
Cycloidal gear drives are unique and are still unsurpassed where drive technology is concerned. The cycloidal speed reducer is superior to traditional gear mechanisms, since it only operates with rolling force and is not exposed to shear forces. By comparison with gears with contact loads, Cyclo drives are more resistant
and can absorb extreme shock loads by means of uniform load distribution over the power transmitting
components. Cyclo drives and cyclo drive geared motors are characterized by their reliability, long service life
and outstanding efficiency, even under difficult conditions.
Characteristic
Premier in-line drives as both a reducer and gearmotor
Quiet, efficient and reliable operation with high torque density and compact sizes
Interchangeable cast iron housings in foot, flanged or face mount configurations
Available free-shaft, quill hollow shaft, C-face adaptors, shovel base, and top-mount inputs
Mininimal vibration, low noise, low backlash and extended operational life
product description | Main application industries |
Features -High standard modular design -High-quality materials ensure product reliability -High strength, compact size -long lasting - high efficiency -Strong radial load capacity -High cost performance |
-Belt conveyor drive -Bucket elevator -Agitator driver -Hoisting gear drive -Walking gear transmission -Paper machine driver -Dryer driver -Water screw driver |
model |
power |
Speed ratio |
Maximum torque |
Output shaft diameter |
Input shaft diameter |
1 stage |
|||||
X2 (B0 / B12) |
0.37 ~ 1.5 |
9 ~ 87 |
150 |
Φ25 (Φ30) |
Φ15 |
X3 (B1 / B15) |
0.55 ~ 2.2 |
9 ~ 87 |
250 |
Φ35 |
Φ18 |
X4 (B2 / B18) |
0.75 ~ 4.0 |
9 ~ 87 |
500 |
Φ45 |
Φ22 |
X5 (B3 / B22) |
1.5 ~ 7.5 |
9 ~ 87 |
1,000 |
Φ55 |
Φ30 |
X6 (B4 / B27) |
2.2 ~ 11 |
9 ~ 87 |
2,000 |
Φ65 (Φ70) |
Φ35 |
X7 |
3.0 ~ 11 |
9 ~ 87 |
2,700 |
Φ80 |
Φ40 |
X8 (B5 / B33) |
5.5 ~ 18.5 |
9 ~ 87 |
4,500 |
Φ90 |
Φ45 |
X9 (B6 / B39) |
7.5 ~ 30 |
9 ~ 87 |
7,100 |
Φ100 |
Φ50 |
X10 (B7 / B45) |
15 ~ 45 |
9 ~ 87 |
12,000 |
Φ110 |
Φ55 |
X11 (B8 / B55) |
18.5 ~ 55 |
9 ~ 87 |
20,000 |
Φ130 |
Φ70 |
2 stages |
|||||
X32 (B10) |
0.25 ~ 0.55 |
121 ~ 1849 |
- |
Φ35 |
Φ15 |
X42 (B20 / B1812) |
0.37 ~ 0.75 |
121 ~ 1849 |
- |
Φ45 |
Φ15 |
X53 (B31 / B2215) |
0.55 ~ 1.5 |
121 ~ 1849 |
- |
Φ55 |
Φ18 |
X63 (B41 / B2715) |
0.75 ~ 2.2 |
121 ~ 1849 |
- |
Φ65 (Φ70) |
Φ18 |
X64 (B42 / B2718) |
0.75 ~ 2.2 |
121 ~ 1849 |
- |
Φ65 (Φ70) |
Φ22 |
X74 |
1.1 ~ 3.0 |
121 ~ 1849 |
- |
Φ80 |
Φ22 |
X84 (B52 / B3318) |
1.5 ~ 4.0 |
121 ~ 1849 |
- |
Φ90 |
Φ22 |
X85 (B53 / B3322) |
2.2 ~ 5.5 |
121 ~ 1849 |
- |
Φ90 |
Φ30 |
X95 (B63 / B3922) |
3.0 ~ 7.5 |
121 ~ 1849 |
- |
Φ100 |
Φ30 |
X106 |
4.0 ~ 11 |
121 ~ 1849 |
- |
Φ110 |
Φ35 |
product name: | B / X series cycloid reducer |
colour: | Blue, silver or customized |
material: | Bearing steel |
Heat treatment: | Quenching |
Shell material | HT200 |
Bearing material: | SKF |
certificate: | ROHS, IS09001 |
package: | Standard export packaging (cotton blanket + wooden box) |
Guarantee: | 1 year |
application: |
Metallurgy, coal / mining industry. Cement, chemical industry, energy, electricity Electricity, paper industry, sugar industry, port, lifting and construction Machinery, rubber / plastic |
Type / Model
X2, X3, X4, X5, X6, X7, X9, X9, X10, X11, XE31, XE42, XE53, XE63, XE64, XE74, XE84, XE85, XE95, XE106, XE117
B0, B1, B2, B3, B4, B5, B6, B7, B8, B10, B21, B31, B41, B42, B52, B53, B63, B74, B85
JXJ0, JXJ1, JXJ2, JXJ3, JXJ4, JXJ5, JXJ6, JXJ7, JXJ8, JXJE10, JXJE21
B12, B15, B18, B22, B27, B33, B39, B45, B55, B1812, B2215, B2715, B2718, B3318, B3322, B3922, B5527
XWY5.5-5-23, BLED63-289-1.5, XWED3-85-187-YB-B3, XWD4-5-29, xled1.5-63-187,
BWY3-43-2.2, BLEY53-391-1.5, JXJ (L) 4-43-5.5, JXJE (L) 53-385-2.2
00-BX-cycloid-reducer.pdf |
|
Electronic Catalog |
PDF Catalog |
BX cycloid series Price USD.pdf |
USD account information.pdf |
BX cycloid reducer has the following models:
B0(X2)120 B1(X3)150 B2(X4)180 B3(X5)220 B4(X6)270 B5(X8)330B6(X9)390 B7(X10)450 B8(X11)550 B9(X12)650
BL0(X2)120 BL0(XL2)120 BL0(XW2)120 BL0(XLD2)120 BL0(XWD2)120
BW0(X2)120 BW0(XL2)120 BW0(XW2)120 BW0(XLD2)120 BW0(XWD2)120
BLD0(X2)120 BLD0(XL2)120 BLD0(XW2)120 BLD0(XLD2)120 BLD0(XWD2)120
BWD0(X2)120 BWD0(XL2)120 BWD0(XW2)120 BWD0(XLD2)120 BWD0(XWD2)120
BL1(X3)150 BL1(XL3)150 BL1(XW3)150 BL1(XLD3)150 BL1(XWD3)150
BW1(X3)150 BW1(XL3)150 BW1(XW3)150 BW1(XLD3)150 BW1(XWD3)150
BLD1(X3)150 BLD1(XL3)150 BLD1(XW3)150 BLD1(XLD3)150 BLD1(XWD3)150
BWD1(X3)150 BWD1(XL3)150 BWD1(XW3)150 BWD1(XLD3)150 BWD1(XWD3)150
BL2(X4)180 BL2(XL4)180 BL2(XW4)180 BL2(XLD4)180 BL2(XWD4)180
BW2(X4)180 BW2(XL4)180 BW2(XW4)180 BW2(XLD4)180 BW2(XWD4)180
BLD2(X4)180 BLD2(XL4)180 BLD2(XW4)180 BLD2(XLD4)180 BLD2(XWD4)180
BWD2(X4)180 BWD2(XL4)180 BWD2(XW4)180 BWD2(XLD4)180 BWD2(XWD4)180
BL3(X5)220 BL3(XL5)220 BL3(XW5)220 BL3(XLD5)220 BL3(XWD5)220
BW3(X5)220 BW3(XL5)220 BW3(XW5)220 BW3(XLD5)220 BW3(XWD5)220
BLD3(X5)220 BLD3(XL5)220 BLD3(XW5)220 BLD3(XLD5)220 BLD3(XWD5)220
BWD3(X5)220 BWD3(XL5)220 BWD3(XW5)220 BWD3(XLD5)220 BWD3(XWD5)220
BL4(X6)270 BL4(XL6)270 BL4(XW6)270 BL4(XLD6)270 BL4(XWD6)270
BW4(X6)270 BW4(XL6)270 BW4(XW6)270 BW4(XLD6)270 BW4(XWD6)270
BLD4(X6)270 BLD4(XL6)270 BLD4(XW6)270 BLD4(XLD6)270 BLD4(XWD6)270
BWD4(X6)270 BWD4(XL6)270 BWD4(XW6)270 BWD4(XLD6)270 BWD4(XWD6)270
BL5(X8)330 BL5(XL8)330 BL5(XW8)330 BL5(XLD8)330 BL5(XWD8)330
BW5(X8)330 BW5(XL8)330 BW5(XW8)330 BW5(XLD8)330 BW5(XWD8)330
BLD5(X8)330 BLD5(XL8)330 BLD5(XW8)330 BLD5(XLD8)330 BLD5(XWD8)330
BWD5(X8)330 BWD5(XL8)330 BWD5(XW8)330 BWD5(XLD8)330 BWD5(XWD8)330
BL6(X9)390 BL6(XL3)390 BL6(XW9)390 BL6(XLD9)390 BL6(XWD9)390
BW6(X9)390 BL6(XL3)390 BL6(XW9)390 BL6(XLD9)390 BL6(XWD9)390
BLD6(X9)390 BL6(XL3)390 BL6(XW9)390 BL6(XLD9)390 BL6(XWD9)390
BWD6(X9)390 BL6(XL3)390 BL6(XW9)390 BL6(XLD9)390 BL6(XWD9)390
BL7(X10)450 BL7(XL10)450 BL7(XW10)450 BL7(XLD10)450 BL7(XWD10)450
BW7(X10)450 BW7(XL10)450 BW7(XW10)450 BW7(XLD10)450 BW7(XWD10)450
BLD7(X10)450 BLD7(XL10)450 BLD7(XW10)450 BLD7(XLD10)450 BLD7(XWD10)450
BWD7(X10)450 BWD7(XL10)450 BWD7(XW10)450 BWD7(XLD10)450 BWD7(XWD10)450
BL8(X11)550 BL8(XL11)550 BL8(XW11)550 BL8(XLD11)550 BL8(XWD11)550
BW8(X11)550 BW8(XL11)550 BW8(XW11)550 BW8(XLD11)550 BW8(XWD11)550
BLD8(X11)550 BLD8(XL11)550 BLD8(XW11)550 BLD8(XLD11)550 BLD8(XWD11)550
BWD8(X11)550 BWD8(XL11)550 BWD8(XW11)550 BWD8(XLD11)550 BWD8(XWD11)550
BL9(X12)650 BL9(XL12)650 BL9(XW12)650 BL9(XLD12)650 BL9(XWD12)650
BW9(X12)650 BW9(XL12)650 BW9(XW12)650 BW9(XLD12)650 BW9(XWD12)650
BLD9(X12)650 BLD9(XL12)650 BLD9(XW12)650 BLD9(XLD12)650 BLD9(XWD12)650
BWD9(X12)650 BWD9(XL12)650 BWD9(XW12)650 BWD9(XLD12)650 BWD9(XWD12)650
