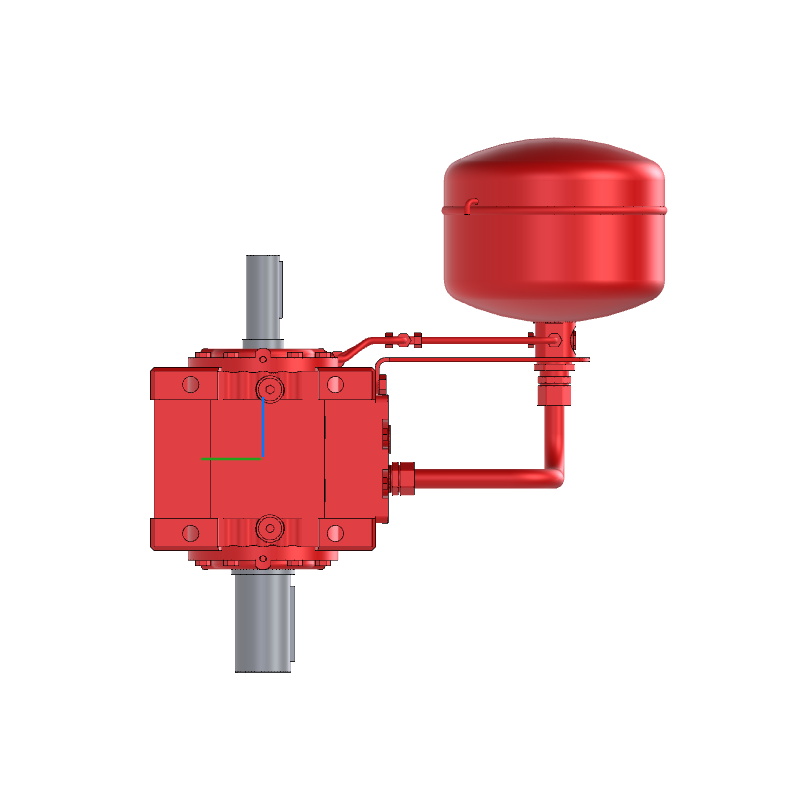

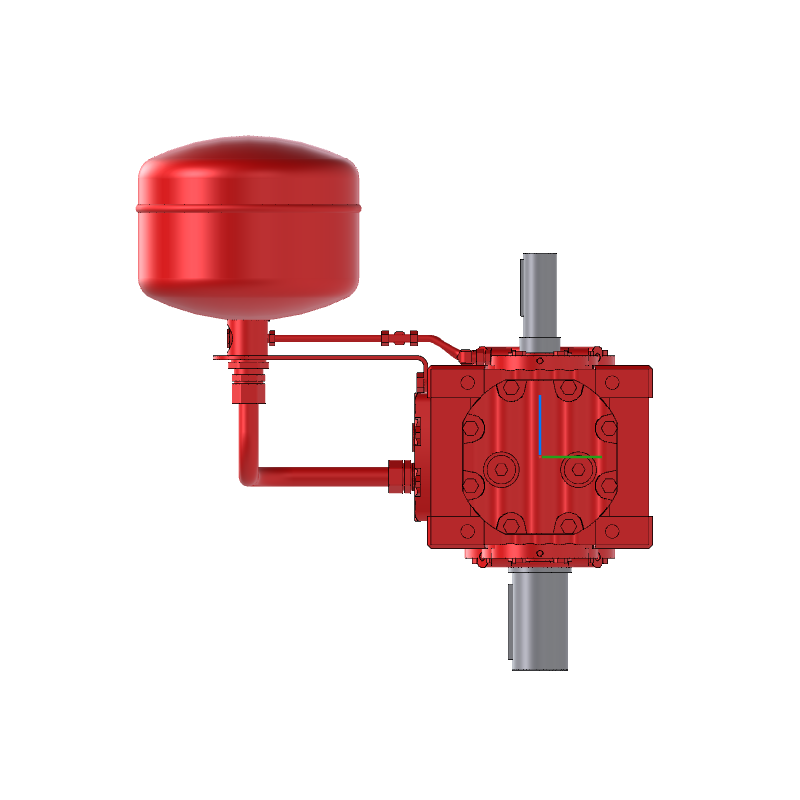

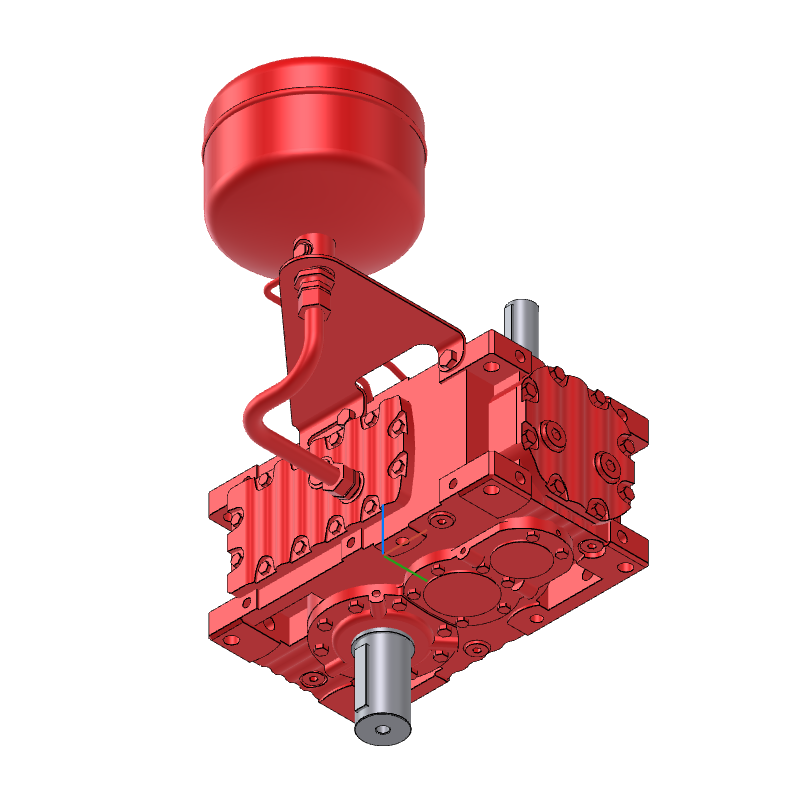

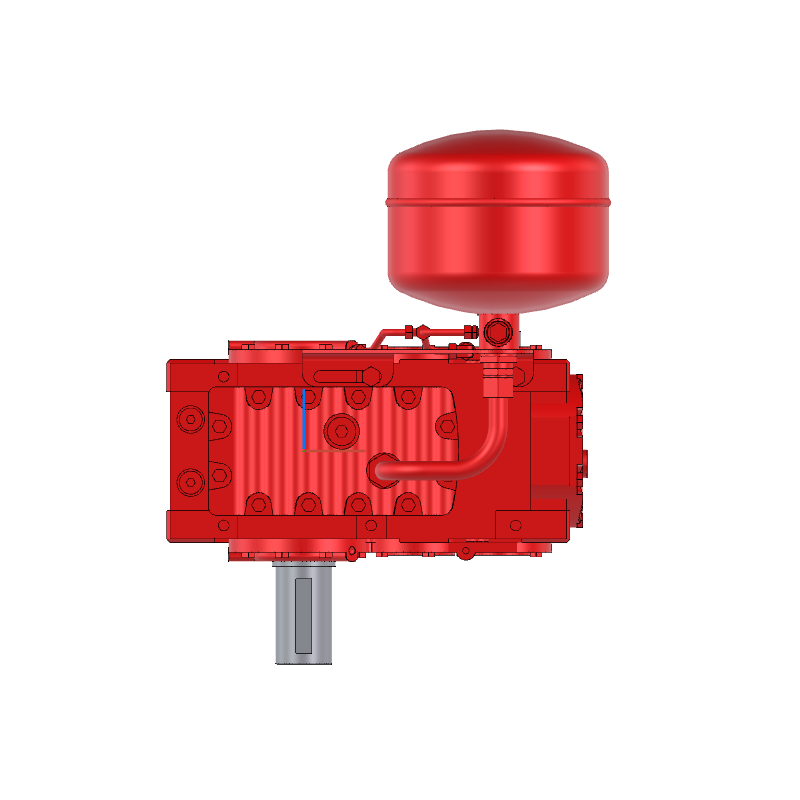

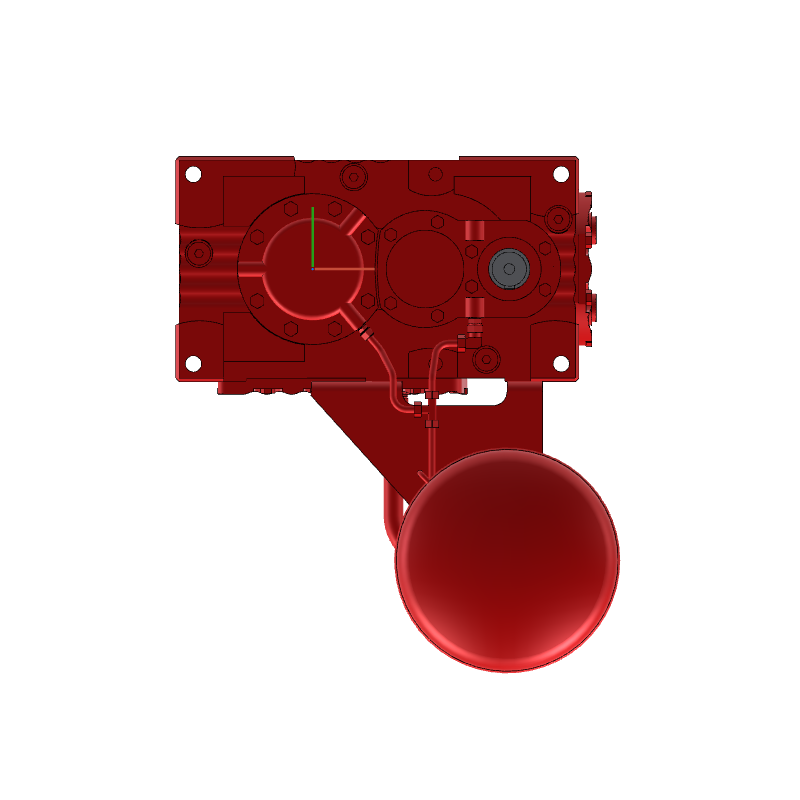

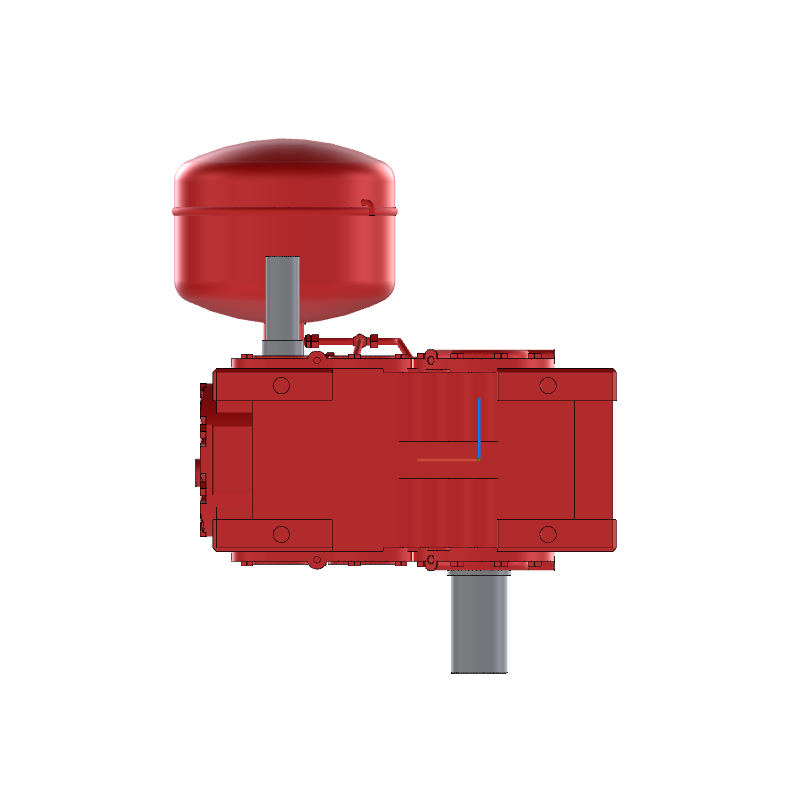

SEW MC Series MC2PVSF02 to MC2PVSF09 are heavy-duty parallel shaft helical gear units engineered as implantable gearboxes for continuous industrial drive applications. Covering eight frame sizes, they deliver medium-to-high torque, wide ratio coverage, and exceptional reliability for conveyors, mixing systems, material handling, metallurgy, and processing machinery. Built with a monoblock housing and precision-ground gears, these industrial reducers offer high power density, stable performance, and easy integration into compact equipment layouts.
Featuring case-hardened and ground helical gears, robust bearings, and optimized lubrication systems, MC2PVSF02–09 ensures low noise, low vibration, and long service life under heavy loads. The monoblock construction eliminates split housing weaknesses, improves rigidity, and enhances radial/axial load capacity. Their compact, implantable design allows direct embedding into host machines, saving installation space and simplifying assembly. Multiple mounting orientations and standardized interfaces further boost flexibility for custom machinery design.
| MC.PL..series | kg | MC.PV..series | kg | MC.PE..series | kg | MC.RL..series | kg | MC.RV..series | kg | MC.RE..series | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MC2PLSF02 | 115 | MC2PVSF02 | 120 | MC2PESF02 | 125 | MC2RLSF02 | 130 | MC2RVSF02 | 135 | MC2RESF02 | 140 |
| MC2PLSF03 | 145 | MC2PVSF03 | 150 | MC2PESF03 | 155 | MC2RLSF03 | 160 | MC2RVSF03 | 165 | MC2RESF03 | 170 |
| MC2PLSF04 | 190 | MC2PVSF04 | 195 | MC2PESF04 | 200 | MC2RLSF04 | 210 | MC2RVSF04 | 215 | MC2RESF04 | 220 |
| MC2PLSF05 | 260 | MC2PVSF05 | 265 | MC2PESF05 | 270 | MC2RLSF05 | 285 | MC2RVSF05 | 290 | MC2RESF05 | 295 |
| MC2PLSF06 | 350 | MC2PVSF06 | 355 | MC2PESF06 | 360 | MC2RLSF06 | 380 | MC2RVSF06 | 385 | MC2RESF06 | 390 |
| MC2PLSF07 | 480 | MC2PVSF07 | 485 | MC2PESF07 | 490 | MC2RLSF07 | 520 | MC2RVSF07 | 525 | MC2RESF07 | 530 |
| MC2PLSF08 | 680 | MC2PVSF08 | 685 | MC2PESF08 | 690 | MC2RLSF08 | 730 | MC2RVSF08 | 735 | MC2RESF08 | 740 |
| MC2PLSF09 | 950 | MC2PVSF09 | 955 | MC2PESF09 | 960 | MC2RLSF09 | 1020 | MC2RVSF09 | 1025 | MC2RESF09 | 1030 |
| MC3PLSF02 | 130 | MC3PVSF02 | 135 | MC3PESF02 | 140 | MC3RLSF02 | 145 | MC3RVSF02 | 150 | MC3RESF02 | 155 |
| MC3PLSF03 | 165 | MC3PVSF03 | 170 | MC3PESF03 | 175 | MC3RLSF03 | 180 | MC3RVSF03 | 185 | MC3RESF03 | 190 |
| MC3PLSF04 | 215 | MC3PVSF04 | 220 | MC3PESF04 | 225 | MC3RLSF04 | 235 | MC3RVSF04 | 240 | MC3RESF04 | 245 |
| MC3PLSF05 | 295 | MC3PVSF05 | 300 | MC3PESF05 | 305 | MC3RLSF05 | 320 | MC3RVSF05 | 325 | MC3RESF05 | 330 |
| MC3PLSF06 | 390 | MC3PVSF06 | 395 | MC3PESF06 | 400 | MC3RLSF06 | 420 | MC3RVSF06 | 425 | MC3RESF06 | 430 |
| MC3PLSF07 | 540 | MC3PVSF07 | 545 | MC3PESF07 | 550 | MC3RLSF07 | 580 | MC3RVSF07 | 585 | MC3RESF07 | 590 |
| MC3PLSF08 | 780 | MC3PVSF08 | 785 | MC3PESF08 | 790 | MC3RLSF08 | 840 | MC3RVSF08 | 845 | MC3RESF08 | 850 |
| MC3PLSF09 | 1120 | MC3PVSF09 | 1125 | MC3PESF09 | 1130 | MC3RLSF09 | 1200 | MC3RVSF09 | 1205 | MC3RESF09 | 1210 |
