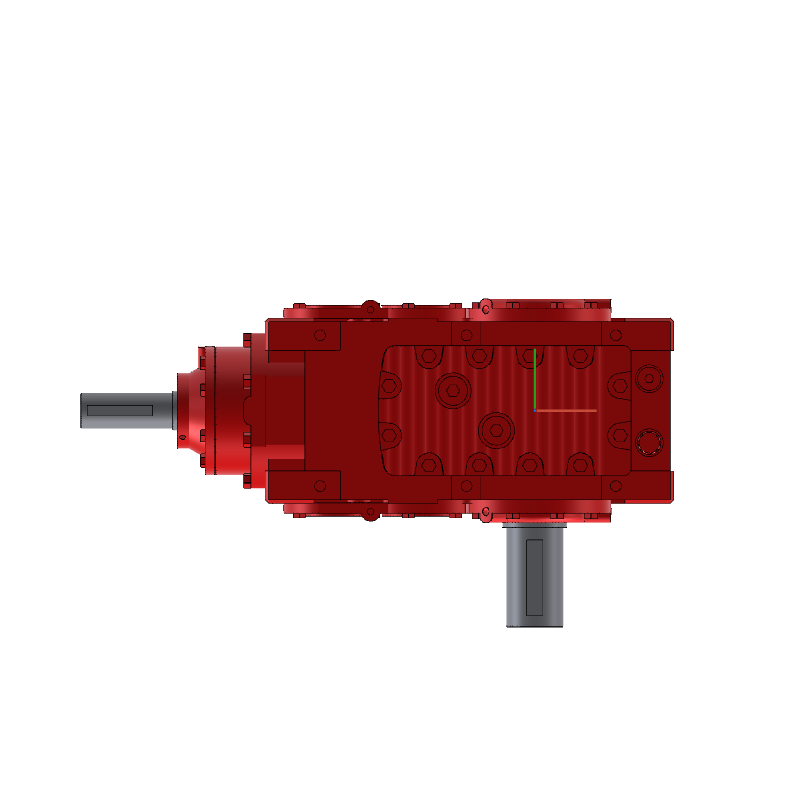

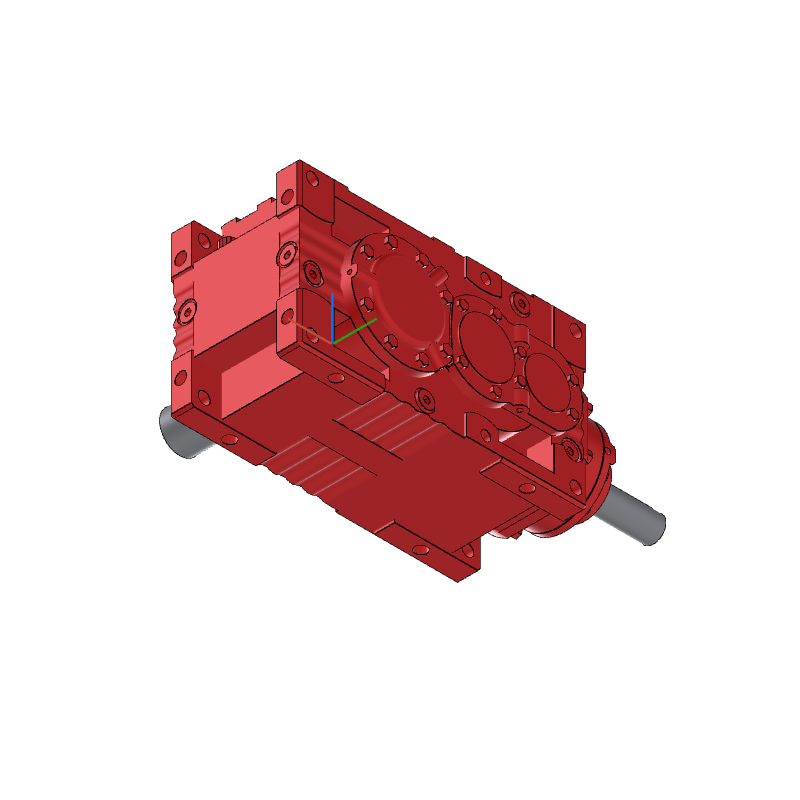

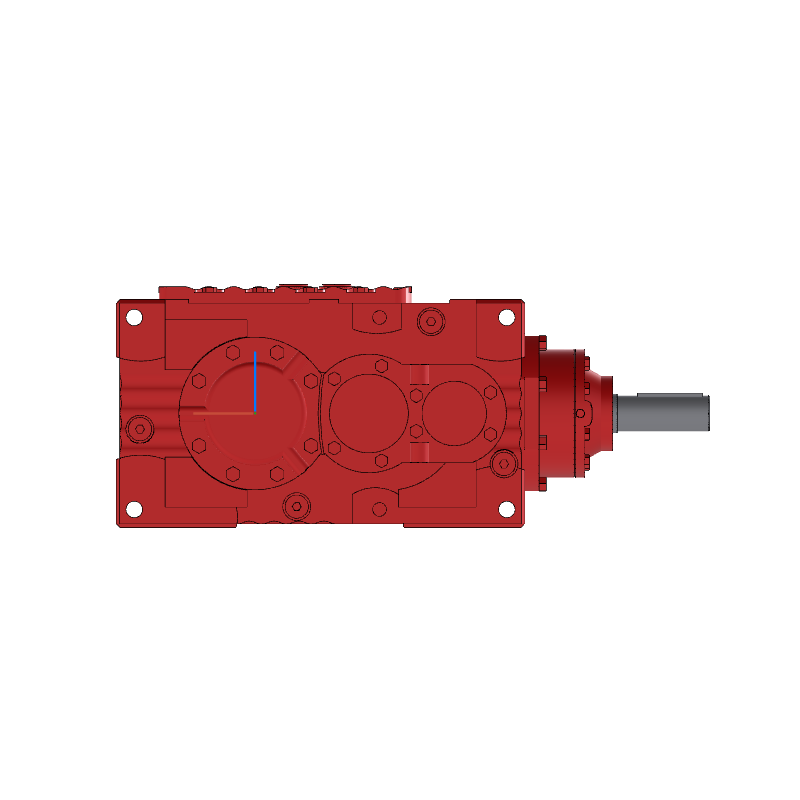

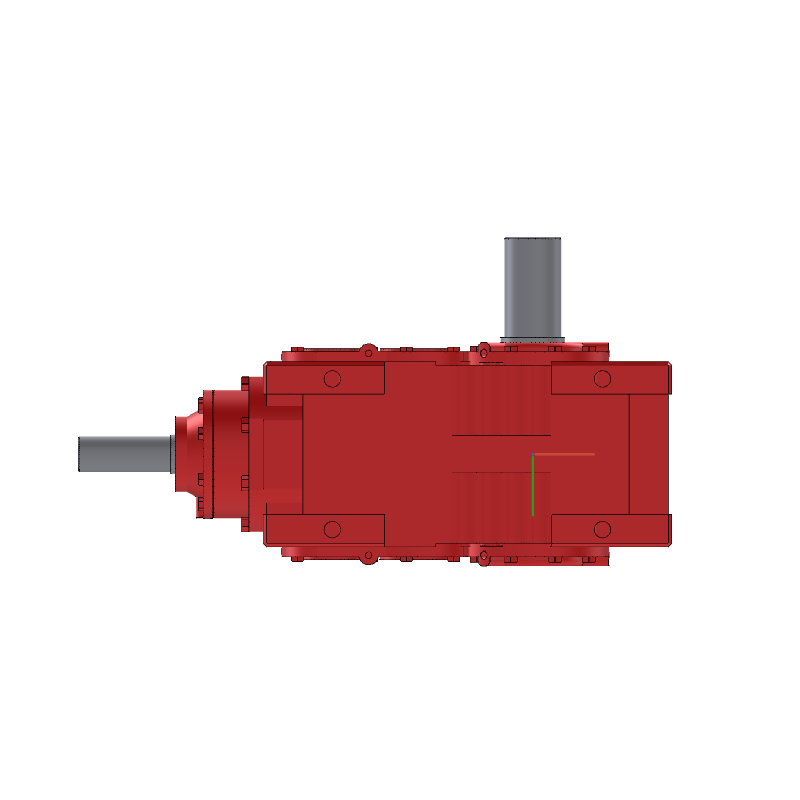

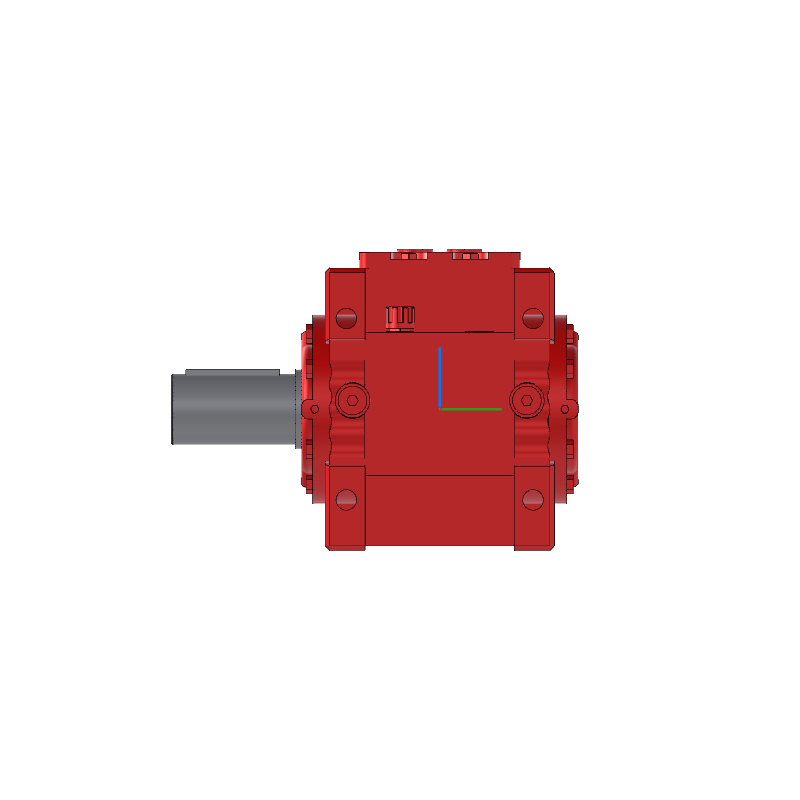

MC2RLSF02
  1. MC2RLSF02
  2. MC2RLSF02
  3. MC2RLSF02
  4. MC2RLSF02
  5. MC2RLSF02

MC2RLSF02

  • Supply capacity：60day(500pcs)
  • Delivery time：6-10 weeks
  • Packing：Standard wooden crate
  • Port：NINGBO/SHANGHAI PORT
  • Warranty：one year
  • Brand Name：SEW
  • Place of Origin：China SEW Suzhou, Tianjin
  • HS Code：8483409090
  • Category：SEW MC series Gearbox reducer motor
    • SEW-MC
    Inquiry Email
    Description
    Guide
    Selection
    Model
    Dimension


    SEW MC Series MC2RLSF02 to MC2RLSF09 are heavy-duty bevel-helical gear units engineered as implantable gearboxes for continuous industrial drive systems. Covering eight frame sizes, they deliver medium-to-high torque (6–65 kNm), wide ratio coverage (7.1–112), and exceptional reliability for conveyors, mixing systems, material handling, metallurgy, and processing machinery. Built with a monoblock housing and precision-ground gears, these industrial reducers offer high power density, stable performance, and easy integration into compact equipment layouts.
    Featuring case-hardened and ground bevel-helical gears, robust bearings, and optimized lubrication systems, MC2RLSF02–09 ensures low noise, low vibration, and long service life under heavy loads. The monoblock construction eliminates split housing weaknesses, improves rigidity, and enhances radial/axial load capacity. Their compact, implantable design allows direct embedding into host machines, saving installation space and simplifying assembly. Multiple mounting orientations and standardized interfaces further boost flexibility for custom machinery design.


    SEW MC Series Models & Weight (kg)


    MC.PL..series kg MC.PV..series kg MC.PE..series kg MC.RL..series kg MC.RV..series kg MC.RE..series kg
    MC2PLSF02 115 MC2PVSF02 120 MC2PESF02 125 MC2RLSF02 130 MC2RVSF02 135 MC2RESF02 140
    MC2PLSF03 145 MC2PVSF03 150 MC2PESF03 155 MC2RLSF03 160 MC2RVSF03 165 MC2RESF03 170
    MC2PLSF04 190 MC2PVSF04 195 MC2PESF04 200 MC2RLSF04 210 MC2RVSF04 215 MC2RESF04 220
    MC2PLSF05 260 MC2PVSF05 265 MC2PESF05 270 MC2RLSF05 285 MC2RVSF05 290 MC2RESF05 295
    MC2PLSF06 350 MC2PVSF06 355 MC2PESF06 360 MC2RLSF06 380 MC2RVSF06 385 MC2RESF06 390
    MC2PLSF07 480 MC2PVSF07 485 MC2PESF07 490 MC2RLSF07 520 MC2RVSF07 525 MC2RESF07 530
    MC2PLSF08 680 MC2PVSF08 685 MC2PESF08 690 MC2RLSF08 730 MC2RVSF08 735 MC2RESF08 740
    MC2PLSF09 950 MC2PVSF09 955 MC2PESF09 960 MC2RLSF09 1020 MC2RVSF09 1025 MC2RESF09 1030
    MC3PLSF02 130 MC3PVSF02 135 MC3PESF02 140 MC3RLSF02 145 MC3RVSF02 150 MC3RESF02 155
    MC3PLSF03 165 MC3PVSF03 170 MC3PESF03 175 MC3RLSF03 180 MC3RVSF03 185 MC3RESF03 190
    MC3PLSF04 215 MC3PVSF04 220 MC3PESF04 225 MC3RLSF04 235 MC3RVSF04 240 MC3RESF04 245
    MC3PLSF05 295 MC3PVSF05 300 MC3PESF05 305 MC3RLSF05 320 MC3RVSF05 325 MC3RESF05 330
    MC3PLSF06 390 MC3PVSF06 395 MC3PESF06 400 MC3RLSF06 420 MC3RVSF06 425 MC3RESF06 430
    MC3PLSF07 540 MC3PVSF07 545 MC3PESF07 550 MC3RLSF07 580 MC3RVSF07 585 MC3RESF07 590
    MC3PLSF08 780 MC3PVSF08 785 MC3PESF08 790 MC3RLSF08 840 MC3RVSF08 845 MC3RESF08 850
    MC3PLSF09 1120 MC3PVSF09 1125 MC3PESF09 1130 MC3RLSF09 1200 MC3RVSF09 1205 MC3RESF09 1210



    MC.PL..series kg MC.PV..series kg MC.PE..series kg MC.RL..series kg MC.RV..series kg MC.RE..series kg
    MC2PLSF02 115 MC2PVSF02 120 MC2PESF02 125 MC2RLSF02 130 MC2RVSF02 135 MC2RESF02 140
    MC2PLSF03 145 MC2PVSF03 150 MC2PESF03 155 MC2RLSF03 160 MC2RVSF03 165 MC2RESF03 170
    MC2PLSF04 190 MC2PVSF04 195 MC2PESF04 200 MC2RLSF04 210 MC2RVSF04 215 MC2RESF04 220
    MC2PLSF05 260 MC2PVSF05 265 MC2PESF05 270 MC2RLSF05 285 MC2RVSF05 290 MC2RESF05 295
    MC2PLSF06 350 MC2PVSF06 355 MC2PESF06 360 MC2RLSF06 380 MC2RVSF06 385 MC2RESF06 390
    MC2PLSF07 480 MC2PVSF07 485 MC2PESF07 490 MC2RLSF07 520 MC2RVSF07 525 MC2RESF07 530
    MC2PLSF08 680 MC2PVSF08 685 MC2PESF08 690 MC2RLSF08 730 MC2RVSF08 735 MC2RESF08 740
    MC2PLSF09 950 MC2PVSF09 955 MC2PESF09 960 MC2RLSF09 1020 MC2RVSF09 1025 MC2RESF09 1030
    MC3PLSF02 130 MC3PVSF02 135 MC3PESF02 140 MC3RLSF02 145 MC3RVSF02 150 MC3RESF02 155
    MC3PLSF03 165 MC3PVSF03 170 MC3PESF03 175 MC3RLSF03 180 MC3RVSF03 185 MC3RESF03 190
    MC3PLSF04 215 MC3PVSF04 220 MC3PESF04 225 MC3RLSF04 235 MC3RVSF04 240 MC3RESF04 245
    MC3PLSF05 295 MC3PVSF05 300 MC3PESF05 305 MC3RLSF05 320 MC3RVSF05 325 MC3RESF05 330
    MC3PLSF06 390 MC3PVSF06 395 MC3PESF06 400 MC3RLSF06 420 MC3RVSF06 425 MC3RESF06 430
    MC3PLSF07 540 MC3PVSF07 545 MC3PESF07 550 MC3RLSF07 580 MC3RVSF07 585 MC3RESF07 590
    MC3PLSF08 780 MC3PVSF08 785 MC3PESF08 790 MC3RLSF08 840 MC3RVSF08 845 MC3RESF08 850
    MC3PLSF09 1120 MC3PVSF09 1125 MC3PESF09 1130 MC3RLSF09 1200 MC3RVSF09 1205 MC3RESF09 1210
