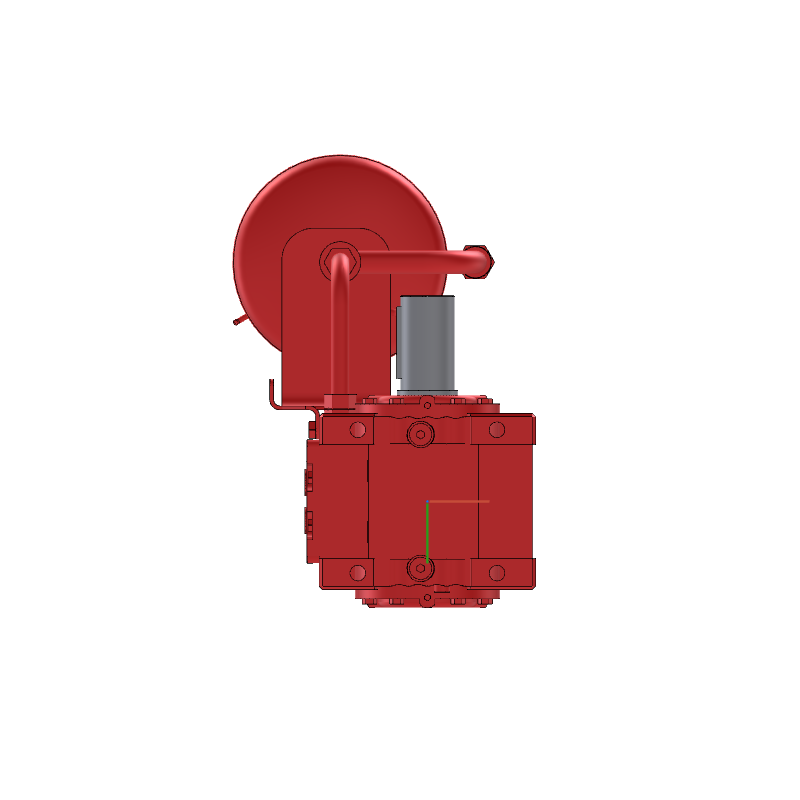

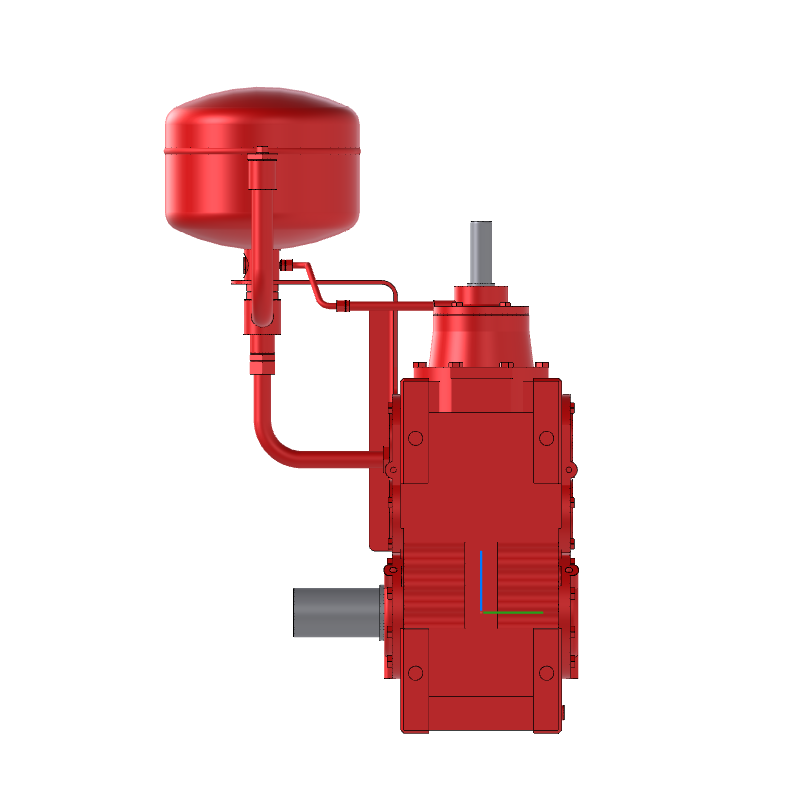

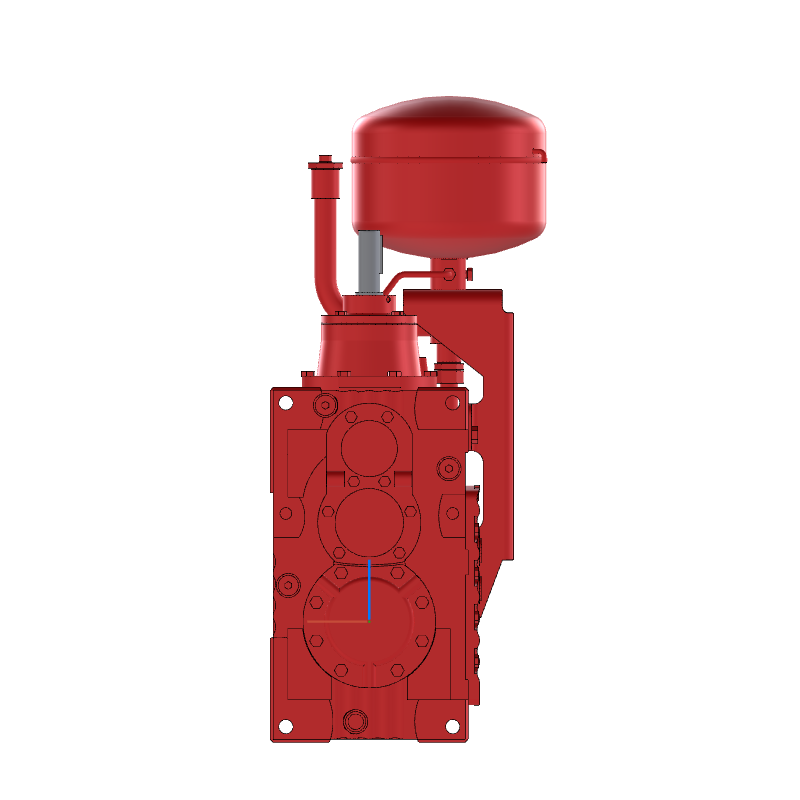

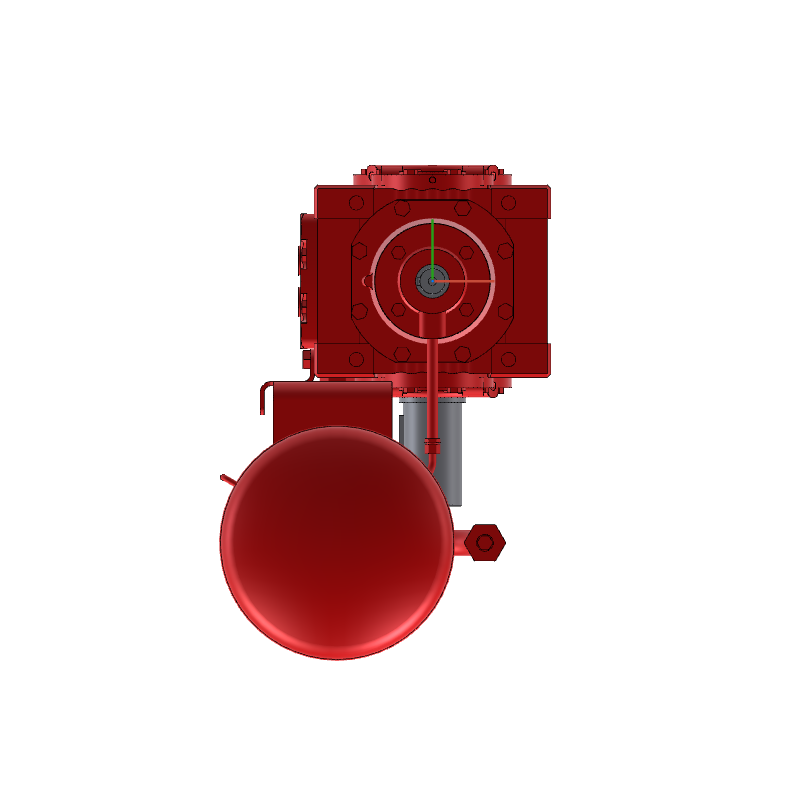

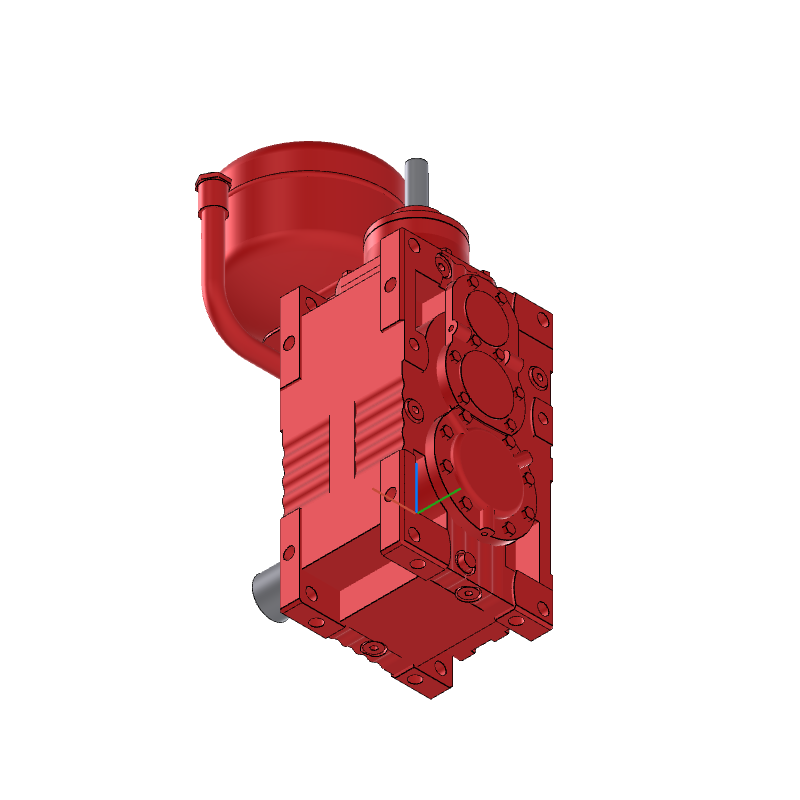

SEW MC3RESF02–MC3RESF09 are high-performance integrated gear reducers belonging to the MC series of industrial gearboxes, specifically designed to meet the rigorous demands of medium to heavy-duty power transmission in global industrial machinery sectors. Covering a complete range of frame sizes from MC3RESF02 to MC3RESF09, these gear reducers integrate advanced gearbox technology with robust structural design, making them a versatile and reliable choice for various industrial applications, including conveyor systems, mixers, agitators, material handling equipment, and other heavy-duty mechanical equipment.
As professional industrial gearboxes, the MC3RESF02–MC3RESF09 reducers adopt a monoblock, split-free housing structure, which ensures exceptional structural rigidity and stability. This design effectively withstands high radial and axial loads during long-term continuous operation, reducing structural deformation and greatly extending the overall service life of the gear reducer. The precision-machined helical gears inside the gearbox ensure smooth power transmission, high efficiency, and low noise, minimizing energy loss and improving the operational efficiency of the entire transmission system.
Core advantages of these gear reducers include superior load-bearing capacity, supported by an optimized bearing system that enhances stability under heavy-duty working conditions. Their modular design allows flexible integration with various motors, backstops, and other accessories, simplifying installation, daily maintenance, and future upgrades. Equipped with advanced sealing technology, the gearbox effectively prevents oil leakage, ensuring reliable operation even in harsh industrial environments with dust, humidity, or extreme temperatures.
Compliant with international industrial machinery standards, the MC3RESF02–MC3RESF09 gear reducers fully meet the strict demands of foreign industrial customers for reliability, durability, and safety. With a torque range perfectly matched to industrial needs and a compact structure that saves installation space, these gear reducers serve as trusted solutions for efficient, stable, and long-lasting power transmission in various industrial sectors worldwide.
| MC.PL..series | kg | MC.PV..series | kg | MC.PE..series | kg | MC.RL..series | kg | MC.RV..series | kg | MC.RE..series | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MC2PLSF02 | 115 | MC2PVSF02 | 120 | MC2PESF02 | 125 | MC2RLSF02 | 130 | MC2RVSF02 | 135 | MC2RESF02 | 140 |
| MC2PLSF03 | 145 | MC2PVSF03 | 150 | MC2PESF03 | 155 | MC2RLSF03 | 160 | MC2RVSF03 | 165 | MC2RESF03 | 170 |
| MC2PLSF04 | 190 | MC2PVSF04 | 195 | MC2PESF04 | 200 | MC2RLSF04 | 210 | MC2RVSF04 | 215 | MC2RESF04 | 220 |
| MC2PLSF05 | 260 | MC2PVSF05 | 265 | MC2PESF05 | 270 | MC2RLSF05 | 285 | MC2RVSF05 | 290 | MC2RESF05 | 295 |
| MC2PLSF06 | 350 | MC2PVSF06 | 355 | MC2PESF06 | 360 | MC2RLSF06 | 380 | MC2RVSF06 | 385 | MC2RESF06 | 390 |
| MC2PLSF07 | 480 | MC2PVSF07 | 485 | MC2PESF07 | 490 | MC2RLSF07 | 520 | MC2RVSF07 | 525 | MC2RESF07 | 530 |
| MC2PLSF08 | 680 | MC2PVSF08 | 685 | MC2PESF08 | 690 | MC2RLSF08 | 730 | MC2RVSF08 | 735 | MC2RESF08 | 740 |
| MC2PLSF09 | 950 | MC2PVSF09 | 955 | MC2PESF09 | 960 | MC2RLSF09 | 1020 | MC2RVSF09 | 1025 | MC2RESF09 | 1030 |
| MC3PLSF02 | 130 | MC3PVSF02 | 135 | MC3PESF02 | 140 | MC3RLSF02 | 145 | MC3RVSF02 | 150 | MC3RESF02 | 155 |
| MC3PLSF03 | 165 | MC3PVSF03 | 170 | MC3PESF03 | 175 | MC3RLSF03 |
| MC.PL..series | kg | MC.PV..series | kg | MC.PE..series | kg | MC.RL..series | kg | MC.RV..series | kg | MC.RE..series | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MC2PLSF02 | 115 | MC2PVSF02 | 120 | MC2PESF02 | 125 | MC2RLSF02 | 130 | MC2RVSF02 | 135 | MC2RESF02 | 140 |
| MC2PLSF03 | 145 | MC2PVSF03 | 150 | MC2PESF03 | 155 | MC2RLSF03 | 160 | MC2RVSF03 | 165 | MC2RESF03 | 170 |
| MC2PLSF04 | 190 | MC2PVSF04 | 195 | MC2PESF04 | 200 | MC2RLSF04 | 210 | MC2RVSF04 | 215 | MC2RESF04 | 220 |
| MC2PLSF05 | 260 | MC2PVSF05 | 265 | MC2PESF05 | 270 | MC2RLSF05 | 285 | MC2RVSF05 | 290 | MC2RESF05 | 295 |
| MC2PLSF06 | 350 | MC2PVSF06 | 355 | MC2PESF06 | 360 | MC2RLSF06 | 380 | MC2RVSF06 | 385 | MC2RESF06 | 390 |
| MC2PLSF07 | 480 | MC2PVSF07 | 485 | MC2PESF07 | 490 | MC2RLSF07 | 520 | MC2RVSF07 | 525 | MC2RESF07 | 530 |
| MC2PLSF08 | 680 | MC2PVSF08 | 685 | MC2PESF08 | 690 | MC2RLSF08 | 730 | MC2RVSF08 | 735 | MC2RESF08 | 740 |
| MC2PLSF09 | 950 | MC2PVSF09 | 955 | MC2PESF09 | 960 | MC2RLSF09 | 1020 | MC2RVSF09 | 1025 | MC2RESF09 | 1030 |
| MC3PLSF02 | 130 | MC3PVSF02 | 135 | MC3PESF02 | 140 | MC3RLSF02 | 145 | MC3RVSF02 | 150 | MC3RESF02 | 155 |
| MC3PLSF03 | 165 | MC3PVSF03 | 170 | MC3PESF03 | 175 | MC3RLSF03 | 180 | MC3RVSF03 | 185 | MC3RESF03 | 190 |
| MC3PLSF04 | 215 | MC3PVSF04 | 220 | MC3PESF04 | 225 | MC3RLSF04 | 235 | MC3RVSF04 | 240 | MC3RESF04 | 245 |
| MC3PLSF05 | 295 | MC3PVSF05 | 300 | MC3PESF05 | 305 | MC3RLSF05 | 320 | MC3RVSF05 | 325 | MC3RESF05 | 330 |
| MC3PLSF06 | 390 | MC3PVSF06 | 395 | MC3PESF06 | 400 | MC3RLSF06 | 420 | MC3RVSF06 | 425 | MC3RESF06 | 430 |
| MC3PLSF07 | 540 | MC3PVSF07 | 545 | MC3PESF07 | 550 | MC3RLSF07 | 580 | MC3RVSF07 | 585 | MC3RESF07 | 590 |
| MC3PLSF08 | 780 | MC3PVSF08 | 785 | MC3PESF08 | 790 | MC3RLSF08 | 840 | MC3RVSF08 | 845 | MC3RESF08 | 850 |
| MC3PLSF09 | 1120 | MC3PVSF09 | 1125 | MC3PESF09 | 1130 | MC3RLSF09 | 1200 | MC3RVSF09 | 1205 | MC3RESF09 | 1210 |
