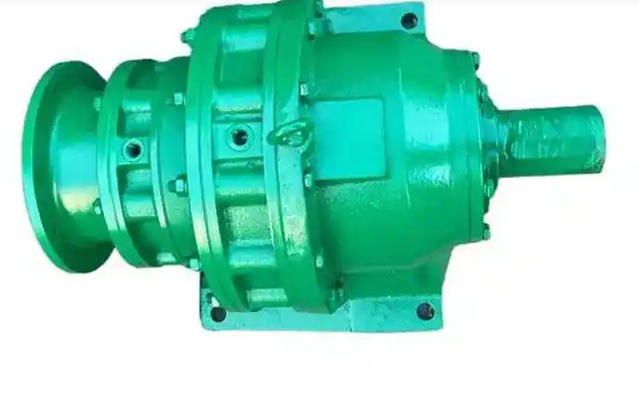

Advantages of adapting cycloidal pinwheel reducer to wire drawing machine: high overload, preferred for rough drawing process

1. Extremely strong resistance to overload and impact

In the production process of wire drawing machines, especially in the rough drawing process, the equipment often faces high loads, frequent starts and stops, and large load fluctuations. The cycloidal pinwheel reducer performs excellently in this regard:

Multi tooth meshing disperses load: The meshing between the cycloid gear and the needle teeth is usually a multi tooth simultaneous contact (about 30%~50% of the teeth participate in the meshing), and the load is evenly dispersed with low unit tooth surface pressure.

Material and structural advantages: The core components are made of high-strength alloy cast iron or ductile iron, combined with surface hardened bearing steel needle teeth, which can withstand large impact loads.

High overload ratio: Its overload capacity is usually 2-3 times that of ordinary gear reducers, which is very suitable for heavy-duty working conditions such as wire drawing machines, effectively buffering equipment transmission impact, solving problems such as heavy load slipping and start stop shaking.

2. Smooth operation, low noise and low vibration

The wire drawing operation requires extremely high stability of the equipment, and the cycloidal pinwheel reducer can provide smooth power transmission:

Mechanical equilibrium design: The symmetrical arrangement of its double eccentric sleeves can effectively counteract most of the centrifugal force and reduce the vibration caused by eccentric motion.

Smooth meshing: Multi tooth meshing makes the impact and tooth friction during the transmission process smoother, and the operating noise is usually below 70 decibels, much lower than traditional gear reducers.

Stable torque output: Stable torque output helps reduce torque fluctuations in the transmission system, ensure the accuracy of the wire drawing process, and prevent problems such as tangled wires.

3. Compact structure and high transmission efficiency

Wire drawing machines often require high-power transmission within a limited space, and cycloidal pinwheel reducers perfectly meet this requirement:

Small size and light weight: Adopting the principle of planetary transmission, the input and output shafts are arranged coaxially. Compared with traditional two-stage cylindrical gear reducers, its volume can be reduced by more than 2/3 and its weight can be reduced by about 1/3. It is very suitable for space limited equipment such as wire drawing machines.

Efficient and energy-saving: Adopting rolling meshing technology, the tooth surface has no relative sliding, and the single-stage transmission efficiency can usually reach 90%~95% or more, which can effectively reduce energy consumption in long-term continuous operation.

4. Long lifespan and low maintenance cost

High wear resistance: All contact parts are mostly rolling friction, and key components are precision machined through high-frequency quenching, with high hardness, wear resistance, and durability. The service life is usually 2-3 times longer than that of ordinary reducers.
