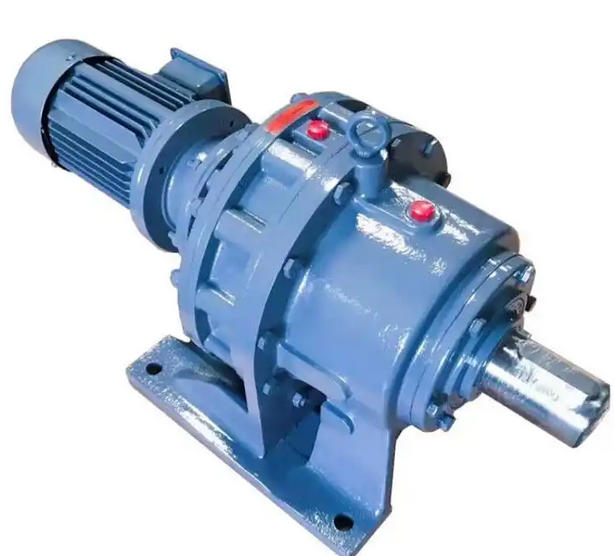

What performance degradation can be caused by wear of the output shaft in BWE42-187-2.2 cycloidal pinwheel reducer

The wear of the output shaft will significantly affect the transmission accuracy, operational stability, and service life of the BWE42-187-2.2 cycloidal pinwheel reducer. If not dealt with in a timely manner, it will cause chain failures.

1、 Core performance degradation performance

1. Reduced transmission efficiency
After the output shaft wears out, the clearance between it and the coupling or flange increases, resulting in "slip" or "micro wear" during power transmission, and some energy is dissipated in the form of frictional heat and vibration. Actual test data shows that when the fit clearance exceeds 0.1mm, the transmission efficiency can decrease by 5% to 12%.

2. Increased vibration and noise
The wear of the shaft neck causes rotational imbalance, leading to periodic centrifugal force and exceeding the vibration speed of the entire machine. According to ISO standards, the vibration speed of the cycloidal pinwheel reducer should be ≤ 6.3mm/s, and when it is severely worn, it can reach 7.2mm/s or more, far exceeding the safety threshold. At the same time, the meshing impact frequency increases, and the noise level rises from normal 75dB to above 88dB (A).

3. Increased fluctuation in output torque
Wear and tear result in poor alignment between the shaft and the load equipment, uneven torque transmission, and alternating "instantaneous overload idle" phenomenon. This fluctuation can subject the cycloidal gear root to alternating stress, accelerate fatigue crack propagation, and usually pose a risk of root fracture within 1-3 months.

4. Sealing failure and lubrication deterioration
The wear of the shaft neck damages the pre tightening force of the oil seal lip, resulting in lubricant leakage. Data shows that the leakage rate can reach 50-100mL per hour, which not only pollutes the environment, but also causes dry wear of bearings due to insufficient lubrication, and the temperature quickly rises above 90 ℃, resulting in secondary faults such as oil carbonization and bearing locking.

5. Decreased equipment reliability
The output shaft, as the power output end, directly affects the operational reliability of the entire machine. After wear and tear, it is easy to cause loosening of the anchor bolts and displacement of the machine base, which in turn affects the deformation of the drive shaft of the driven equipment and forms a chain failure in the production line.

2、 Fault development path and monitoring suggestions

It is recommended to combine vibration spectrum analysis with oil ferrography detection for state assessment: when the iron content exceeds 50ppm or the proportion of vibration 1X amplitude exceeds 75%, it indicates abnormal wear and requires immediate shutdown for maintenance.
