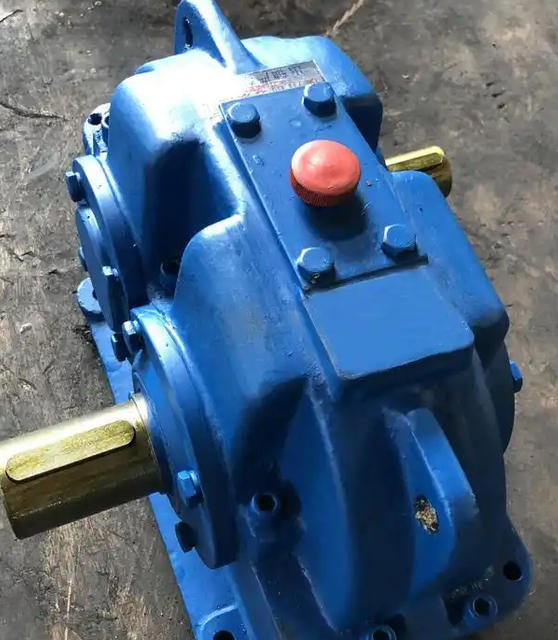

How does the lubrication method of ZDY125-3.15-1 gear reducer affect its performance and service life

1、 The performance impact of mainstream lubrication methods

ZDY125 belongs to a single-stage hard tooth surface reducer, with a gear circumferential speed usually ≤ 20m/s. The industry mainstream uses oil bath/splash lubrication, and high-speed heavy load conditions can be upgraded to oil spray lubrication. The impact of the two methods on performance is significantly different:

1. Oil bath/splash lubrication: relying on the immersion of the large gear into the oil pool to lift the lubricating oil, the oil is thrown to the tooth surface and bearing parts. The structure is simple and does not require an additional oil supply system, with low maintenance costs. It can form a continuous and stable oil film, effectively reducing the contact stress on the tooth surface, and is suitable for the conventional medium and low-speed working conditions of this model. However, this method has limited heat dissipation capacity. When the gears stir the oil during high-speed operation, additional oil stirring losses will occur, and the oil temperature is prone to exceed the standard. Long term operation will accelerate the oxidation and deterioration of the oil.

2. Spray lubrication: By accurately spraying pressure oil into the gear meshing area through the oil pump, the heat dissipation efficiency can be greatly improved, and the frictional heat can be carried away in a timely manner. At the same time, the metal debris generated by the wear of the tooth surface is continuously washed away, keeping the oil clean. This can enable the model to maintain a stable oil film under high load conditions, significantly improving its load-bearing capacity and transmission efficiency. But this method requires supporting oil supply pipelines and filtration systems, which is more complex to maintain.

2、 Key role in the lifespan of core components

Different lubrication methods directly determine the service life of core components such as gears and bearings:

1. Gear pair life: Reasonable lubrication can form an elastic fluid dynamic pressure oil film between the hard tooth surfaces, completely separating the metal contact surfaces, converting dry friction into fluid friction, reducing tooth surface wear rate by more than 70%, avoiding tooth surface pitting, bonding, and peeling, and extending gear life by 2-3 times. If the lubrication method is not selected properly, oil film rupture can directly cause rapid wear of the tooth surface, and even lead to tooth breakage failure.

2. Bearing lifespan: The support bearings of ZDY125 rely on splashing oil or forced oil supply for lubrication. Adequate lubricating oil can continuously remove the frictional heat between the bearing rolling elements and the raceway, control the operating temperature within the safe threshold of 80 ℃, and avoid bearing overheating and burning. The bearing lifespan can be increased by more than three times. When the lubrication is insufficient, the bearing will quickly produce abnormal noise and vibration exceeding the standard, and the shaft will be burnt out in a short period of time.

3、 The comprehensive impact on the overall operational performance of the machine

1. Transmission efficiency: The stirring loss of oil bath lubrication will consume an additional 5% to 8% of the transmission power, while oil injection lubrication can accurately control the oil supply amount, greatly reducing ineffective stirring loss. The overall transmission efficiency of the machine remains stable at over 98%, reducing unnecessary energy consumption losses.

2. Stability of operation: Good lubrication can effectively buffer gear meshing impact, reduce operating noise and vibration amplitude, avoid secondary faults such as loosening of fasteners and shaft movement caused by excessive vibration, and significantly improve the smoothness of equipment operation.

3. Adaptability to working conditions: Within a wide temperature range of -40~45 ℃, a reasonable lubrication method combined with L-CKD 220 # extreme pressure gear oil of appropriate viscosity can ensure that the model can start and operate normally in both high and low temperature environments, avoiding problems such as dry friction during low-temperature start-up and rupture of high-temperature oil film.
