Interpretation of Model and Introduction to Structure and Materials of ZJY150-25-L Shaft mounted Reducer

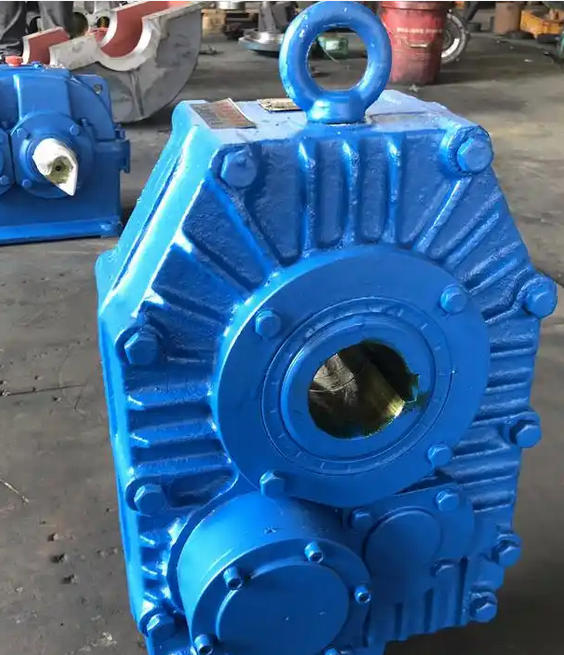

ZJY150-25-L is a shaft mounted hard toothed cylindrical gear reducer widely used in the transmission system of mechanical equipment such as belt conveyors and bucket elevators. Below, we will provide a detailed explanation of its model meaning and introduce its structural characteristics and core materials.

1、 Model Interpretation

1. ZJY: Shaft mounted cylindrical gear hard tooth surface reducer;

2. 150: The center distance of the low-speed stage is 150 mm;

3. 25: nominal transmission ratio i=25;

4. L: It can operate in both directions facing the input shaft (without a backstop; N is counterclockwise unidirectional, S is clockwise unidirectional, with a backstop).

2、 Structure and Material

1. Installation form: The hollow output shaft is directly hung on the input shaft of the host, connected by a expansion ring without a key, and fixed to the shaft seat with an adjustable pull rod, eliminating the need for an installation base and coupling; Under the same torque, the weight is only about 30% of the traditional ZJ type;

2. Gear system: High quality alloy steel, carburizing and quenching+grinding teeth, tooth surface hardness 54-62 HRC, accuracy up to level 6, smooth transmission, low noise;

3. Lubrication and cooling: Conventional oil pool lubrication and natural cooling; When the heat load is high, circulating oil or fan/cooling coil auxiliary cooling can be selected.

3、 Core technical parameters

Input speed: ≤ 1500 r/min;

Working temperature: -40 ℃ to+45 ℃; Before starting below 0 ℃, the lubricating oil must be preheated to above 10 ℃;

Transmission efficiency: total efficiency ≥ 0.96;

Standard execution: JB/T 7007 series standards;

Applicable working conditions: It can operate in both forward and reverse directions (L-shaped). If one-way anti reverse is required, an N/S-type version with backstop can be customized.
