Reducer for chemical machinery supporting BLD4-35-7.5KW cycloidal reducer with compact structure

In the modern industrial field, chemical machinery, as an important production equipment, plays a crucial role in the entire production process with its efficient and stable operation. Among them, as a key supporting equipment of chemical machinery, the performance of the reducer directly affects the operating efficiency and service life of the machinery. This article will provide a detailed discussion on the structural compactness of the BLD4-35-7.5KW cycloidal reducer, in order to provide readers with an opportunity to gain a deeper understanding of the product.
1、 Overview of BLD4-35-7.5KW Cycloid Reducer

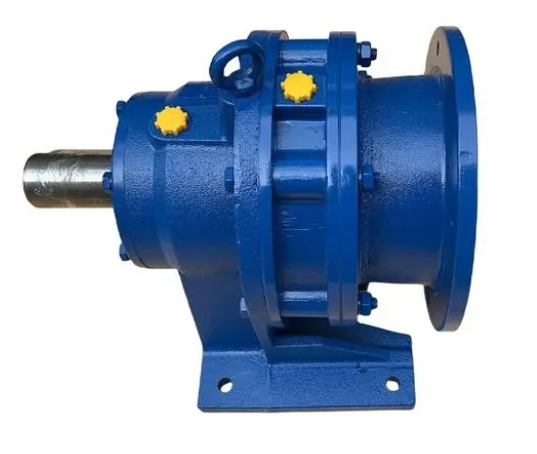

BLD4-35-7.5KW cycloidal reducer is a widely used transmission equipment in chemical, metallurgical, mining, power and other fields. This reducer adopts the principle of cycloidal pinwheel transmission, which reduces the motor speed and increases the torque by changing the speed ratio between the input shaft and the output shaft, in order to meet the power requirements under different working conditions. Its rated power is 7.5KW, with a reduction ratio of 35, suitable for use with various chemical machinery.
2、 The Importance of Compact Structure
In chemical machinery supporting equipment, structural compactness is a very important indicator. A compact structural design can not only save space and reduce equipment footprint, but also improve the overall performance of the equipment. For BLD4-35-7.5KW cycloidal reducer, the compactness of the structure is mainly reflected in the following aspects:
1. Small size and light weight: By optimizing the internal structural design, the reducer can maintain high performance while being smaller in size and lighter in weight, making it easier to install and transport.
2. High transmission efficiency: The compact structural design allows the transmission components inside the reducer to fit more tightly, reducing energy loss and improving transmission efficiency.
3. Good heat dissipation performance: The compact structural design makes it easier for the internal heat of the reducer to dissipate, maintaining the stability of the equipment during long-term operation.
3、 Structural characteristics of BLD4-35-7.5KW cycloidal reducer
1. Principle of cycloidal pinwheel transmission: The BLD4-35-7.5KW cycloidal reducer adopts the principle of cycloidal pinwheel transmission, which has the advantages of large transmission ratio, high transmission efficiency, and compact structure. The cycloidal pinwheel transmission achieves power transmission and speed ratio changes through the meshing of the cycloidal pinwheel and the needle gear housing, and has a large load-bearing capacity.
2. Box design: The gearbox box is made of high-strength cast iron material, which has good rigidity and stability. The internal structure design of the box is reasonable, making the transmission components run more smoothly, reducing vibration and noise.
3. Transmission components: The transmission components of the reducer include input shaft, output shaft, cycloidal pinwheel, needle gear housing, etc. These components are made of high-quality materials and have undergone precision machining and heat treatment, resulting in high wear resistance and corrosion resistance.
4. Lubrication system: The reducer adopts an advanced lubrication system, which delivers lubricating oil to various transmission parts through an oil pump to achieve lubrication and cooling functions. At the same time, the lubrication system is also equipped with oil level indicators and temperature alarms, which are convenient for users to observe and maintain。
