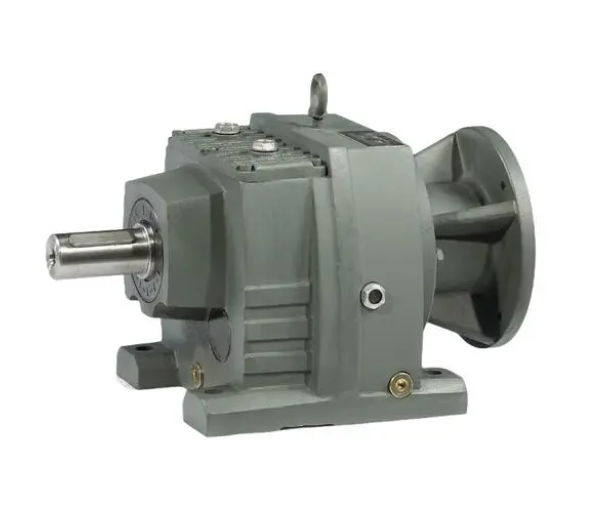

Parameters of R187DM315S4-23.34-M1 Hardened helical gear reducer
Due to the fact that the parameters of the R187DM315S4-23.34-M1 hard tooth helical gear reducer involve multiple aspects, I will describe it from the following aspects:
1、 Overview of gearbox
A reducer is an important device that transfers the power of an electric motor or engine to mechanical equipment. It drives mechanical equipment by reducing speed and increasing torque. Gearboxes are widely used in many fields, such as industry, agriculture, transportation, etc. The R187DM315S4-23.34-M1 hard tooth helical gear reducer, as a type of reducer, is widely used due to its high transmission efficiency, large transmission ratio, and long service life.
2、 Detailed explanation of the parameters of the R187DM315S4-23.34-M1 hard tooth surface helical gear reducer
The letters and numbers in the model of R187DM315S4-23.34-M1 hard tooth helical gear reducer have specific meanings. R represents the reducer, 187 represents the center distance of the reducer, DM represents the diameter of the input shaft, 315 represents the diameter of the output shaft, S4 represents the transmission ratio of the reducer, 23.34 represents the rated power of the reducer, and M1 represents the installation method of the reducer.
1. Center distance: Center distance is an important parameter of a reducer, which determines the transmission ratio and load-bearing capacity of the reducer. The larger the center distance, the greater the transmission ratio and stronger the load-bearing capacity of the reducer. The center distance of the R187DM315S4-23.34-M1 hard tooth helical gear reducer is 187mm.
2. Input shaft diameter: The input shaft diameter refers to the diameter of the shaft at the input end of the gearbox. The input shaft diameter of the R187DM315S4-23.34-M1 hard tooth helical gear reducer is DM, and its specific value may vary depending on different specifications.
3. Output shaft diameter: The output shaft diameter refers to the diameter of the shaft at the output end of the gearbox. The output shaft diameter of the R187DM315S4-23.34-M1 hard tooth helical gear reducer is 315mm.
4. Transmission ratio: The transmission ratio refers to the ratio of the input speed to the output speed of the gearbox. The transmission ratio of R187DM315S4-23.34-M1 hard tooth helical gear reducer is S4, and its specific value may vary depending on different specifications.
5. Rated power: Rated power refers to the power that the gearbox can withstand during normal operation. The rated power of the R187DM315S4-23.34-M1 hard tooth helical gear reducer is 23.34kW.
6. Installation method: The installation method refers to the way the gearbox is installed. The installation method of R187DM315S4-23.34-M1 hard tooth helical gear reducer is M1, and the specific installation method may vary depending on different specifications.
