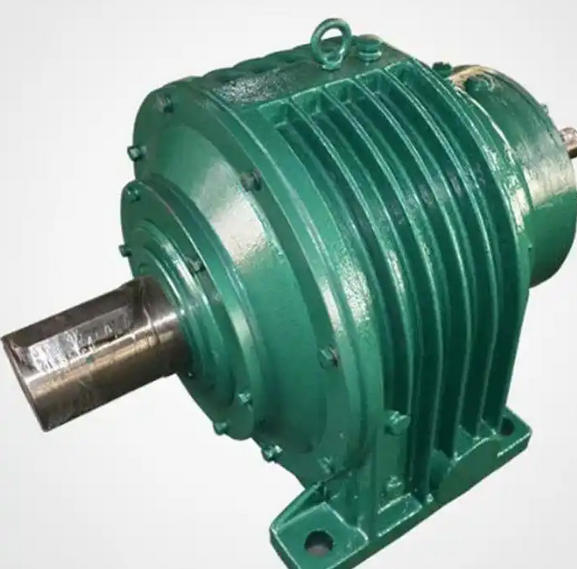

What are the preventive measures for cracking of NGW11-6.3 planetary gear reducer base

To prevent cracking of the NGW11-6.3 planetary gear reducer base, the core is to control the entire process from "source design, standardized installation, reasonable operation, and regular maintenance" to avoid excessive stress or fatigue damage to the base.
Prevention during the design and production stages

Optimize the structure of the machine base, add reinforcing ribs at stress concentration points such as bolt holes and bearing seats, and calculate and appropriately increase the wall thickness of key parts according to actual working conditions.

Select high-strength cast iron or steel that meets the requirements, and control internal defects such as sand holes and pores in castings. Complete aging treatment to eliminate internal stress before leaving the factory.

Improve machining accuracy, ensure the flatness and dimensional tolerances of installation and mating surfaces, and avoid gaps or uneven stress after assembly.

Installation and assembly specifications

The installation surface should be flat and clean, and shims should be used to level it if necessary. The anchor bolts should be tightened evenly according to the specified torque, and over tightening or uneven tightening is prohibited.

Strictly calibrate the coaxiality of input/output shafts, control deviations within the technical parameters of the equipment, and reduce additional radial forces during operation.

During the assembly process, avoid hard knocking and smashing, use specialized tools to assist in installation, and protect the machine base and mating surfaces from damage.

Operation and working condition control

Overloading operation is strictly prohibited to avoid frequent start stop and severe impact loads. If complex working conditions need to be addressed, buffering or overload protection devices can be installed.

Control equipment operation vibration, regularly check gear meshing status and bearing wear, and replace aging or damaged components in a timely manner.

Strengthen protection in harsh environments (high temperature, humidity, and high dust) to avoid thermal stress caused by corrosion or temperature changes on the machine base.

Daily maintenance and monitoring

Regularly inspect the appearance of the machine base, focusing on checking whether there are cracks, deformations, and other signs in the stress concentration areas. If any abnormalities are found, stop the machine in a timely manner for handling.

Regularly tighten the anchor bolts to prevent them from loosening after long-term operation and causing the machine base to experience unbalanced stress.

Establish equipment operation records, record load changes and maintenance status, and provide a basis for subsequent working condition adjustments and maintenance.
