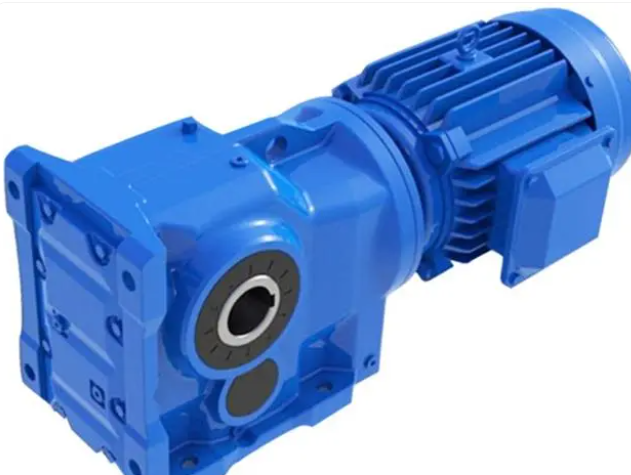

Helical spiral bevel gear reducer suitable for three-in-one function of crane translation vehicle KA37-KA167

SWX adopts advanced computer-aided design precision CNC machine tools to produce the K series helical bevel gear reducer, which has a compact vertical output structure, a reducer efficiency of over 95%, and low energy consumption; The gears are made of high-quality 20CrMnTi alloy forged steel, with carburizing and heat treatment on the tooth surface. The hard tooth surface transmits torque and has a long service life, high-precision gear grinding, and low noise; Steel cast iron casing, K-series helical bevel gear reducer can be equipped with multiple types of motors, with a basic speed ratio range of 5.36-197.37. The K-series/R series combination can reach 32625, forming an electromechanical integration.
Performance characteristics:
1. Installation method: Flat key hollow shaft installation with torsion arm
2. Input methods: motor direct connection, shaft input, and flange input.
3. Can be combined with the R series to achieve a larger speed ratio
Technical parameters:
Torque range: 200~50000 Nm
Power range: 0.18~200 kw
Structural form:
K-axis extension and foot installation
KA shaft mounted connection
KF shaft extension, flange installation
KAF - shaft mounted, flange mounted
S - represents axis input
