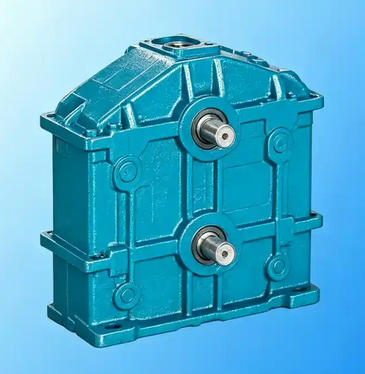

Detailed explanation of the core principle and structural advantages of LLSH series three ring reducer

In the field of industrial transmission, the performance of the reducer directly determines the operational stability of the entire equipment. The LLSH series three ring reducer, as a classic model in the three ring transmission system, has become the preferred equipment for heavy-duty scenarios such as mining, metallurgy, and chemical industry due to its unique transmission structure. Today, we will comprehensively analyze the core advantages of this device from two dimensions: principle and structure.

1. The LLSH series three ring reducer adopts the parallel axis dynamic axis three ring transmission principle. The core components include one low-speed output shaft, two high-speed input shafts, and three drive ring plates. The three shafts are arranged in parallel, and the three ring plates maintain a phase difference of 120 ° for planar motion. When working, the high-speed shaft drives the ring plate to operate, and the inner teeth of the ring plate form internal meshing with the outer teeth of the low-speed shaft. Power transmission is achieved through multi tooth meshing, converting high-speed motion into low-speed high torque output. This transmission structure belongs to China's independently developed low tooth difference transmission technology, which integrates the dual characteristics of planetary reducers and parallel axis gear reducers.

2. From the perspective of structural design, the LLSH series three ring gearbox is full of highlights. Firstly, multiple teeth mesh simultaneously, and 9-18 pairs of teeth participate in the transmission synchronously during operation. This not only greatly improves the equipment's load-bearing capacity, but also allows for an instantaneous overload capacity of up to 2.7 times the rated torque. It can also disperse gear wear and extend the overall service life of the machine. Secondly, it has a compact structure. Under the same output torque, its volume and weight are much smaller than traditional multi-stage gear reducers, effectively saving equipment installation space and adapting to various space limited working conditions.

3. In addition, the series of reducers have a three-axis independent layout, and each shaft end can transmit power separately or synchronously, expanding the usage scenarios of the equipment. The box adopts an integrated reinforcement design, combined with precision machined transmission components, resulting in low vibration amplitude during operation, noise can be controlled within 78dB, and the smoothness of operation far exceeds that of ordinary reducers.

Compared to traditional equipment such as cycloidal pinwheel reducers and worm reducers, the LLSH series three ring reducers have outstanding performance in transmission efficiency, load-bearing capacity, and maintenance costs.
