What problems can be caused by tilting the centerline of the gearbox shaft

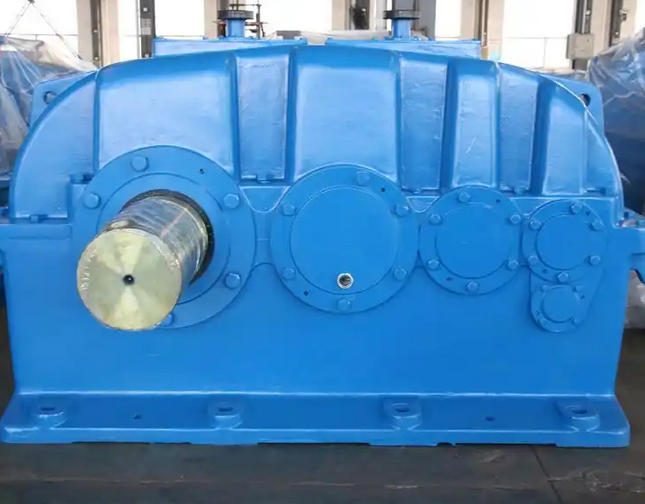

The inclination of the centerline of the reducer shaft (also known as coaxiality deviation or axis misalignment) can damage the ideal operating state of the equipment, trigger a series of chain reactions, and seriously shorten the service life of the reducer. Specifically, it will lead to the following major types of problems:

1. Increased wear and sudden drop in lifespan of core components

Early failure of bearings: The inclination of the shaft centerline will generate additional bending moments, forcing the bearing to withstand radial or axial forces beyond its design. This can lead to excessive local stress on the bearing raceway and ball bearings, resulting in uneven wear, pitting, and even peeling. There is data showing that an increase in load due to misalignment may reduce bearing life by more than 50%.

Abnormal gear wear: Tilting can cause the gear meshing surface to be unable to fully contact, resulting in a situation where the "tooth surface edge is loaded". Contact stress is highly concentrated in a small area of the tooth surface, which can easily lead to pitting, bonding, and even cause root fatigue cracks and tooth breakage in severe cases.

2. Lubrication failure and abnormal temperature rise

Oil film damage: Axis tilt can damage the integrity of the lubricating oil film between gears and bearings, resulting in some areas being in a boundary lubrication or even dry friction state.

Heat accumulation: The intensification of friction will generate a large amount of heat, causing a significant increase in local or overall temperature of the gearbox. High temperature not only accelerates the oxidation and deterioration of lubricating oil, but also may cause tempering and softening of bearing steel, further accelerating component damage.

3. Significant increase in vibration and noise

Impact load: When gears enter and exit meshing, periodic impact loads are generated due to sudden changes in center distance.

Vibration noise: This impact and uneven force can directly cause the gearbox to produce harsh noise and severe vibration. Long term vibration not only affects the stability of equipment operation, but may also cause structural damage such as loosening of foundation bolts and fatigue cracks in the shell.

4. Decrease in transmission accuracy and efficiency

Efficiency reduction: Additional friction and uneven stress will consume a large amount of energy, resulting in a significant decrease in mechanical transmission efficiency and unnecessary energy loss.

Accuracy loss: For high-precision reducers (such as RV reducers and harmonic reducers used in robots), axis tilt can cause an increase in return clearance (backlash), periodic fluctuations in output speed and torque, directly leading to inaccurate equipment positioning and delayed response.

5. Sealing failure and oil leakage risk

Oil seal wear: Axis tilt can cause the rotation trajectory of the output shaft to deviate, resulting in excessive local pressure or loose fitting of the oil seal lip, accelerating the wear and aging of the seal.

Oil leakage and pollution: After the seal fails, the lubricating oil inside is prone to leakage outward; At the same time, external pollutants such as dust and moisture are also prone to invade the interior of the machine, forming "abrasive wear" and causing secondary damage to gears and bearings.

To avoid the above problems, it is recommended to use precision tools such as laser alignment instruments to strictly control the coaxiality of the axis during the installation and maintenance of the reducer, and regularly check the tightening of the anchor bolts as well as the vibration and temperature rise status of the equipment.
