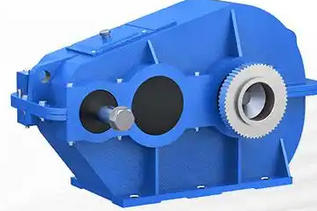

What key parameters are easily overlooked in the selection of ZQ series cylindrical gear reducers

When selecting ZQ series cylindrical gear reducers, in addition to basic power and transmission ratio, the following key parameters are easily overlooked, but they are crucial for the long-term stable operation of the equipment.

1、 Transmission ratio: nominal value and actual value

The ZQ series gearbox samples are usually labeled with nominal transmission ratios (such as 20, 25, 31.5, 40, etc.), but this is not their accurate actual transmission ratio.

2、 Operating condition coefficient (service coefficient)

This is one of the most crucial and easily overlooked parameters in the selection process, which directly affects the service life and reliability of the gearbox.

The operating condition coefficient is easily overlooked: it only matches the rated torque of the reducer based on the theoretical working torque of the equipment, without considering the instantaneous overload situations such as impact and vibration that may occur during equipment startup, shutdown, or operation.

Calculation formula: Selection required torque=theoretical working torque x operating condition coefficient

For example, for loads with moderate impact, the operating coefficient may be taken as 1.5. If this coefficient is ignored, the gearbox will be at the edge of overload for a long time, which can easily lead to gear fatigue and tooth breakage, greatly shortening its service life.

3、 Axial extension load: radial and axial allowable forces

The force that the input shaft and output shaft of the reducer can withstand is limited, which is divided into radial force and axial force.

1. The easily overlooked point of shaft extension load: only focusing on torque and speed, while ignoring the additional tension or thrust generated by components connected to the reducer (such as pulleys, sprockets, gears, couplings, etc.) on the shaft.

2. Correct approach: When selecting, it is necessary to calculate the actual radial and axial forces acting on the shaft extension end, ensuring that they are less than the allowable radial and axial loads given in the gearbox sample.

Risk: If the actual load exceeds the standard, it may cause shaft bending deformation, premature bearing damage, oil seal leakage and other problems. For example, the ZQ350 model reducer allows a maximum radial force of 25kN and a maximum axial force of 5kN at the output shaft end.

4、 Thermal power and working environment

The gearbox generates heat during operation, and its heat dissipation capacity determines whether it can continue to operate in specific environments.

1. Easy to overlook points:

Environmental temperature: Ignoring the temperature of the device's operating environment. Standard reducers are typically suitable for environments ranging from -40 ℃ to+40 ℃. At higher temperatures (such as in metallurgical workshops) or lower temperatures, standard lubricants/oils may fail.

Continuous working system: For equipment that requires 24-hour continuous operation, if only torque selection is used and thermal power verification is ignored, it may cause the gearbox to shut down or be damaged due to overheating.

2. The correct approach:

In high or low temperature environments, it is necessary to communicate with suppliers to choose special lubricants or strengthen heat dissipation measures (such as installing fans and cooling coils).

For heavy-duty equipment that works continuously for a long time, thermal power verification is required to ensure that the heat dissipation capacity of the reducer is greater than the heat generated during its operation.

5、 Installation form and spatial dimensions

The ZQ series reducer has multiple installation and output shaft types, and the selection needs to be accurately matched with the equipment structure.
