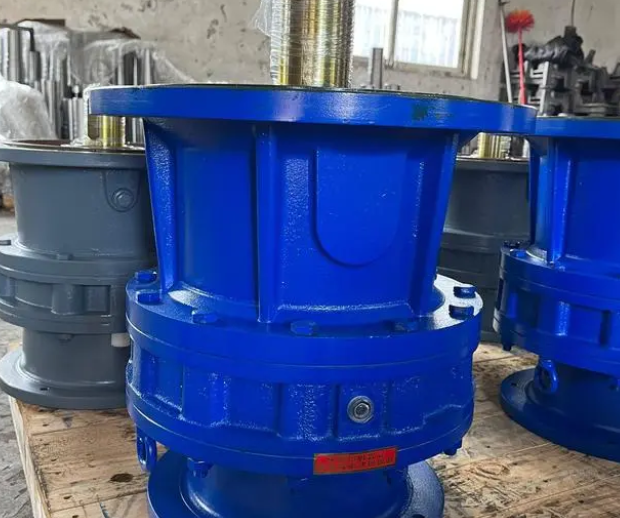

XWED118-289-11KW planetary cycloidal pinwheel reducer: comprehensive analysis and advantage analysis

Planetary cycloidal gear reducer is an efficient and precise mechanical transmission device widely used in various fields, including manufacturing, engineering machinery, automation equipment, etc. Among them, the XWED118-289-11KW planetary cycloidal pinwheel reducer has attracted much attention. This article will provide a detailed introduction and analysis from multiple aspects such as structure, working principle, advantages, etc.
The structure of a planetary cycloidal pinwheel reducer is very complex, mainly composed of a reducer, an electric motor, and an output shaft. Among them, the reducer is the core component that plays a role in transmitting and reducing speed. The XWED118-289-11KW model adopts advanced planetary cycloidal pinwheel design, which has higher transmission efficiency and smaller volume. This compact structure makes the installation and maintenance of the gearbox more convenient. In addition, planetary cycloidal gear reducers also have high load-bearing capacity and wear resistance, which can adapt to various harsh working conditions.
The working principle of a planetary cycloidal pinwheel reducer is to complete the transmission through the combination of planetary gears and cycloidal pinwheels. The planetary gear is composed of several planetary gears, which are fixed on the planetary carrier and mesh with the central cycloidal pinwheel gear. When the input shaft rotates, it drives the planetary gear to rotate. The planetary gear drives the cycloidal pinwheel to rotate, and the output shaft also rotates at the same time. This transmission method has high transmission efficiency and smooth operating characteristics.
The XWED118-289-11KW planetary cycloidal pinwheel reducer has many advantages. Firstly, it has high transmission efficiency and power density, and can achieve greater output torque in limited space. Secondly, the reducer adopts precise manufacturing technology and materials, which have high working reliability and stability, and can operate stably for a long time. In addition, the gearbox also has lower noise and vibration levels, which can provide a more comfortable and quiet working environment.
In addition to the above advantages, the XWED118-289-11KW planetary cycloidal pinwheel reducer also has various application scenarios. For example, in the manufacturing industry, it can be used for equipment such as machine tools and CNC machines to achieve high-precision motion control. In the field of engineering machinery, reducers can be used for equipment such as cranes and excavators, providing strong power output and load-bearing capacity. In automation equipment, reducers can be used for conveyors, packaging machines, and other equipment to achieve efficient material handling and packaging processes.
