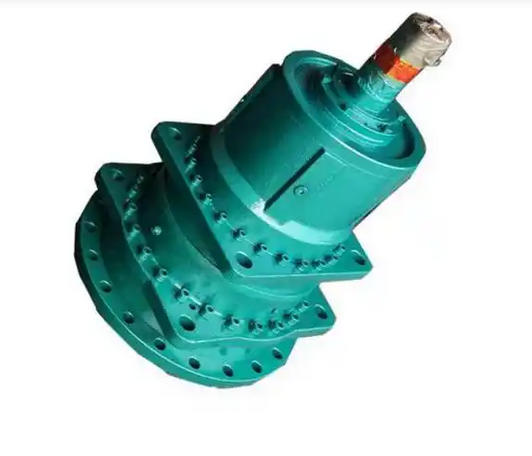

What are the steps for replacing the bearings of P3KD16-1500-B5-99-Y15 planetary gearbox

The replacement of bearings for the P3KD16-1500-B5-99-Y15 planetary gearbox requires following a professional disassembly and assembly process. The core steps include shutting down the machine, cutting off power, draining oil, disassembling and inspecting, replacing bearings, lubricating and resetting, and conducting a trial run. This model belongs to high-precision planetary gearboxes. Once the bearings fail, they are usually accompanied by irreversible internal damage. It is recommended to replace them as a whole first to ensure operational stability.

The detailed steps for replacing bearings are as follows:

1. Safe shutdown and cooling
Immediately stop the operation of the equipment and cut off the power supply, hang a warning sign reading "Equipment maintenance, no closing". Wait for the gearbox to cool naturally to a warm state (recommended below 40 ℃), which facilitates the flow of lubricating oil and safe operation.

2. Drain old oil
Open the oil drain plug and completely drain the contaminated or deteriorated lubricating oil from the box to prevent impurities from entering the gear system during disassembly. Collect waste oil into dedicated containers and keep the site clean.

3. Disassembly and Inspection

Remove the end cover and connecting components, and take out the gear set;

Clean the bearing seat and rolling parts with kerosene, and check whether the raceway and ball bearings have discoloration (such as blue/brown), peeling or cracks;

Measure the radial clearance, and if it exceeds the standard value (usually 0.05-0.15mm), it is judged as failure.

4. Dismantling old bearings
Use a hydraulic puller to support the inner ring of the bearing and apply even tension to pull it out of the shaft. If the interference fit is tight, an induction heater can be used to heat the bearing to 80-100 ℃ before disassembly. It is strictly prohibited to use acetylene flame for direct heating.

5. Install new bearings

Select new bearings that are exactly the same as the prototype number (priority should be given to using SEW original factory or SKF/FAG customized versions);

Heat the new bearing to 80-100 ℃, use a copper rod to gently tap the inner ring and install it in place, ensuring that it is tightly attached to the shaft shoulder without looseness;

During the installation process, avoid foreign objects from entering and keep the environment clean.

6. Lubrication and reset

Add the specified type of lubricating grease from the original factory (such as UNILUB L32), and do not mix different brands or models;

The initial grease injection amount is 30-50% of the bearing chamber volume;
