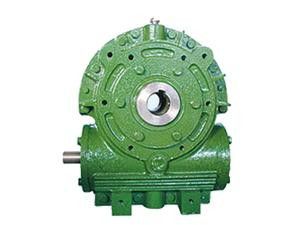

SCWU200 reducer

SCW shaft mounted worm gear reducer

SCW shaft mounted worm reducer (SCW worm gear reducer) (JB/T6387--1992) is directly set on the working machine spindle, including SCwU, SCWS, SCwo

series. Mainly used in metallurgy, mining, lifting, transportation, chemical, construction and other mechanical equipment.

Working conditions: the speed of the worm shaft of the reducer does not exceed 1500 r/min; the working environment temperature is - 40~40 °C. When the working environment temperature is lower than 0 °C, the lubricating oil must be added before starting.

Heat to 0. Above C; the reducer can be operated in both forward and reverse directions.

SCW shaft mounted worm reducer (SCW worm gear reducer) model and marking

1. Model

(1) SCWU type-shaft-mounted cylindrical arc worm reducer under the worm wheel;

(2) A shaft-mounted circular cylindrical worm reducer of SCWS type worm on the side of the worm wheel;

(3) SCWO type - shaft mounted cylindrical arc worm reducer above the worm gear.
