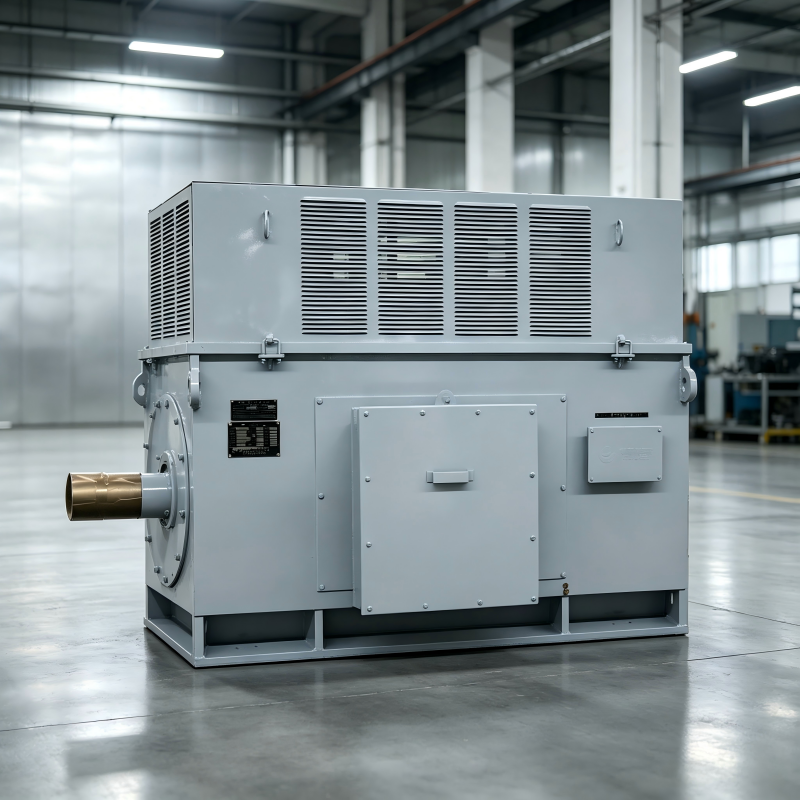

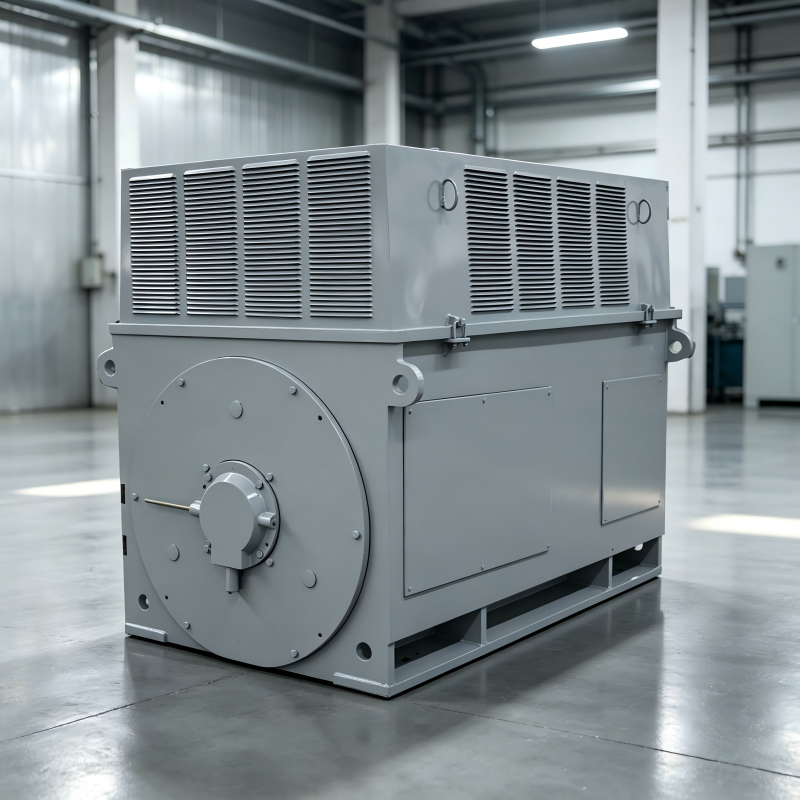

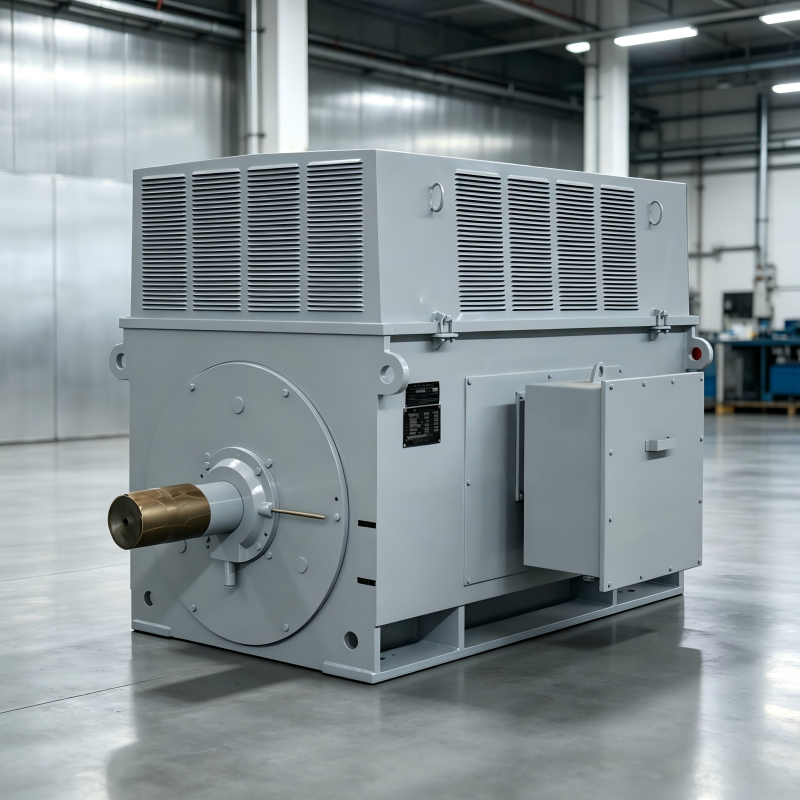

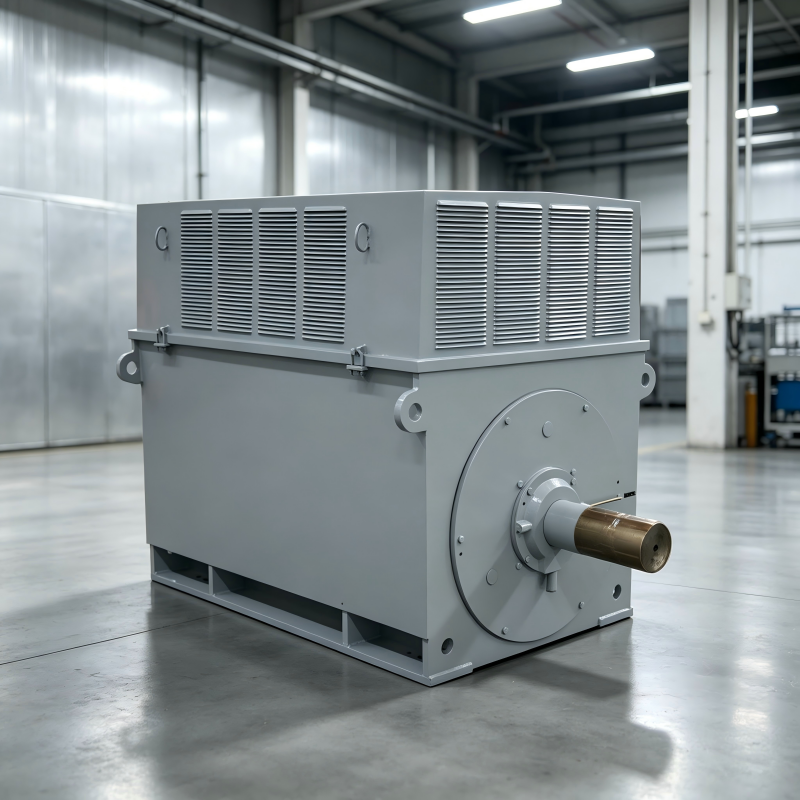

High Voltage Electric Motors of A Series, Voltage 6000V

A Series 6000V high voltage electric motors are three-phase squirrel cage induction motors engineered in accordance with IEC international standards, designed for direct connection to 6kV industrial power grids. This series is developed for heavy-duty continuous operation, featuring compact layout, high operational efficiency and outstanding mechanical stability. As a mature medium high-voltage drive solution, it eliminates the need for extra transformer equipment for 6kV projects, simplifying power distribution layout and cutting overall engineering investment. The product is widely adopted in mining, power generation, water conservancy, chemical, metallurgy and building material industries, delivering stable power for large industrial machinery under long-running working conditions.

Core Technical Parameters

The electromagnetic design of A Series 6000V motors is optimized through finite element simulation. The stator core is stacked with high-grade low-loss silicon steel sheets to reduce iron loss, stray loss and magnetic leakage during continuous operation. The stator windings adopt high-performance electromagnetic wire and go through VPI vacuum pressure impregnation treatment. The integrated solid winding structure greatly improves dielectric strength, corona resistance and thermal aging resistance, effectively resisting voltage fluctuation and impact during frequent startup. The 6kV voltage level achieves a balanced trade-off between current magnitude and insulation requirements, lowering cable current and reducing cable cross-section and line loss compared with low-voltage high-power motors.

The squirrel cage rotor is available in cast aluminum and copper bar versions. Copper bar rotor models feature higher mechanical strength, lower rotor resistance and excellent starting performance. They can produce high starting torque while restraining inrush current, avoiding severe impact to the 6kV power grid. Every rotor assembly undergoes high-precision dynamic balance testing to minimize vibration and noise under full load. The bearing system supports rolling bearings for medium-power models and sliding bearings for large-power specifications. PT100 temperature sensors can be embedded inside stator windings and bearings as optional configuration, transmitting real-time temperature signals to the central control system for over-temperature monitoring and early warning.

Multiple cooling options are available for different working environments. IC411 self-fan cooling is suitable for clean and well-ventilated indoor workshops. IC611 air-to-air closed cooling adopts independent internal air circulation, preventing dust, moisture and corrosive gas from entering the motor core, which fits dusty mines, cement plants and chemical workshops. The welded box frame delivers high rigidity and strong shock resistance, capable of enduring heavy load impact and frequent start-stop cycles. The motor surface can be coated with special anti-corrosion paint for coastal salt fog or corrosive gas environments.

A Series 6000V high voltage motors are commonly used to drive large fans, water pumps, compressors, crushers and belt conveyors. Customization services including reinforced bearing, variable frequency adaptation, explosion-proof structure and special mounting dimensions are available to match various site requirements. Each motor will complete a full set of factory tests before shipment, including insulation resistance test, no-load running test, vibration, noise and power factor inspection. With reliable performance, convenient maintenance and flexible customization capability, A Series 6000V high voltage motors provide a cost-effective high-power driving solution for global industrial customers.
