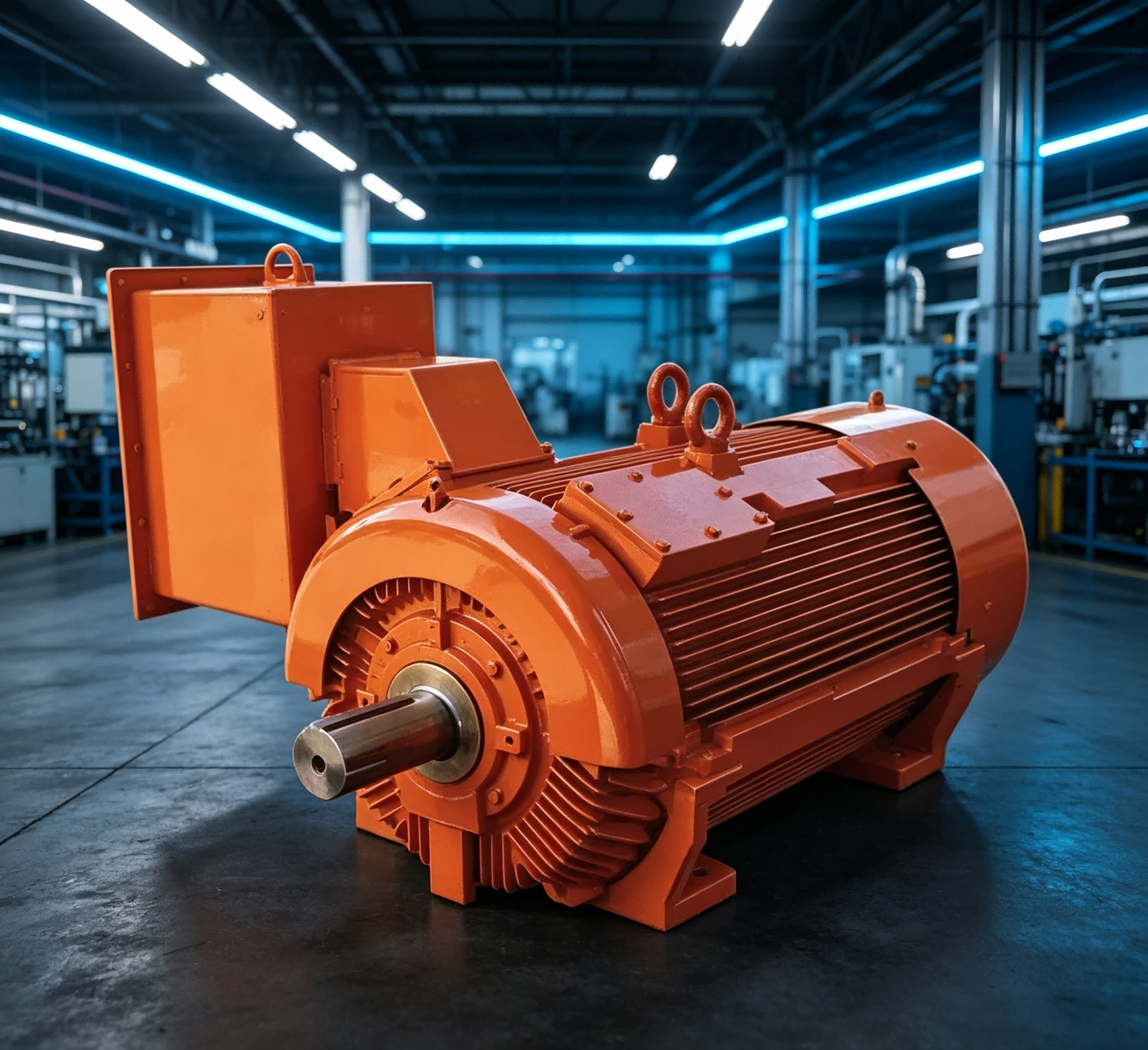

500kW IC411 Rib Cooled High Voltage Electric Motor for Fan Application, 6000V

This 500 kW 6000V rib‑cooled high‑voltage three‑phase squirrel‑cage asynchronous motor is purpose‑built for fan‑driving duties and manufactured in accordance with IEC international standards. Adopting IC411 totally‑enclosed surface rib cooling (TEFC), it removes the requirement for bulky external air‑to‑air heat exchangers used by box‑type YKK motors. The robust compact cast‑iron housing with dense cooling fins delivers high power density and small overall footprint, making it ideal for fan systems inside power plants, cement plants and industrial workshops with limited equipment‑room space. Designed for S1 continuous‑duty operation, the motor can connect directly to a 6 kV power grid and offers stable output for forced‑draft fans, induced‑draft fans and large‑volume process blowers.

Core Technical Parameters

Electromagnetic design is optimized by finite‑element simulation focused on typical fan load characteristics, which feature medium starting torque and long‑time stable running. The stator core is stacked with premium low‑loss silicon‑steel laminations to minimize iron loss, stray loss and magnetic leakage under full‑load and partial‑load fan operating conditions. Stator windings adopt corona‑resistant high‑conductivity copper magnet wire and undergo complete VPI vacuum pressure impregnation treatment. The solid integrated winding structure improves dielectric strength, thermal stability and resistance to electrical aging, capable of enduring grid voltage fluctuation and repeated startup impact in industrial high‑voltage networks. The copper‑bar squirrel‑cage rotor is deployed for this 500 kW rating, providing excellent mechanical strength, low rotor loss and well‑balanced starting performance. Each rotor assembly goes through high‑precision dynamic balance calibration to suppress vibration and noise, which is critical for fan systems sensitive to mechanical oscillation.

Its core advantage lies in the IC411 rib‑cooled enclosed structure. Heat generated inside the motor transfers to the densely arranged external cooling fins of the heavy‑duty cast‑iron frame, and is dissipated by a shaft‑driven external fan. Compared with open‑ventilated IP23 motors, the fully‑enclosed housing stops dust, fibre debris and light corrosive fumes from invading internal windings and iron core. Without top‑mounted heat‑exchanger components, overall dimension and installation height are greatly reduced, saving valuable layout space for fan‑driven equipment rooms.

Bearing configuration is selected to suit fan operating speed. Medium‑speed fan‑oriented variants use heavy‑duty rolling bearings. PT100 temperature sensors can be embedded in stator windings and bearing housings as optional configuration, transmitting real‑time temperature data to the central control system for remote condition monitoring and over‑temperature early warning. Space heater can be fitted to prevent winding condensation when the motor stands idle. For variable‑frequency fan energy‑saving retrofits, IC416 independent external fan cooling can be supplied to guarantee sufficient cooling airflow under low‑speed working conditions. Customization options cover high‑altitude adaptation, damp‑tropical anti‑corrosion coating, modified terminal‑box orientation and double‑shaft extension to satisfy different fan‑system project requirements.

This 500 kW 6 kV rib‑cooled motor is primarily dedicated to fan applications. It drives induced‑draft and forced‑draft fans in thermal power stations, large process blowers in cement and mining plants, and ventilation fans for chemical industrial facilities. It supports both direct‑on‑line startup and high‑voltage soft‑starter configuration according to on‑site grid capacity. Before delivery, each motor completes comprehensive factory acceptance tests including insulation resistance test, high‑voltage withstand test, no‑load running test, vibration, noise and power‑factor inspection. Featuring compact dimension, enclosed protection, reliable fan‑adapted performance and convenient maintenance, this 500 kW IC411 rib‑cooled high‑voltage motor delivers an efficient and proven drive solution for industrial fan systems.
