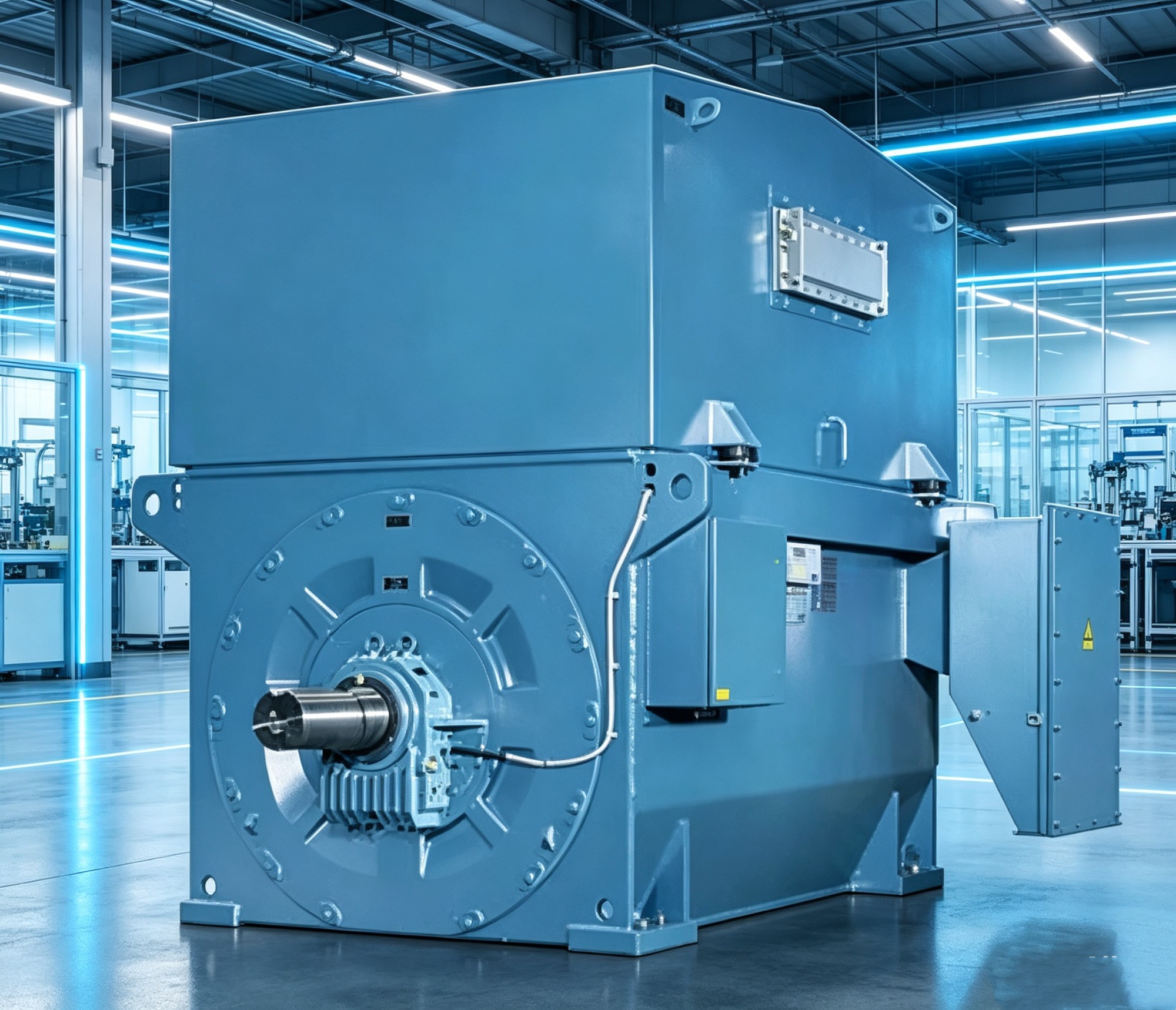

630kW‑1000kW 8‑Pole 3‑Phase High Voltage Induction Motor AMI 450L8A

The ABB AMI 450L8A is a medium‑frame modular high‑voltage squirrel‑cage induction motor built on ABB proven AMI modular platform, covering power output from 630 kW to 1000 kW with 8‑pole configuration. Designed and manufactured complying with IEC and NEMA international standards, this welded‑steel plate motor is engineered for S1 continuous heavy‑duty operation. Standard configuration adopts IC611 air‑to‑air closed cooling and IP55 protection grade. Thanks to its modular mechanical concept, cooling packages, condition‑monitoring sensors and auxiliary assemblies can be flexibly configured for diverse site requirements. It is widely applied in thermal power, water conservancy, cement, mining and petrochemical industries to drive large fans, circulating water pumps and medium‑speed heavy‑duty process equipment.

Core Technical Parameters

Electromagnetic performance is optimised by multi‑working‑point finite‑element simulation, tuned for typical 8‑pole medium‑speed load characteristics of pumps and fans, including long‑term continuous running and frequent partial‑load cycles. The stator core is stacked with premium low‑loss silicon‑steel laminations to minimise iron loss, stray loss and magnetic leakage under both full‑load and partial‑load operating conditions. Stator windings adopt high‑grade corona‑resistant magnet wire and go through complete VPI vacuum‑pressure‑impregnation treatment. Reinforced winding‑end structure enhances mechanical rigidity, dielectric strength and anti‑electrical‑aging capability, withstanding industrial‑grid voltage fluctuations and repeated startup impulse. Within 630‑1000 kW power band, heavy‑duty copper‑bar squirrel‑cage rotor is standard configuration, delivering robust mechanical performance, low rotor losses and stable starting behaviour. Each rotor assembly undergoes multi‑stage high‑precision dynamic‑balance calibration to keep vibration and noise strictly within IEC permissible limits for medium‑speed continuous service.

Welded modular steel‑plate housing is the signature advantage of ABB AMI‑series motors, supporting flexible selection of cooling systems and auxiliary assemblies to match on‑site environment. The AMI 450L8A is normally equipped with IC611 air‑to‑air closed cooling system. Two independent air circuits work inside the motor: internal hot air circulates within sealed frame and transfers heat to ambient outside air through top‑mounted air‑to‑air heat exchanger. IP55 enclosure provides reliable defence against dust ingress and water spray, making it suitable for humid and dusty workshops where open‑ventilated motors cannot operate reliably. For locations with insufficient ambient cooling air, IC81W air‑to‑water cooling can be selected to upgrade heat‑dissipation performance.

Bearing configuration is purpose‑matched for 8‑pole medium‑speed heavy‑duty continuous operation. Heavy‑duty rolling bearings are standard for this frame size; sliding‑bearing arrangement can be supplied for higher‑power end of the range or applications with increased shock‑load. PT100 temperature sensors can be factory‑pre‑embedded in stator windings and bearing housings, transmitting real‑time temperature readings to plant DCS system for remote condition monitoring and over‑temperature protection. Space heater is available as option to prevent winding condensation during motor stand‑by periods. For variable‑frequency energy‑saving retrofits, IC616 cooling variant can be supplied to guarantee adequate cooling airflow under low‑speed operation. Customisation options include ATEX hazardous‑area modification, high‑altitude adaptation, tropical anti‑humidity & anti‑corrosion coating, special terminal‑box layout and double‑shaft extension to satisfy complex project requirements.

Typical driven machinery includes large‑volume process fans, circulating water pumps, induced‑draft fans and heavy‑flow centrifugal pumps. The motor supports direct‑on‑line startup or high‑voltage soft‑starter configuration subject to on‑site grid short‑circuit capacity. Every unit completes comprehensive factory‑acceptance tests before shipment, including insulation‑resistance test, high‑voltage withstand test, no‑load running test, efficiency verification, vibration and noise measurement. Built upon ABB’s mature AMI modular platform, AMI 450L8A features high operational reliability, good spare‑parts interchangeability and low total‑cost‑of‑ownership for mission‑critical medium‑speed heavy‑duty industrial processes.
