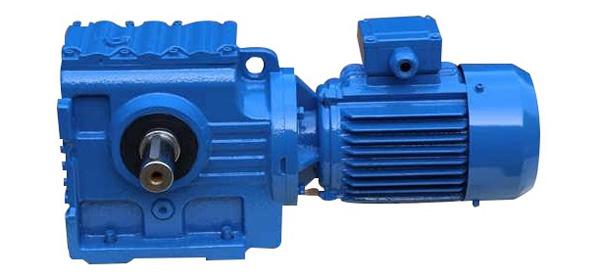

S series helical gear worm reducer

The S series reducer is one of the four major series reducers, known as the S series worm gear reducer because it uses a turbine worm gear to transmit motion and power between two staggered shafts. And the worm gear is evolved from the staggered shaft helical cylindrical gear mechanism, so it is also called the S series gear reducer or the S series helical gear worm gear reducer. With high technological content, it combines helical gears and worm gears for integrated transmission, improving the torque and efficiency of the S series reducer.
Technical parameters of S series helical gear turbine worm reducer:
Power: 0.12KW~22KW;
Torque: 10N · m~4890N · m;
Output speed: 0.12-397r/min.
Structural form of S series helical gear turbine worm reducer:
S-axis extension connection;
SA axis mounted connection;
SF - shaft extension and flange installation;
SAF - shaft mounted, flange mounted.
Performance characteristics of S series helical gear turbine worm reducer:
1. The S series helical gear worm reducer has a large transmission ratio and a compact structure;
2. When meshing, it is in line contact, with strong load-bearing capacity, smooth transmission, and no noise;
3. The S series worm gear reducer has self-locking, which can achieve reverse self-locking and provide safety protection;
4. The S series worm gear reducer has complete specifications, good versatility, and is suitable for various installation methods, with safe, reliable performance and long service life.
S series helical gear worm reducer models: S37, S47, S57, S67, S77, S87, S97, S107.
