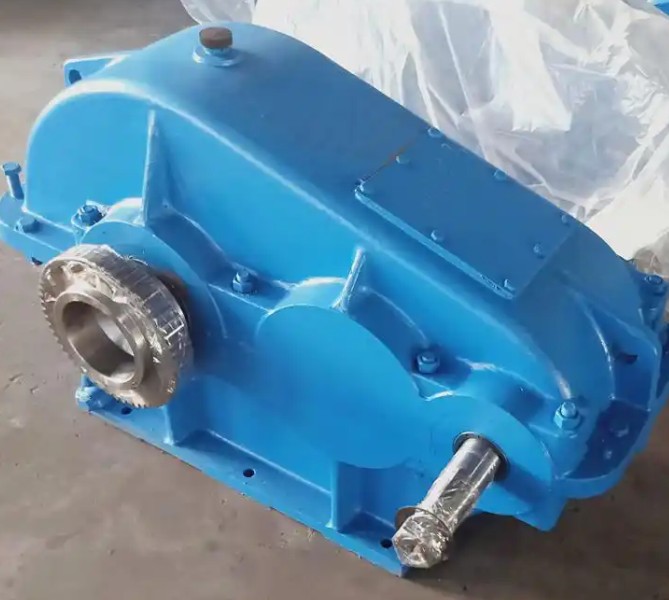

How to avoid humidity having a negative impact on the operation of the ZQ1000-50-48.57-IIICA reducer

The influence of humidity on the operation of ZQ1000-50-48.57-IIICA reducer cannot be ignored. In high temperature and high humidity environments (such as summer in Wuxi), water vapor intrusion is the core risk of lubricating oil emulsification, metal corrosion, seal failure, and reduced transmission accuracy. If not prevented and controlled, the equipment failure rate can be increased by more than twice and the service life can be shortened by more than 50%. As a large cylindrical gear reducer, this model is commonly used in heavy-duty transmission systems, and its stable operation directly affects the continuity of the entire production line. To effectively avoid the negative impact of humidity, a systematic approach should be taken from five dimensions: sealing protection, material adaptation, lubrication management, environmental control, and maintenance strategies.

1、 Strengthen the sealing structure to block the path of water vapor intrusion
Sealing is the first line of defense against moisture and needs to be upgraded and optimized for critical areas

Upgrade the sealing of the shaft end and joint surface

Replace the original nitrile rubber (NBR) oil seal with a more water-resistant fluororubber (FKM) or ethylene propylene diene monomer (EPDM) oil seal, which improves its water expansion resistance by more than 50%;

The input/output shaft end adopts a triple protection structure of "skeleton oil seal+labyrinth seal+dust ring", and is filled with extreme pressure grease to form a dynamic sealing barrier inside;

Apply oil resistant sealant (such as polytetrafluoroethylene adhesive) to the joint surface of the box, and install an O-ring to achieve dual sealing.

Optimize the moisture resistance of the ventilation system

Replace the ordinary breathable cap with a rainproof breathable cap with a waterproof filter element to prevent rainwater and moisture from entering the box through respiration;

In high humidity environments, a breathing valve with built-in desiccant can be installed, and the color of the desiccant should be checked regularly (turning red indicates failure) to ensure that the air inside the box is dry.
