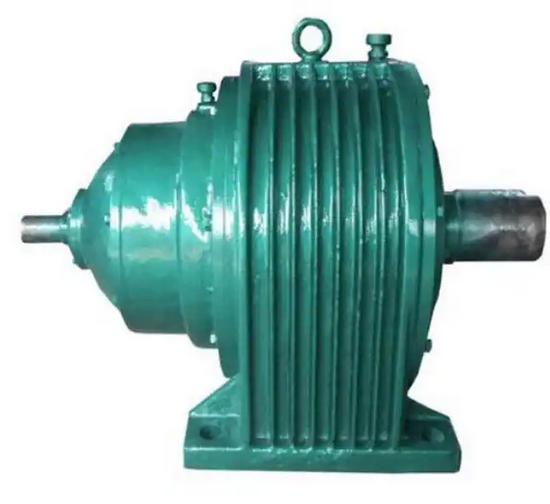

What is the most easily damaged component of NGW63-50 planetary gearbox

The most easily damaged components of the NGW63-50 planetary gearbox are the bearings, especially the planetary carrier support bearings, input shaft support bearings, and sun gear support bearings. These components bear complex radial and axial loads during long-term high load operation and are the core components with the highest failure rate.
1、 Why are bearings the most susceptible to damage?

Fatigue damage under high load conditions
NGW63-50 is commonly used in medium power transmission systems, with an input speed of up to 1500r/min and a large output torque. Under continuous alternating loads, bearings are prone to microcracks on the raceway and rolling element surfaces, ultimately leading to peeling or pitting.

The problem of axial force concentration is prominent
Especially when installed vertically or affected by external axial forces, the planetary carrier support bearings need to bear additional weight such as drums and steel wires, and the axial load far exceeds the design expectations, accelerating fatigue failure.

Poor lubrication triggers a chain reaction
If the selection of lubricating oil is improper, the replacement is not timely, or the seal fails, impurities will invade, which will significantly increase bearing friction and temperature rise, causing dry wear, corrosion, and even "locking".

Assembly accuracy directly affects lifespan
If there is a misalignment, excessive preload, or improper clearance adjustment during the installation of bearings, it can lead to uneven force distribution, local overload, and shorten the service life by more than 50%.

2、 Other vulnerable components and their causes
3、 How to extend the lifespan of critical components

Choose high-precision bearings: It is recommended to use P5 grade or above precision rolling bearings to improve the ability to resist eccentric loads.

Optimize lubrication management: Use specialized planetary gearbox lubricating oil, regularly check oil quality, and establish a "vibration temperature oil quality" integrated monitoring mechanism.

Standardize assembly process: Use professional centering instruments for calibration, strictly control the meshing clearance and bolt tightening torque.

Strengthen environmental protection: Install customized sealing solutions in dusty and humid environments to prevent pollutants from entering.
