Structure and Performance Characteristics of WPWEDK100-155-1.5KW Worm Gear Reducer

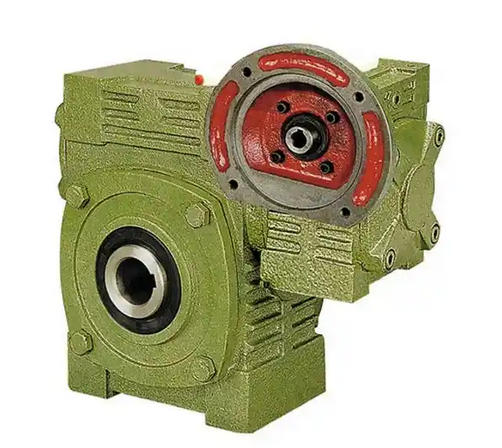

WPWEDK100-155-1.5KW worm gear reducer is one of the WP series reducers. The following is its related introduction:

1. Basic parameters: "WPWEDK" in the model indicates that the type of reducer is a worm gear reducer, which belongs to the two-stage combination reducer in the WP series; '100' and '155' may represent different specifications and size parameters respectively; 1.5KW "is the input power of the gearbox. The reduction ratio is usually between 200-900 when using a two-stage transmission.

2. Structural features:

(1) Box structure: The box is an integral structure with a beautiful and elegant appearance and good rigidity. There are two types of box types: basic and universal. The basic model has a bottom board and comes in two types of structures: vertical or horizontal; The universal type is a rectangular prism with multiple fixed screw holes for flexible installation.

There are two types of input shaft connection methods: basic type and motor flange. The basic type includes single input shaft and double input shaft; There are two types of output shaft structures: basic type and hollow output shaft. The basic type is further divided into single output shaft and double output shaft. The positions and directions of the output and input axes are diverse and can be selected according to actual needs.

3. Performance characteristics: Smooth transmission, low vibration, impact, and noise, large reduction ratio, wide versatility, and can be used in conjunction with various mechanical equipment. Most models of reducers have good self-locking properties, which can save braking devices for mechanical equipment with braking requirements. However, the meshing friction loss between the worm gear teeth and the worm gear tooth surface is relatively large, the transmission efficiency is lower than that of gears, and it is prone to heating, requiring higher lubrication and cooling requirements.
