The lubrication system of the high-power B3SH7-20-B gear reducer normally has the following characteristics and components: Lubrication method: The selection depends on the peripheral speed of gears. Oil bath lubrication can be adopted when the gear peripheral speed v ≤ 12 m/s. In this mode, gears are submerged in oil. The rotating gears carry oil to the meshing zone for lubrication; meanwhile,

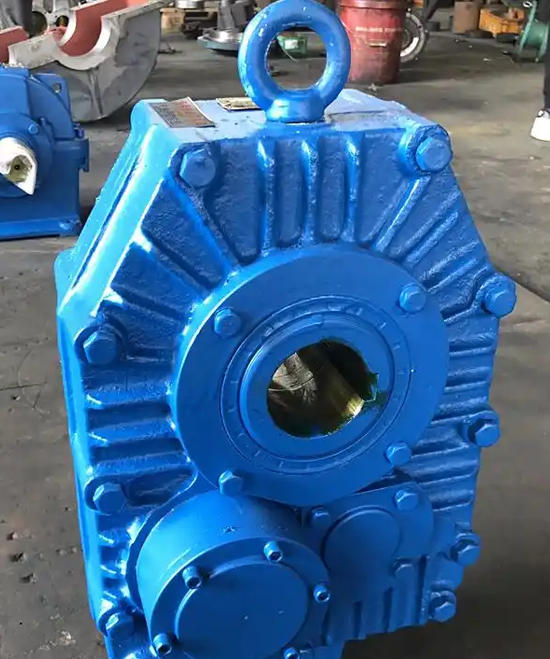

1. Preparation Tools and equipment: Prepare vibration analyzer, trial weights of various specifications, electronic phase meter, spanners, marking pens, lockout tagout devices and other supplies. Safety precautions: Shut down the unit and cut off power supply, implement lockout and tagout procedures. Do not start operation until the equipment comes to a complete standstill. Equipment inspection
When fitting a new seal to the WPX147-15-B worm gear reducer, follow the precautions listed below: 1. Pre-installation preparations Verify equipment condition: Confirm the reducer is fully shut down, isolate the power supply, and fit warning tags. This prevents safety hazards triggered by accidental equipment startup during seal fitting work. Inspect seals: Thoroughly examine the new seals fo

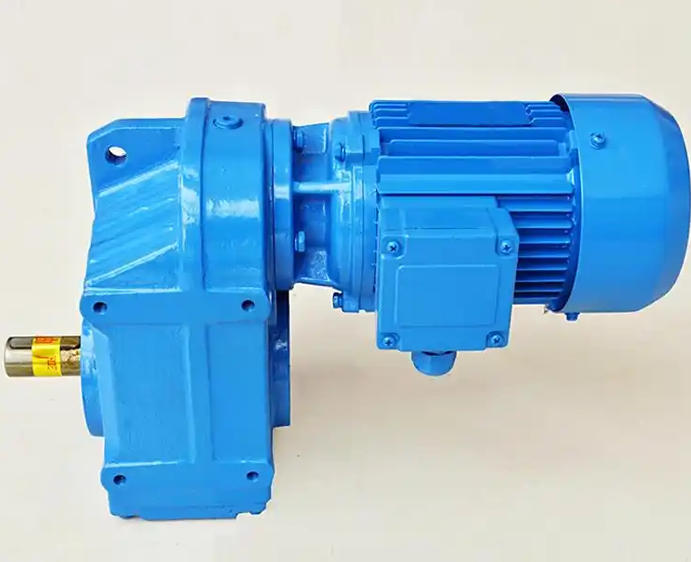

Below are the key precautions for bearing installation of the F67-66.13-2.2KW reducer, summarized based on installation specifications and common faults: ## 1. Pre-installation Preparation ### Cleaning and Inspection Clean bearings and shaft journals with refined kerosene to remove metal debris. For sealed bearings, only wipe off surface anti-rust oil. Check the diameter tolerance of sha

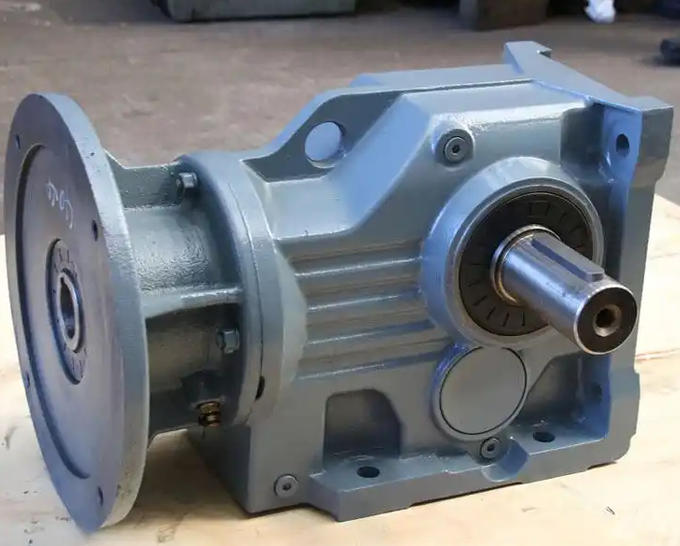

This K-series helical-bevel gear reducer is matched with an 18.5 kW variable frequency motor. It features a reduction ratio of 42.33, horizontal mounting configuration and an output shaft orientation of 270°. To assess the stability of its operating conditions, evaluations can be carried out from three aspects: operational status observation, parameter data acquisition and fault feature identifica

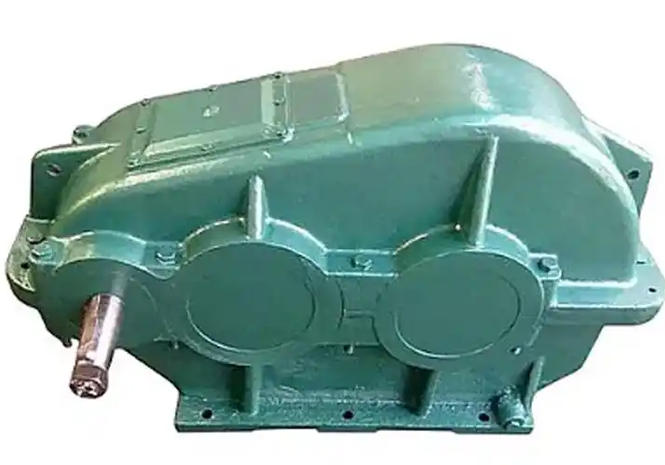

Temperature rise and temperature control for the ZQ350-31.5-III gear reducer during trial operation shall comply with dual criteria: ambient temperature reference, temperature rise limit and maximum temperature limit. Specific requirements are specified below: 1. Temperature rise limit (core control parameter) (1) No-load trial operation: The housing temperature rise shall be ≤25 ℃, and the be
The following covers key precautions for installing bearings on the F67-66.13-2.2KW gear reducer, with a comprehensive explanation based on installation specifications and typical field issues: 1. Pre-installation Preparation Cleaning and Inspection Clean bearings and shaft journals using refined kerosene to remove all metallic debris. For sealed bearings, only wipe the surface with anti-rust
According to the naming convention of worm gear reducers, each digit in WS180-37-11 corresponds to a core technical parameter. WS180 stands for the center distance of 180 mm, which refers to the distance between the worm axis and the worm wheel axis. As a fundamental indicator, center distance directly determines the overall dimension and load capacity of the reducer. The number 37 in the model
