Characteristics and advantages of pinwheel cycloid gear reducer oil pump

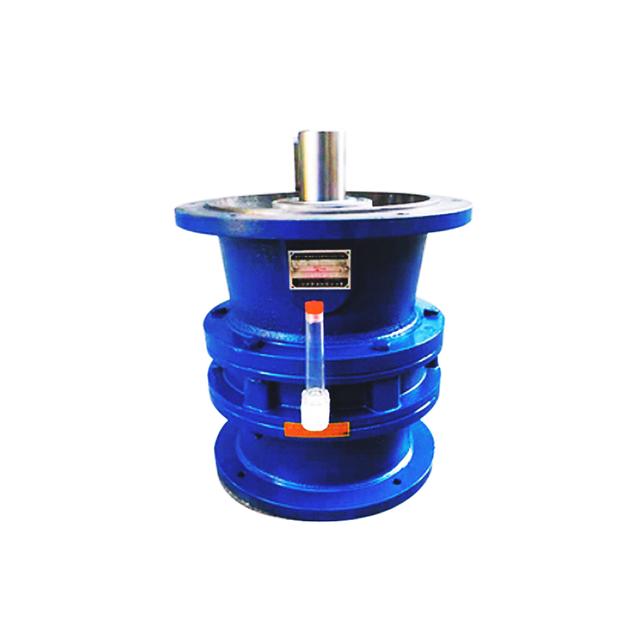

Vertical cycloidal gear reducer is an efficient reducer with stable operation and high transmission accuracy, widely used in various mechanical transmission systems. The installation method of the oil pump is crucial for the normal operation of the gearbox. This article will introduce the installation method and precautions for the oil pump of a vertical cycloidal pinwheel reducer.

1、 Selection of oil pump

The oil pump used in vertical cycloidal gear reducers is usually a gear oil pump or a blade oil pump. The selection of which oil pump should be based on factors such as the model, power, transmission speed, and usage requirements of the reducer.

2、 Installation steps of oil pump

1. Install the oil pump base on the foundation, ensuring that the base is level and free from obvious shaking.

2. Align the output shaft of the gearbox with the input shaft of the oil pump, ensuring that the shaft center is aligned and the axial clearance meets the requirements.

3. Connect the inlet and outlet of the oil pump to the external pipeline to ensure good sealing and no leakage.

4. Check and adjust the position and direction of the oil pump according to the prescribed procedure to ensure its normal operation.

3、 Precautions

During the installation process, the gearbox and oil pump should be kept clean to prevent impurities and dirt from entering the system.

The output shaft of the reducer should be parallel to the input shaft of the oil pump, and the axial clearance should meet the requirements.

3. The inlet and outlet of the oil pump should be connected reliably, sealed well, and have no leakage.

During the debugging process, the rotation direction of the oil pump should be checked to ensure its normal operation.

4、 The installation method of the oil pump for the vertical cycloidal pinwheel reducer is crucial for the normal operation of the reducer. During the installation process, follow the prescribed steps and pay attention to keeping the gearbox and oil pump clean. During the debugging process, the rotation direction of the oil pump should be checked to ensure its normal operation. Only in this way can the normal operation of the vertical cycloidal pinwheel reducer be ensured and the efficiency of the mechanical transmission system be improved.
