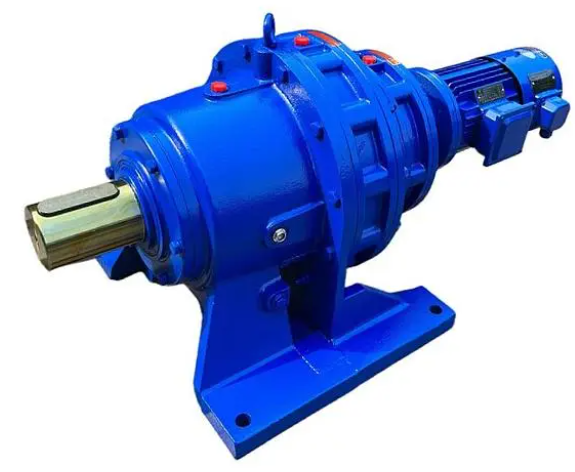

XWD8135-59-3KW installation size 145x290 8000 series cycloidal pinwheel reducer

In modern industrial transmission systems, cycloidal pinwheel reducers are widely used due to their unique performance advantages. Among them, the XWD8135-59-3KW cycloidal pinwheel reducer, especially its 8000 series, has become the first choice for many engineers and technicians due to its compact installation size (145x290) and efficient transmission efficiency. This article will provide a detailed analysis of the installation dimensions, structural characteristics, working principles, application areas, and maintenance of the XWD8135-59-3KW 8000 series cycloidal pinwheel reducer.
1、 Installation dimensions and structural characteristics
The installation size (145x290) of XWD8135-59-3KW cycloidal pinwheel reducer means that the reducer has fully considered space utilization in its design. The compact body design allows it to easily adapt to various space limitations during installation, while also reducing the overall space occupied by the transmission system.
In terms of structural characteristics, the reducer adopts advanced cycloidal pinwheel transmission technology. Cycloid pinwheel transmission has the advantages of high transmission ratio, strong load-bearing capacity, smooth transmission, and low noise. In addition, the internal structure design of the reducer is reasonable, and key components such as gears and bearings are made of high-strength and wear-resistant materials, ensuring the long-term stable operation of the reducer.
2、 Working principle
The working principle of XWD8135-59-3KW cycloidal pinwheel reducer is based on the cycloidal pinwheel transmission principle. When the motor drives the input shaft to rotate, deceleration and torque transmission are achieved through the relative motion between the cycloidal pinwheel and the output shaft. During this process, the unique tooth profile design of the cycloidal pinwheel greatly reduces the friction and wear generated during transmission, thereby improving the transmission efficiency and lifespan of the gearbox.
3、 Application Fields
Due to its compact structure, high transmission efficiency, and strong load-bearing capacity, the XWD8135-59-3KW cycloidal pinwheel reducer is widely used in various industrial transmission systems. For example, in industries such as metallurgy, mining, chemical, power, and building materials, this reducer is used to drive various mechanical equipment such as conveyors, crushers, mills, fans, etc. At the same time, this reducer also plays an important role in light industries such as textiles, printing, and food.
4、 Maintenance and upkeep
In order to ensure the long-term stable operation of the XWD8135-59-3KW cycloidal pinwheel reducer, regular maintenance is required. Here are some key maintenance measures:
1. Regularly check the oil level and quality of the gearbox to ensure that the lubricating oil is clean and free of impurities. If necessary, the lubricating oil should be replaced in a timely manner.
2. Check whether the fasteners of the reducer are loose or damaged, and promptly handle any abnormalities.
3. Check the wear of key components such as bearings and gears in the reducer, and replace them promptly if there is severe wear.
4. During use, attention should be paid to the operating temperature of the gearbox to avoid damage caused by excessive temperature.
During the shutdown period, the gearbox should be cleaned and rust proofed to extend its service life.
