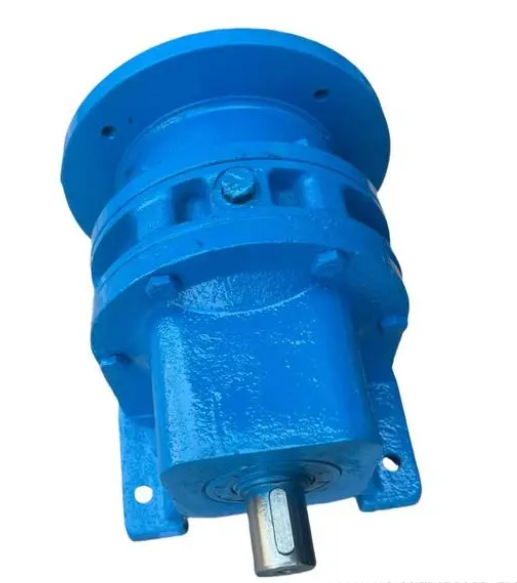

b Cycloidal mixing transmission reducer BLD3-35-7.5KW vertical low-speed gearbox

In the modern industrial field, transmission equipment plays a crucial role, not only affecting the efficiency of production lines, but also directly related to product quality and the economic benefits of enterprises. Among numerous transmission devices, the cycloidal stirring transmission reducer has been widely used in industries such as chemical, food, and pharmaceutical due to its unique advantages. This article will provide a detailed analysis of the BLD3-35-7.5KW vertical low-speed gearbox, exploring its structural characteristics, working principles, application advantages, and maintenance aspects.
1、 Structural characteristics of cycloidal stirring transmission reducer
The BLD3-35-7.5KW vertical low-speed gearbox, as a type of cycloidal stirring transmission reducer, has a compact structural design and efficient power transmission performance. Its main structure includes cycloidal pinwheel, planetary gear system, output shaft, housing, and lubrication system. The cycloidal pinwheel is the core component of this reducer, which converts the high-speed rotation of the motor into low-speed high torque rotation of the output shaft through a unique curved trajectory motion. The planetary gear system achieves smooth transmission and distribution of power through the cooperation of multiple planetary gears. The output shaft is directly connected to the mixing equipment to drive the mixer for mixing operations. The box is made of high-quality materials, with good sealing and heat dissipation performance, ensuring that the reducer can still operate stably in harsh environments.
2、 Working principle of cycloidal stirring transmission reducer
The working principle of the BLD3-35-7.5KW vertical low-speed gearbox is mainly based on the curved trajectory motion of the cycloidal pinwheel and the coordination of the planetary gear system. When the motor starts, the cycloidal pinwheel begins to rotate under the drive of the motor, converting high-speed rotation into low-speed high torque rotation through its unique curved trajectory. At the same time, multiple planetary gears in the planetary gear system revolve and rotate under the drive of the central wheel, achieving smooth transmission and distribution of power. Finally, the power is transmitted to the mixing equipment through the output shaft, driving the mixer to perform mixing operations.
3、 Application advantages of cycloidal stirring transmission reducer
1. Low speed and high torque: The cycloidal mixing transmission reducer achieves low-speed and high torque output through the curved trajectory of the cycloidal pinwheel, meeting the power requirements of the mixing equipment.
2. Smooth transmission: The combination of planetary gear systems makes power transmission smoother, reduces equipment vibration and noise, and improves the comfort of the production environment.
3. Compact structure: The BLD3-35-7.5KW vertical low-speed gearbox adopts a compact structural design, with a small footprint and easy installation and layout.
4. Efficient and energy-saving: This reducer has high transmission efficiency, which can reduce energy consumption and lower the operating costs of enterprises.
5. Wide application: The cycloidal mixing transmission reducer is suitable for various mixing equipment, such as chemical mixing, food mixing, pharmaceutical mixing, etc., and has a wide range of application prospects.
