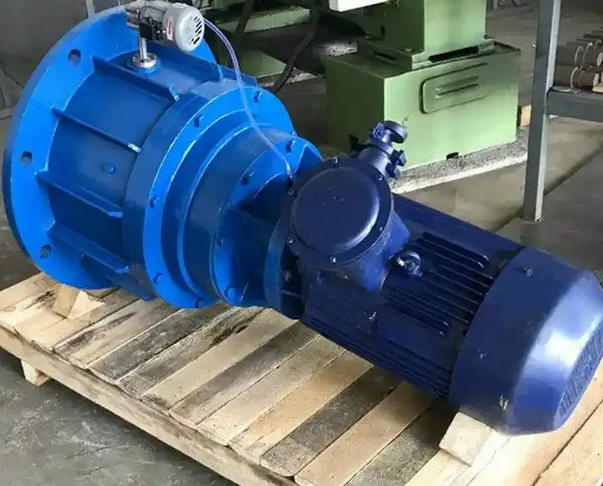

What phenomena can occur when NGW-L72-87-22KW planetary gears are assembled unevenly

When the NGW-L72-87-22KW planetary gear is unevenly assembled, the most typical fault phenomenon is the imbalance of load distribution, which leads to periodic vibration, abnormal noise, and local temperature rise during equipment operation. In severe cases, it can cause early bearing failure or gear tooth breakage. This issue is particularly prominent under heavy load and continuous operation conditions, and needs to be identified and addressed in a timely manner.
1、 Typical abnormal behavior during operation

Periodic vibration and impact
Uneven assembly of planetary gears can lead to uneven force distribution among them, with some teeth bearing overload and producing rhythmic vibrations during operation, especially at low speeds and high torque outputs. The vibration frequency is consistent with the orbital frequency of the planetary gear, and the characteristic signal can be captured by a vibration detector.

Abnormal noise: low-frequency roar or high-frequency whistling

If the meshing clearance is uneven, it is often accompanied by a "click" or "clack" sound, which increases with changes in load;

If the bearing is not tightened properly or there is axial clearance deviation, sharp whistling may occur, which will intensify with the increase of speed.

Local abnormal temperature rise
Due to increased friction, the temperature of planetary gears and their supporting bearings with biased loads is significantly higher than other parts. Infrared temperature measurement can reveal a temperature difference of more than 10 ℃, indicating the risk of local overheating.

Output shaft jumping or shaking
When the planetary carrier drives the unevenly assembled planetary gears to rotate, the dynamic balance is disrupted, resulting in radial jumping at the output end, which affects the smoothness of the connected equipment.
2、 Chain damage to core components

Accelerated wear of bearings
The planetary gear bearings subjected to force imbalance bear additional radial and axial forces, and the raceway is prone to peeling and indentation, greatly reducing its service life. Actual test data shows that when the assembly deviation is 0.03mm, the fatigue life of the bearing can be reduced by more than 40%.

Uneven wear and tooth breakage of gears
Uneven assembly leads to long-term overload of the single-sided planetary gear tooth surface, excessive contact stress, causing pitting, peeling, and even gear tooth fracture. Broken teeth fragments may enter the lubrication system, causing secondary damage.

Floating mechanism failure
The NGW series is often designed with a sun gear or planetary carrier floating structure for automatic load balancing. However, if the assembly error is too large and exceeds the floating compensation range (usually ± 0.1mm), the load balancing function will fail, exacerbating the unbalanced load.

Seal wear and oil leakage
The increased vibration of the output shaft leads to uneven wear of the oil seal lip, resulting in lubricating oil leakage after seal failure, further causing bearing oil shortage and dry wear, forming a vicious cycle.
